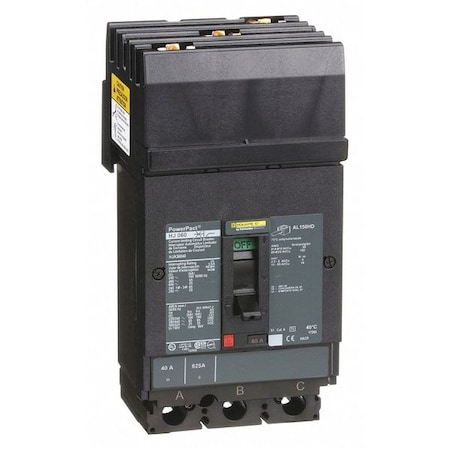

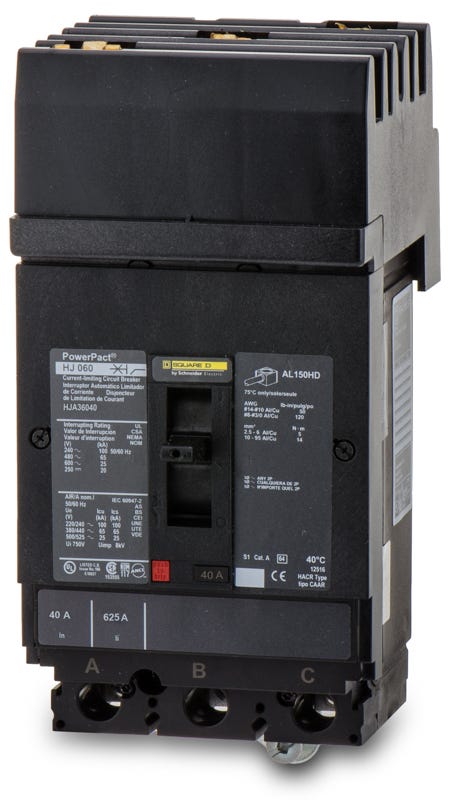

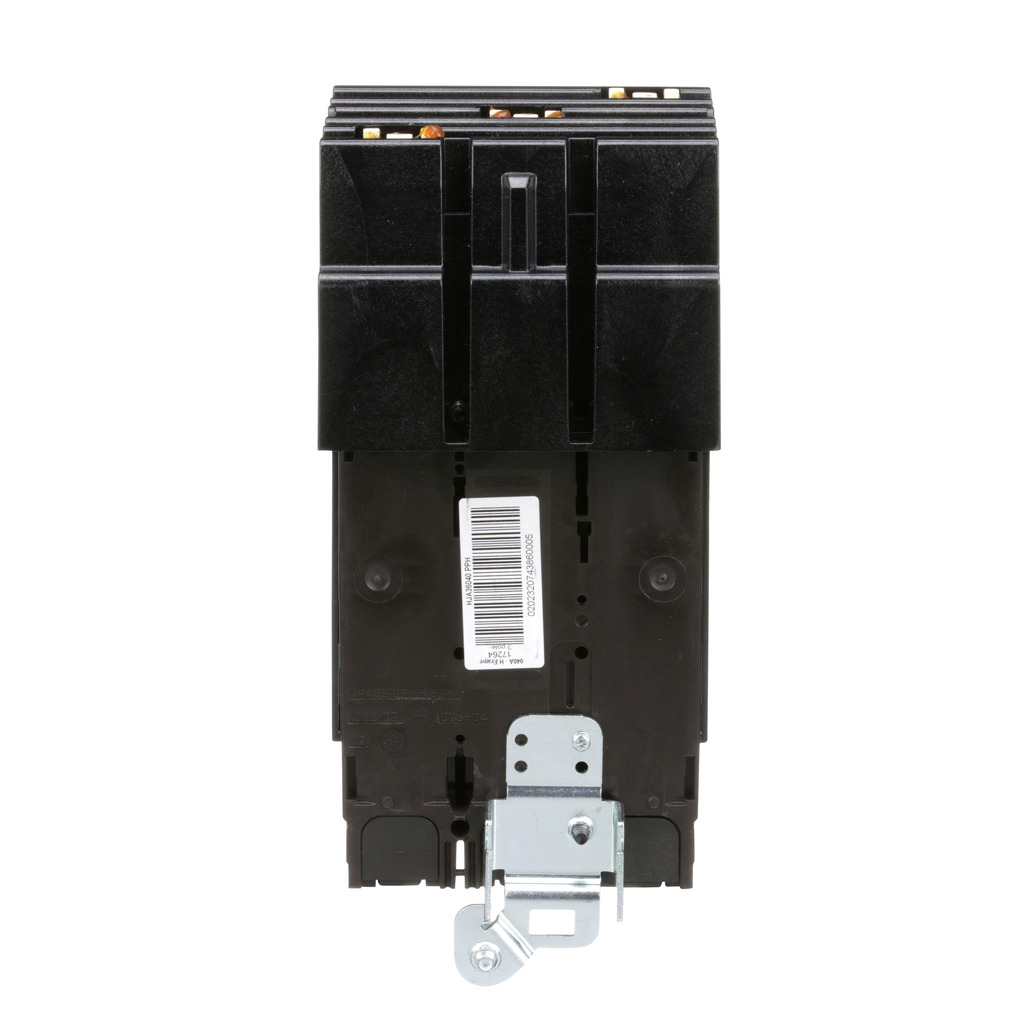

Square D HJA36040

B00KXK0MA0

HJA36040

HJA36040zoom

Attributes

Key Value
[Ics] Rated Service Bre.100 kA 220/240 V AC 50/.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating600VAC
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage40A
Amperage Rating40
Amps40
ApplicationHACR rated Applications.
ApprovalUL Listed, CSA Certified
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity100 kA 240 V AC 50/60 H.
Breaking Capacity CodeJ
California Proposition .DINP, which is known to.
Catalog NumberHJA36040
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI2206027EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionI-LINE CONNECTION (ON E.
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginMX - Mexico, Mexico
Current Rating40-40A, 40 A
Depth86 mm
Device Applicationdistribution
DisplayHJA36040 Circuit breake.
ECCNEAR99
Electrical ConnectionI-Line connection, line.
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant with Exemptio.
Family NamePowerPact H Family
FeaturesMercury Free; PVC Free
FrameH-Frame
Frame SizeH
Frame TypeH Frame, H-Frame
Frequency Rating50/60HZ
Gtin785901506928
Height163 mm, 4.5 in., 6.42
High Amp Trip Setting850 A
Interrupt Rating100 kA at 220/240V AC, .
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemMolded Case Circuit Bre.
Item TypeMolded Case Circuit Bre.
Length16 mm, 4.8 IN
Line Rated Current40-40 A
Local Signallingswitched off (OFF) 1 tr.
Made in USANo
Magnetic Hold Current400 A
Magnetic Tripping Curre.850-850 A
ManufacturerSchneider Electric
Max. AIR Rating100 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height4.5 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Mounting TypePlug-On, I-Line
MpnHJA36040
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles3-Pole
Number of Poles3
Number Of Slots2 auxiliary switch OF p.
Operating Temperature-13F AND 158F (-25 C AN.
Package Quantity1
Phase3
Phase ConnectionABC
Poles3
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.3t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHJA, PowerPact H-Frame .
Special FeaturesI-LINE PLUG-ON
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionI-Line, Lug
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip RangeHOLD: 400A - TRIP: 850A
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
TypeThermal/Magnetic
UNSPSC39121616
Upc785901506928
UPC785901506928
UPC Code785901506928
Utilisation Categorycategory A
Voltage600
Voltage Rating600 V, 600 VAC/250 VDC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width4.09, 104 mm, 104 in.
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG8PLM1.4860755167SQUARE D1.4860755 @ 1
simplybreakers.comHJA36040899.991In StockSchneider Electric899.99 @ 1
thumbzoomsuperbreakers.comHJA36040915.01In StockSquare D915.0 @ 1
standardelectricsupply.com11923731074.51In StockSquare D1074.5 @ 1
thumbzoomgordonelectricsupply.comHJA360401135.016710SQUARE D1135.0 @ 1
thumbzoommayerelectric.comSQDHJA360401175.261In StockSQUARE D4.841175.26 @ 1
thumbzoomNewark20K01981215.621In StockSQUARE D BY SCHNEIDER ELECTRIC1215.62 @ 1
thumbzoomRadwellHJA360401250.011SCHNEIDER ELECTRIC SQUARE D1250.0 @ 1
thumbzoomZoroG05678781415.9916710Square D5.71415.99 @ 1
steinerelectric.com2344341424.39167Square D?1424.39 @ 1
us.rs-online.com709531841456.05167Square D1456.05 @ 1
Graybar250450161715.515212Square D (Schneider Electric)1715.5152 @ 1
thumbzoomcrescentelectric.com1525222083.93167Square D by Schneider Electric2083.93 @ 1
thumbzoomsustainablesupply.comC30463592202.01167Square D5.72202.01 @ 1
