- mpnUCFL209-26
- brandname: TRITAN
- manufacturername: TRITAN

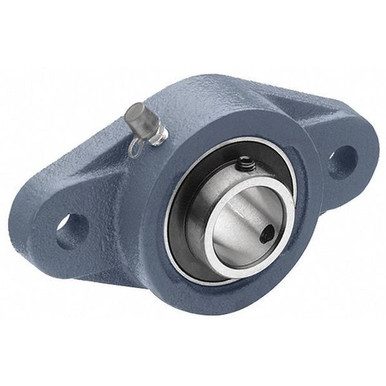

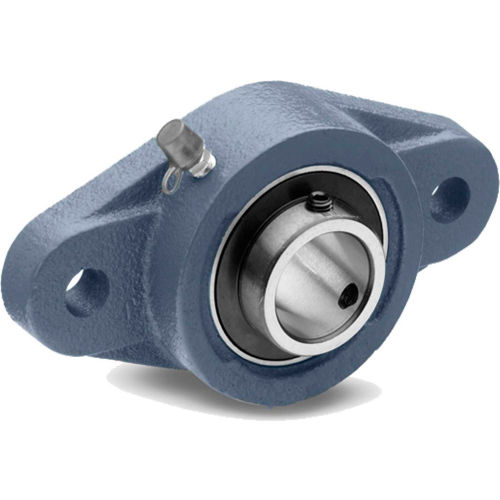

UCFL209-26 - TRITAN - Factory New!
- Brand: Tritan
- PartNumber: UCFL209-26
- PackageQuantity: 1
- Manufacturer: TRITAN
- Label: TRITAN
Attributes
| Key | Value |
|---|
| Bearing Housing Materia. | Cast Iron |
| Bearing Insert Material | 52100 Steel, Alloy Steel |
| Bearing Insert Type | Ball, Radial Ball |
| Bearing Lubrication | Shell Alvania RL2 or NL. |
| Bearing Material Grade | 52100 |
| Bolt Hole Center-to-Cen. | 5.8268" |
| Bolt Size | 5/8 in |
| Bore Dia. | 1.625" |
| Bore Diameter | 1 5/8 in |
| Bore Type | Cylindrical |
| Brand | Tritan |
| Closure | Double Sealed |
| Color | Grey |
| Current Stock | 20 |
| Dynamic Load Capacity | 7,103.96 lbf, 7159 Lbf |
| Features | Anti-Rotation Device, C. |
| Finish | Painted |
| Flange Thickness | 0.593 in |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Rhombus |
| Included Bearing | UC209-26 |
| International Shipping | No |
| Item | 2 Bolt Flange Bearing, . |
| Locking Type | Set Screw |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Mount Hole Center-to-Ce. | 5.828 in, 5 53/64 in |
| Mount Hole Size | 3/4 in |
| Mounting Bolt Size | 5/8 in |
| Mpn | UCFL209-26 |
| Number of Mount Holes | 2 |
| Overall Height | 2.062 in, 52.2 mm |
| Overall Length | 7.406 in, 188 mm |
| Overall Width | 4.25 in, 108 mm |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Series | UCFL |
| Shaft Locking Type | Set Screw, Set Screws |
| SKU | ZO-G9447234 |
| Standards | ISO, AFBMA, AFBMA, ISO |
| Static Load Capacity | 4675 Lbf |
| Static Radial Load Capa. | 4,631.06 lbf |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Temp. Range | -4 to +248? F |
| UPC | 888569051455 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G9447234 | 38.59 | 1 | 16 | | Tritan | 3.97 | 38.59 @ 1 |
 | simsupply.com | ZO-G9447234 | 54.43 | 1 | 20 | | Tritan | | 54.43 @ 1 |
 | Global Industrial | WBB1873307 | 69.12 | 1 | In Stock | | Tritan | | 69.12 @ 1 |
| grainger.ca | WWG36UY83 | 87.46688106 | 1 | In Stock | | TRITAN | 3.965 | 87.46688106 @ 1 |
 | Raptor Supplies | AH7JZJ | 118.5620085 | 1 | In Stock | | TRITAN | | 118.5620085 @ 1 |
