Tritan UCFL209-27

B07DPJ6SPJ

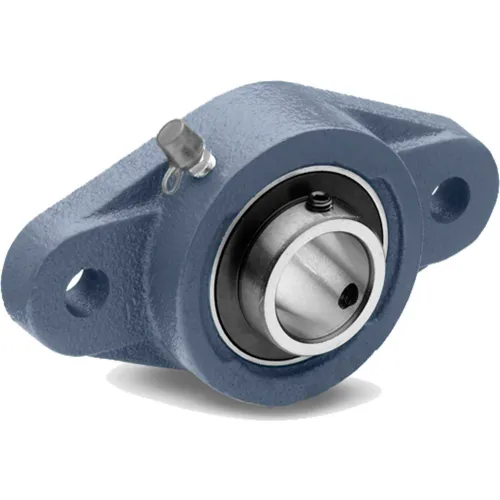

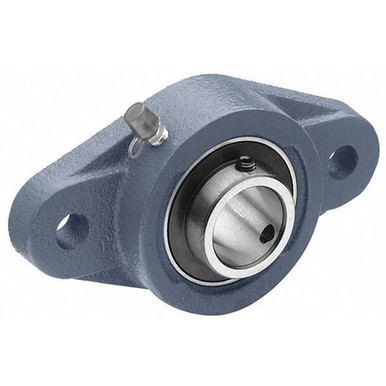

Tritan, UCFL209-27, Flange Mount Bearing, 2 Bolt Flange, Set Screw Locking, Bore 42.8625 mm

Tritan, UCFL209-27, Flange Mount Bearing, 2 Bolt Flange, Set Screw Locking, Bore 42.8625 mmzoom

Attributes

Key Value
Bearing Housing Materia.Cast Iron
Bearing Insert Material52100 Steel
Bearing Insert TypeBall
Bearing LubricationShell Alvania RL2 or NL.
Bolt Hole Center-to-Cen.5.8268"
Bolt Size5/8 in
Bore Dia.1.6875"
Bore Diameter1 11/16 in
BrandTritan
ColorGrey
Current Stock3
Dynamic Load Capacity7159 Lbf
FinishPainted
Housing MaterialCast Iron
International ShippingNo
Item2 Bolt Flange Bearing
Lead TimeExpected to ship in 1-2.
Locking TypeSet Screw
Mount Hole Center-to-Ce.5 53/64 in
Mount Hole Size3/4 in
Mounting Bolt Size5/8 in
MpnUCFL209-27
Overall Height52.2 mm
Overall Length188 mm
Overall Width108 mm
SeriesUCFL
Shaft Locking TypeSet Screw
SKUZO-G9447243
StandardsAFBMA, ISO
Static Load Capacity4675 Lbf
SubCategoryPower Transmission
Temp. Range-4 to +248? F
UPC888569051462

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG944724337.1511Tritan3.9537.15 @ 1
thumbzoomsimsupply.comZO-G944724354.4313Tritan54.43 @ 1
thumbzoomGlobal IndustrialWBB187326169.121In StockTritan69.12 @ 1
thumbzoomRaptor SuppliesAH7JZK116.2937881In StockTRITAN116.293788 @ 1
