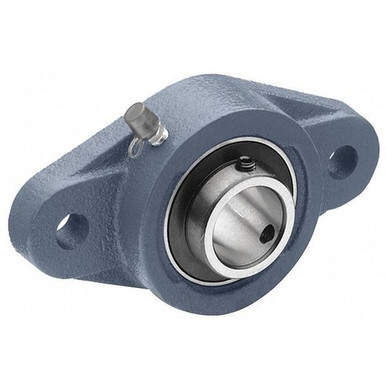

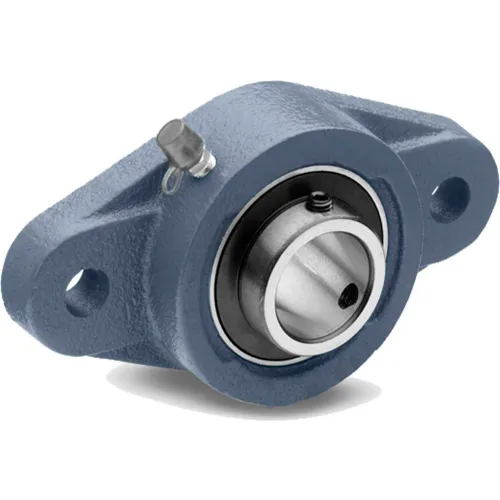

Tritan UCFL209-28

mpnUCFL209-28
brandname: TRITAN
manufacturername: TRITAN

UCFL209-28 - TRITAN - Factory New!

UCFL209-28 - TRITAN - Factory New!

zoom

Brand: Tritan
PartNumber: UCFL209-28
PackageQuantity: 1
Manufacturer: TRITAN
Label: TRITAN

Attributes

Key	Value
Bearing Housing Materia.	Cast Iron
Bearing Insert Material	52100 Chrome Steel
Bearing Insert Type	Ball
Bearing Lubrication	Shell Alvania RL2 or NL.
Bearing Material Grade	52100
Bolt Hole Center-to-Cen.	148 mm
Bolt Size	5/8 in
Bore Dia.	1 3/4 in
Bore Diameter	1 3/4 in
Bore Type	Cylindrical
Brand	Tritan
Closure	Double Sealed
Country of Origin (subj.	China
Current Stock	42
Dynamic Load Capacity	5,206 lb
Features	Anti-Rotation Device, C.
Finish	Painted
Flange Thickness	0.593 in
Housing Material	Cast Iron
Housing Material Finish	Painted
Housing Type	Rhombus
Included Bearing	UC209-28
International Shipping	No
Item	2 Bolt Flange Bearing
Locking Type	Set Screw
Lubricant Material	NLGI #2 Equivalent
Lubrication Openings	One Zirc Fitting
Maximum Temperature	250 Degrees F
Minimum Temperature	-40 Degrees F
Mount Hole Center-to-Ce.	5.828 in
Mount Hole Size	3/4 in
Mounting Bolt Size	5/8 in
Mpn	UCFL209-28
Number of Mount Holes	2
Overall Height	52.2 mm
Overall Length	188 mm
Overall Width	108 mm
Rolling Element Rows	1
Seal Material	Rubber
Series	UCFL
Shaft Locking Type	Set Screws
SKU	ZO-G9447252
Standards	AFBMA, ISO
Static Load Capacity	4,631 lb
Static Radial Load Capa.	4,631.06 lbf
SubCategory	Power Transmission
System of Measurement	Inch
Temp. Range	-40 Degrees to 250 Deg.
UPC	888569051479
