GRAINGER APPROVED LH-G 100K-1

B09M786HCT

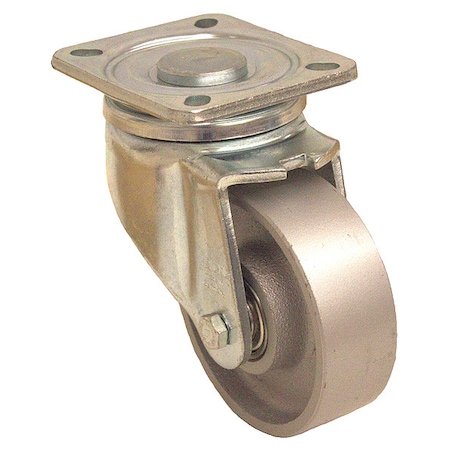

Swivel, 880 lb, Standard Plate Caster, Iron,3 7/8 in Wheel Dia. GIS-LH-G 100K-1

Swivel, 880 lb, Standard Plate Caster, Iron,3 7/8 in Wheel Dia. GIS-LH-G 100K-1zoom

Attributes

Key Value
ApplicationRetail, Industrial, Com.
Caster Brake IncludedNo
Caster Brake TypeNo Brake Included
Caster Frame MaterialSteel
Caster Load Rating RangeHeavy Duty
Caster Min. Temp.-15 Degrees F
Caster Plate Size85 mm x 100 mm
Caster Plate Thickness6 mm
Caster Sub-TypeSwivel
Caster Swivel Lock TypeNo Lock Included
Caster Wheel ShapeStandard
Caster Wheel/Tread Mate.Cast Iron
Core ColorGray
Core ColourSilver
FeaturesPush/Pull Force Reducti.
Frame FinishZinc Plated
Includes Thread GuardsNo
Inside Bolt Hole Spacing2-3/8 in x 3-5/32 in
ItemStandard Plate Caster, .
Load Rating880 lb
Mounting Bolt Dia.M8, 5/16 in
Mounting Height5 1/2 in
Mounting Plate Bolt Hol.D
Mounting Plate Size3 3/8 in x 3 15/16 in
Non-MarkingYes
Number of Mounting Holes4
Number of Wheels1
Outside Bolt Hole Spaci.2-3/8 in x 3-5/32 in
Overall Height140 mm
Plate Caster Bolt Hole .D
Replacement WheelMfr. No. G 100/15K
StandardsDIN EN 12532, ICWM
Swivel ConstructionKingpin
Swivel Lock TypeNo Lock Included
Swivel Raceway TypeDouble Ball
Swivel Radius95 mm, 3 7/8 in
Tread ShapeStandard
Wheel Bearing TypePrecision Ball
Wheel ColorSilver
Wheel Core MaterialCast Iron
Wheel Dia.3 7/8 in, 100 mm
Wheel Width35 mm, 1 5/8 in
Wheel/Tread ColourSilver
Wheel/Tread Hardness180-220 BHN
Wheel/Tread Hardness Ra.Extra Hard
Wheel/Tread MaterialIron

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG727949862.01179Zoro Select5.5562.0 @ 1
grainger.caWWG489D0788.686235141In StockGRAINGER APPROVED5.5588.68623514 @ 1
