TE Raychem 967646-1

B07NQSZPVN

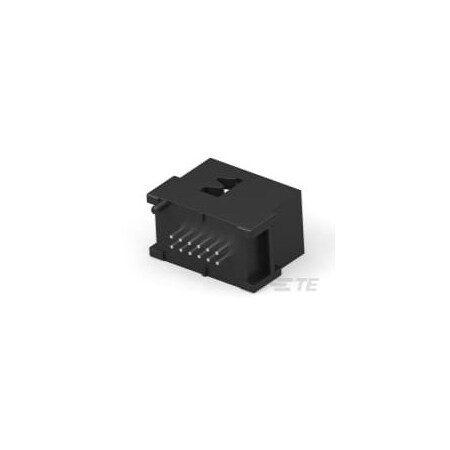

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
ApplicationsAutomotive
Base Product Number967646
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.78.7?in (2.00?m)
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post0.110" (2.79mm)
Contact MaterialCopper Alloy
Contact ShapeCircular
Contact TypeMale Pin
Current Rating (Amps)-
Fastening TypeFriction Lock
FeaturesBoard Guide
Ingress Protection-
Insulation ColorBlack
Insulation Height0.795" (20.20mm)
Insulation MaterialPolyamide (PA66), Nylon.
Mated Stacking Heights-
Material Flammability R.-
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts12
Number of Positions12
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 85?C
Overall Contact Length-
PackageBulk
Package Quantity1
Pitch2.54 mm (0.100")
Pitch - Mating0.100" (2.54mm)
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesAMPMODU Mod II, Micro Q.
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
TerminationSolder
TypeHeader
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 967646-11.165031116TE CONNECTIVITY/AMP BRAND1.16 @ 50
Newark17H02871.4142871AMP - TE CONNECTIVITY1.4 @ 1000
Digi-Key23289321.53887142871TE Connectivity AMP Connectors1.53887 @ 1428
us.rs-online.com702882682.13171TE Connectivity2.13 @ 1
RS Delivers164-09272.592171TE Connectivity2.592 @ 1
Onlinecomponents.com967646-12.62171TE Connectivity / AMP Brand2.62 @ 1
thumbzoomZoroG60590473189.55071Te Connectivity89.5 @ 50
