MVE-156

mpnMVE-156
brandname: Altech Corp
manufacturername: Altech Corp

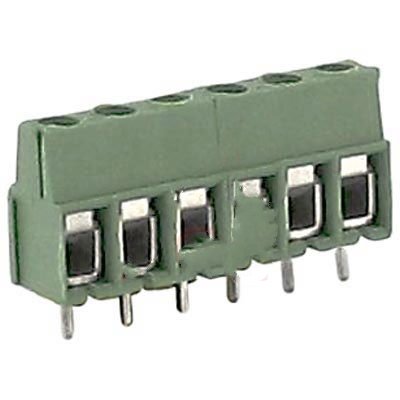

Altech MVE-156 , Conn, Term Blk, PCB, 6, 5 mm, Vert, 30-16 AWG, Green, 10/17.5 A, 300 V

Altech MVE-156 , Conn, Term Blk, PCB, 6, 5 mm, Vert, 30-16 AWG, Green, 10/17.5 A, 300 V

zoom

PartNumber: MVE-156
Model: MVE-156
PackageQuantity: 1
Manufacturer: Altech
Label: Altech

Attributes

Key	Value
Agency Approvals	cULus
Approvals	CE, UR
Body Material	PA6.8
Category	Connectors, Interconnec.
Color	Green
Composition	Polyamide
Connection Actuation	Tool
Current Rating	10 A
Family Series	Altech Terminal Blocks,.
Gross Weight	0 lbs
Hole Size	1.5 mm
IEC Current	17.5 A
IEC Max Wire Size (mm2)	2.5 mm2
IEC Voltage	450 VAC
IEC Wire Range (mm2)	1.5-2.5 mm2
Item Number	MVE-156
Level	Single Level
Manufacturer	Altech
Manufacturer Part Number	MVE-156
Mfr	Altech Corporation
Mounting Type	PCB Mount
Net Weight	0 lbs
Number of Levels	1
Number of Poles	6
Number of Positions	6
Overall Length	30 mm
Package	Bulk
Pin Spacing	5 mm
Primary Type	PCB Mount
Product Series	MVE-15xx
Product Status	Active
Screw Material	Galvanized Steel
Screw Size	M2.5
Series	*, MVE Series
Special Features	Wire Protector
Stripping Length	6.8 mm
Terminal Material	Tin-Plated Brass
Termination	Through Hole
Torque	0.4 N/m
Type	Fixed
UL Current	10 A
UL Max Wire Size	16 AWG
UL Voltage	300 VAC
UL Wire Range (AWG)	30-16 AWG
Voltage Rating	300 V
Wire Entry	Front
Wire Entry Position	Top
Wire Size	16 to 30 AWG
Wire Termination Type	Screw

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hawk Electronics	MVE-156	1.25	50	80		Altech		1.25 @ 50
	Galco	MVE-156-ALTH	1.34	1	80		Altech		1.34 @ 1
	jensentools.com	10119657	1.6	1	80		Altech		1.6 @ 1
	Digi-Key	9457505	1.68	100	80	82	Altech Corporation		1.68 @ 100
	us.rs-online.com	70078263	1.77	100	80		Altech Corp		1.77 @ 100
