ALTech MVE-252

mpnMVE-252
brandname: Altech Corp
manufacturername: Altech Corp

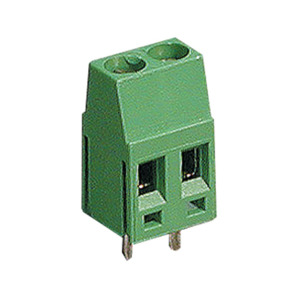

MVE-252, Altech Corp, Fixed PCB Blocks

MVE-252, Altech Corp, Fixed PCB Blocks

zoom

Brand: ALTech
PartNumber: MVE-252
Model: MVE-252
PackageQuantity: 1
Manufacturer: Altech
Label: Altech

Attributes

Key	Value
Agency Approvals	cULus
Alternate Part No.	845-MVE-252
Approvals	CE, UR
Body Material	PA6.8
Brand	Altech
Category	Connectors, Interconnec.
Color	Green
Composition	Polyamide
Connection Actuation	Tool
Connection Type	Screw Clamp
Current Rating	15 A
Family Series	Altech Terminal Blocks,.
Flammability Rating	UL 94 V-0
Gross Weight	0 lbs
Height	10.80 mm
Hole Size	1.3 mm
Housing Material	Polyamide (PA)
IEC Current	17.5 A
IEC Max Wire Size (mm2)	4 mm2
IEC Voltage	450 VAC
IEC Wire Range (mm2)	2.5-4 mm2
Item Number	MVE-252
Length	10.00 mm
Level	Single Level
Manufacturer	Altech
Manufacturer Part No.	MVE-252
Manufacturer Part Number	MVE-252
Mfr	Altech Corporation
Mounting Angle	Vertical
Mounting Type	PCB Mount
Net Weight	0 lbs
Number of Levels	1
Number of Poles	2
Number of Positions	2
Overall Length	10.2 mm
Package	Bulk
Pin Spacing	5 mm, 5.08 mm
Pitch	5 mm
Primary Type	PCB Mount
Product Category	Fixed Terminal Blocks
Product Series	MVE-25xx
Product Status	Active
Screw Material	Galvanized Steel
Screw Size	M3
Series	*, MV Series
Stripping Length	8.3 mm
Terminal Material	Tin-Plated Brass
Termination	Through Hole
Termination Style	Through Hole
Torque	0.5 N/m
Type	Fixed
UL Current	10 A
UL Max Wire Size	14 AWG
UL Voltage	300 VAC
UL Wire Range (AWG)	30-14 AWG
Voltage Rating	300 V
Wire Entry	Front
Wire Entry Position	Top
Wire Gauge Max	14
Wire Gauge Min	30
Wire Gauge Range	30-14
Wire Orientation	Vertical
Wire Size	14 to 30 AWG
Wire Termination Type	Screw

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hawk Electronics	MVE-252	0.407	100	6		Altech		0.407 @ 100
	Galco	MVE-252-ALTH	0.47	100	6		Altech		0.47 @ 100
	jensentools.com	10122844	0.56	1	100		Altech		0.56 @ 6
	Digi-Key	9457519	0.659	100	6	180	Altech Corporation		0.659 @ 100
	us.rs-online.com	70077385	1.18	1	100		Altech Corp		1.18 @ 6
	swatee.com	MVE-252	1.37	1	116		Altech		1.37 @ 6
