Baldor EM3583T

B007ZQOUT4

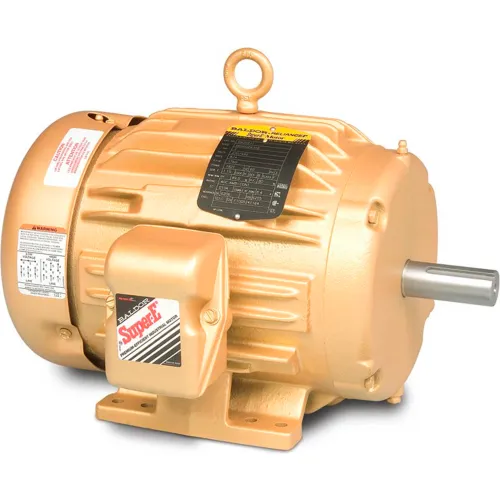

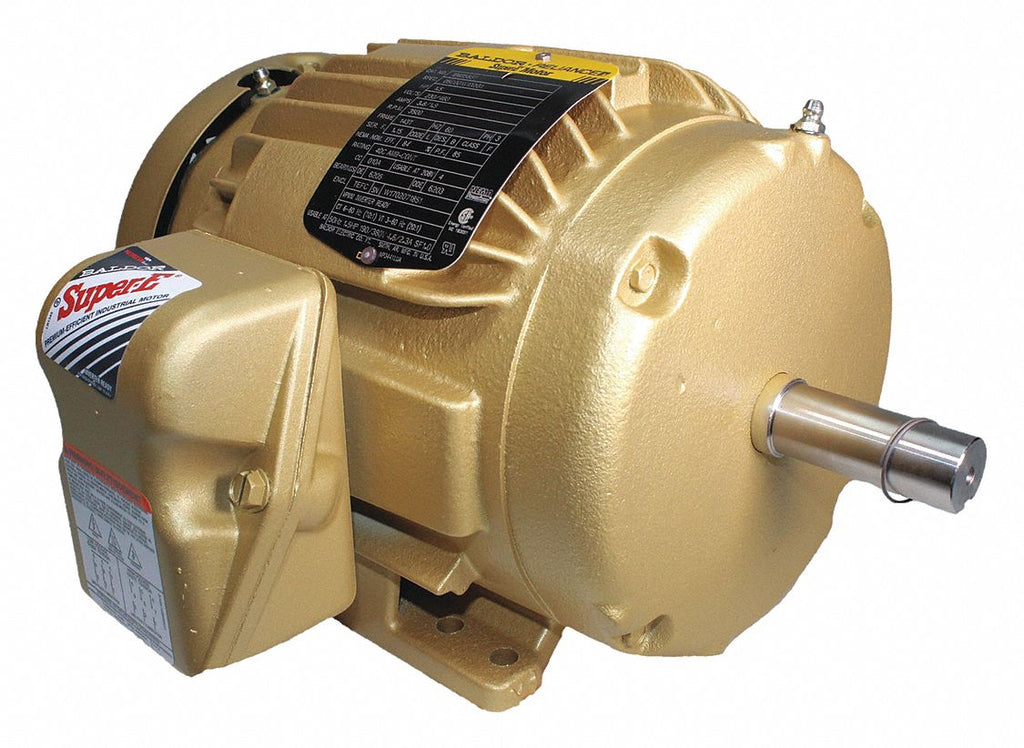

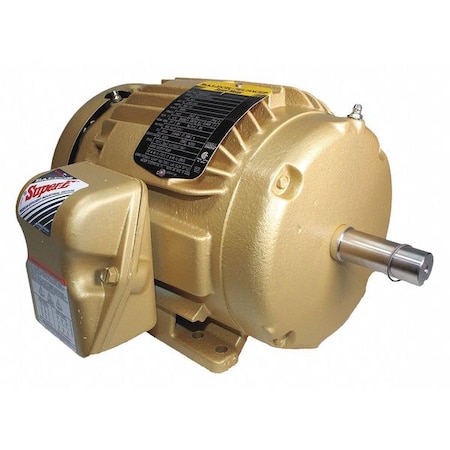

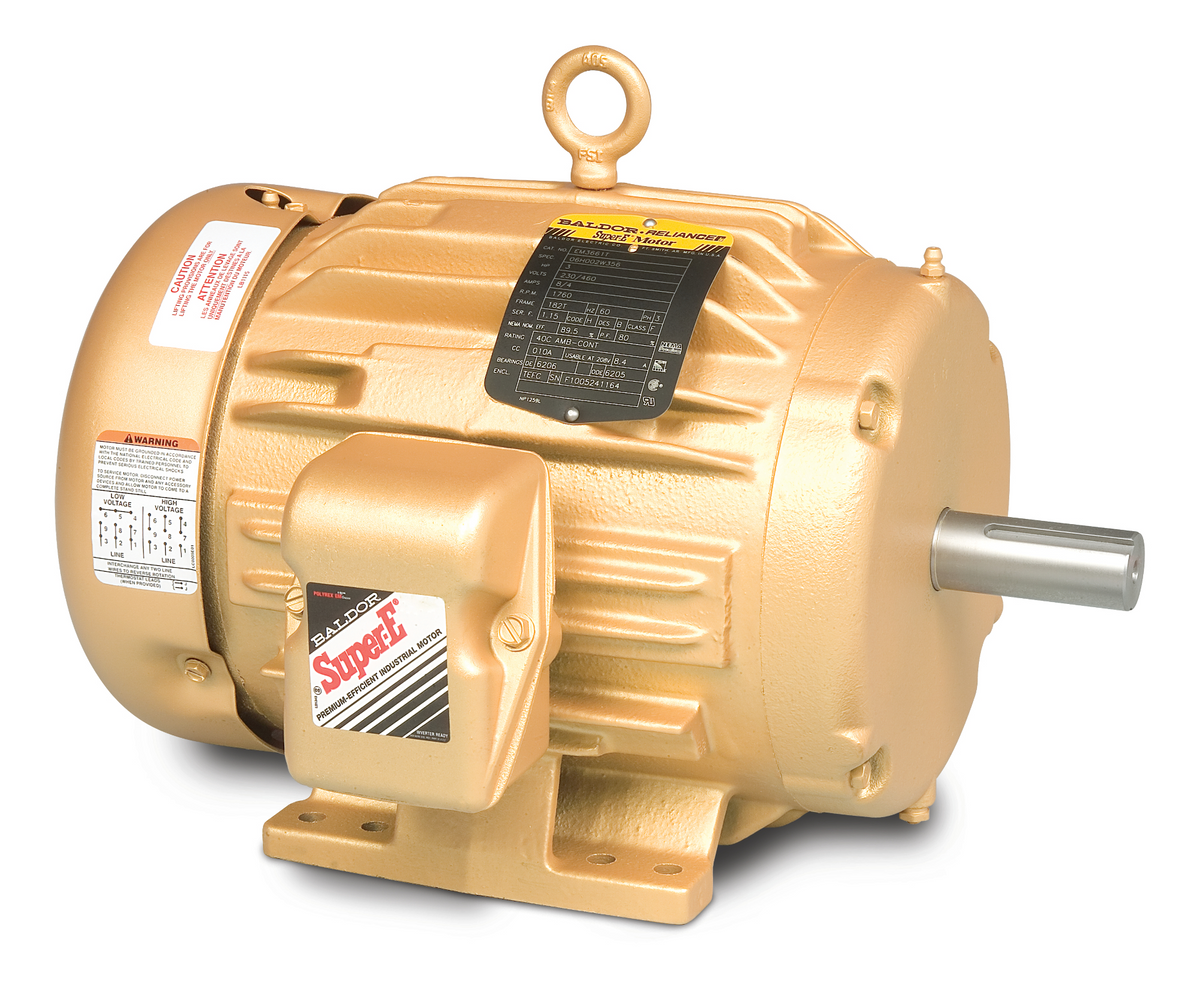

Baldor EM3583T General Purpose AC Motor, 3 Phase, 143T Frame, TEFC Enclosure, 1-1/2Hp Output, 3500rpm, 60Hz, 208-230/460V Voltage

Baldor EM3583T General Purpose AC Motor, 3 Phase, 143T Frame, TEFC Enclosure, 1-1/2Hp Output, 3500rpm, 60Hz, 208-230/460V Voltagezoom

Attributes

Key Value
Amps4/3.8/1.9
ApplicationGeneral Purpose
Bearing TypeBall
BearingsBall
BrandBaldor-Reliance
CC NumberCC031A
ColorGold
CompositionCast Iron
ConstructionCast Iron
Country of Origin (subj.United States
Current Stock3
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
Efficiency84.0%
Efficiency %84 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialIron
Enclosure TypeTEFC
Estimated Weight52.00
Family SeriesBaldor Motors, M Series
FL Amps4-3.8/1.9
FL Efficiency84
Frame143T
Frame MaterialCast Iron
Full Load Amps3.8/1.90
Green Certification or .NEMA Premium(R) Rated
Gross Weight56 lbs
Hertz60
Horsepower1-1/2 hp
HP1.5, 1 1/2, 1-1/2
Hz60
Ins. ClassF
Insulation ClassF
International ShippingNo
Inverter DutyYes, No
Inverter RatedYes
ItemGeneral Purpose Motor
Item NumberEM3583T
Lead TimeExpected to ship in 1-2.
Length Less Shaft10 1/4 in
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #05C001X102G1
Manufacturer Part NumberEM3583T
Manufacturers Warranty .3 yr
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionAll Angle
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Rigid
Mounting TypeFoot Mount, Rigid
MpnEM3583T
Nameplate RPM3,500
NEMA DesignB
NEMA Frame143T
Net Weight56 lbs
No. of Speeds1
Nominal Efficiency84 %
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
Overall Length12.53 ", 12.53", 12 1/2.
Overload ProtectionNone
Part NumberEM3583T
Phase3, Three, 3 Phase
Product SeriesM
Product TypeGeneral Purpose, Three .
RotationReversible
RPM3500, 3500 RPM, 3,600 R.
RPM Group3001-3600
RPM Range3,001-3,600
SeriesSuper-E Series
Service Factor1.15
Shaft Dia.7/8 in
Shaft Diameter0.875"
Shaft Length2 1/4 in
Ship Weight52 lbs.
SKUZO-G7847341
Speed (RPM)3500
StandardsCSA, CSA EEV, UR
SubCategoryMotors/Ac Motors
UPC781568204771
UPC Code781568204771
Usable @ 200VNo
Usable @ 208VYes
Voltage208V, 230V, 460V, 208-2.
Voltage (AC)208-230 VAC, 460 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460
Weight52 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comEM3583T680.061In StockBaldor680.06 @ 1
thumbzoomAmazonSCB007ZQOUT4784.691In StockBaldor784.69 @ 1
thumbzoomMRO Supply25559858.231In StockBaldor858.23 @ 1
thumbzoomemotorpro.comEM3583T904.891In StockBaldor52.0904.89 @ 1
thumbzoomPurvisEM3583T961.171In StockBaldor-Reliance961.17 @ 1
factorysupplyoutlet.comHM44QS991.251In StockBaldor-Reliance991.25 @ 1
thumbzoomgalesburgelectric.comEM3583T1001.271In StockBaldor1001.27 @ 1
thumbzoomGalcoEM3583T-BLDR1001.271In StockBaldor56.01001.27 @ 1
thumbzoomWalker IndustrialEM3583T1001.271In StockBaldor1001.27 @ 1
thumbzoomZoroG78473411007.971In StockBaldor-Reliance51.351007.97 @ 1
motorsandcontrol.comEM3583T1042.981In StockBaldor Reliance52.01042.98 @ 1
thumbzoomGlobal IndustrialWBB3898501079.01In StockBaldor-Reliance1079.0 @ 1
us.rs-online.com719441841157.031In StockBaldor-Reliance1157.03 @ 1
thumbzoompumpproducts.comEM3583T1184.331In StockBaldor1184.33 @ 1
cbtcompany.comEM3583T1186.51In StockBaldor Reliance1186.5 @ 1
thumbzoomsimsupply.comZO-G78473411207.113Baldor-Reliance1207.1 @ 1
kirbyrisk.com17764861312.851In StockBaldor1312.85 @ 1
thumbzoomsustainablesupply.comC14908731373.231In StockBaldor Electric57.01373.23 @ 1
thumbzoomRaptor SuppliesAJ6UBA1693.455661In StockBALDOR MOTOR1693.45566 @ 1
