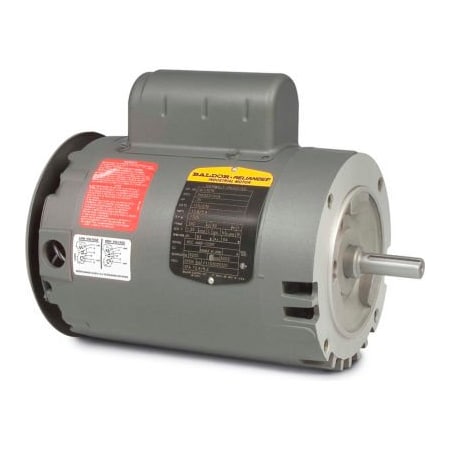

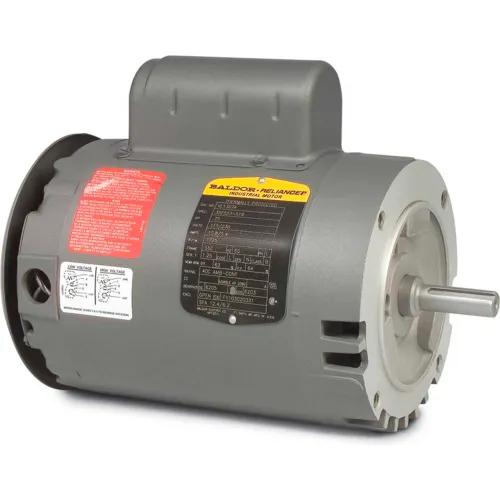

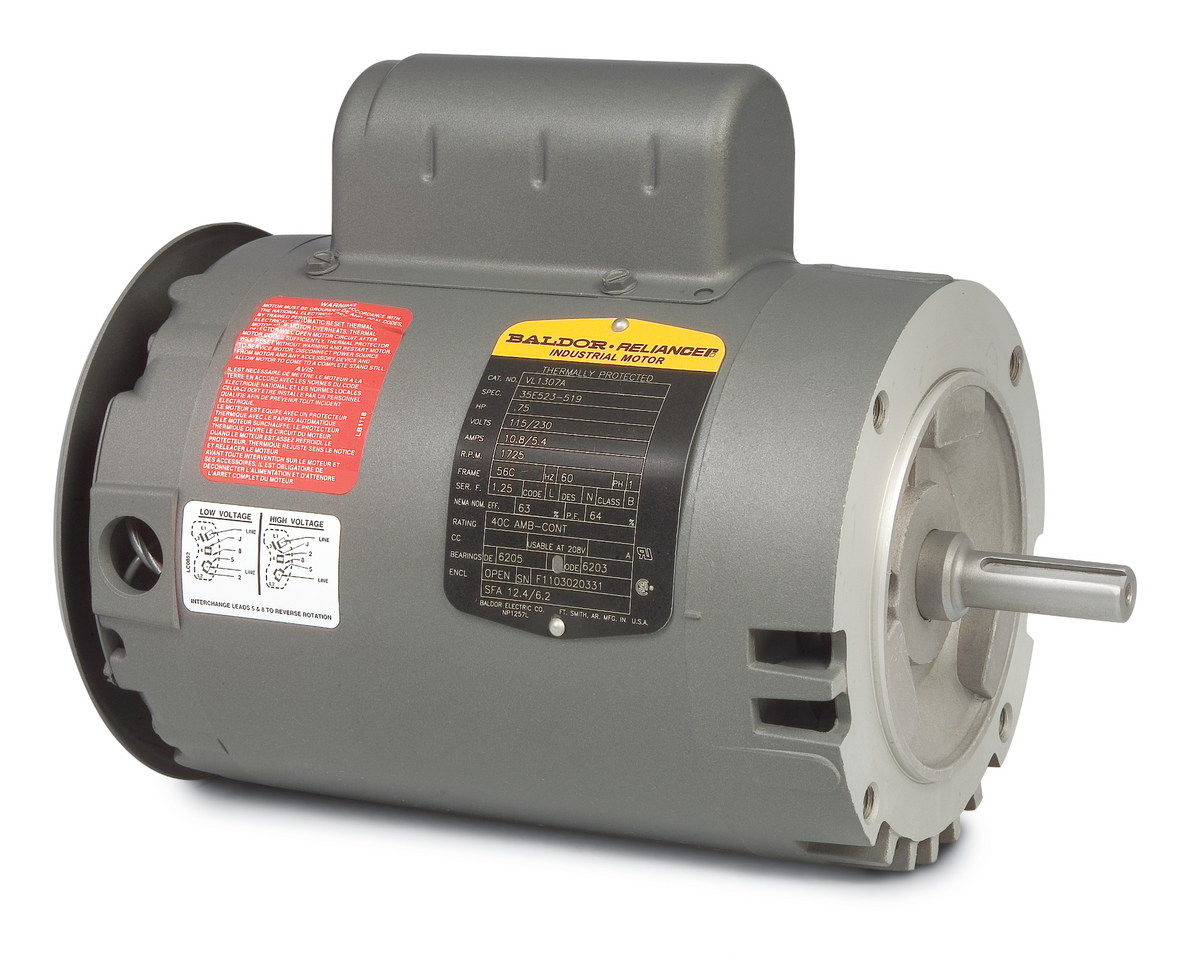

Baldor Electric VL1309A

B007ZQT43G

(VL1309A) 1 Hp 115/230 Vac 1 Phase Input 56C Frame 3600 Rpm

(VL1309A) 1 Hp 115/230 Vac 1 Phase Input 56C Frame 3600 Rpmzoom

Attributes

Key Value
Amps8.8/7.8/7/14
ApplicationPump Motor
Bearing TypeBall
BearingsBall
CompositionSteel
ConstructionRolled Steel
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency65.0%
Efficiency %65 %
EnclosureOPEN, Drip Proof
Enclosure MaterialSteel
Enclosure TypeOPEN
Estimated Weight32.00
Family NameSingle Phase Open Family
Family SeriesBaldor Motors, JL Series
FL Amps14/7
FL Efficiency65
Frame56C
Frame Type56C
Gross Weight32 lbs
Hertz60
Horsepower1 hp
Horsepower Rating1 hp
HP1
Hz60
Insulation ClassB
Inverter DutyNo
Item NumberVL1309A
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #34F491-3375G1
Manufacturer Part NumberVL1309A
Maximum Ambient Tempera.40? C
MountingC-Face, Footless
Mounting TypeFlange Mount, C-Face Fo.
NEMA Frame56C
Net Weight32 lbs
Nominal Voltage120 VAC, 208 VAC, 240 V.
Number of Speeds1
Overall Length13.4", 12.72 "
Overload ProtectionAutomatic
Part NumberVL1309A
Phase1, 1 Phase
Product SeriesJL
Product TypeGeneral Purpose
RotationReversible
RPM3450 RPM, 3450, 3400 - .
SeriesGO1 Series
Service Factor1.40
Shaft Diameter0.625"
Ship Weight32 lbs.
Special FeaturesAutomatic Thermal Overl.
Speed (RPM)3450
Supply Voltage115/208-230 VAC
Thermal ProtectionAutomatic
Voltage110-120V, 230V, 115/208.
Voltage (AC)115 VAC, 230 VAC
Volts115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comVL1309A320.321In StockBALDOR32.0320.32 @ 1
thumbzoomapexindustrialautomation.comVL1309A324.6511Baldor-Reliance324.65 @ 1
steinerelectric.comPDW~1271572373.01In StockBaldor-Reliance373.0 @ 1
thumbzoomPurvisVL1309A403.591In StockBaldor-Reliance403.59 @ 1
thumbzoomemotorpro.comVL1309A433.81In StockBaldor32.0433.8 @ 1
motorsandcontrol.comVL1309A500.01In StockBaldor Reliance32.0500.0 @ 1
factorysupplyoutlet.comEK32DE517.11In StockBaldor-Reliance517.1 @ 1
thumbzoomGlobal IndustrialWBB391331549.01In StockBaldor-Reliance549.0 @ 1
thumbzoomGalcoVL1309A-BLDR580.651In StockBaldor32.0580.65 @ 1
us.rs-online.com71934507598.8511Baldor-Reliance598.85 @ 1
motionindustries.com00536704606.611In StockBaldor-Reliance606.61 @ 1
kirbyrisk.com1774991629.381In StockBaldor629.38 @ 1
thumbzoomRaptor SuppliesAJ6ZAB795.49733251In StockBALDOR MOTOR795.4973325 @ 1
thumbzoomZoroG904949983849.991In Stock9Baldor-Reliance849.99 @ 1
