Century DL003

mpnDL003
brandname: Century
manufacturername: Century

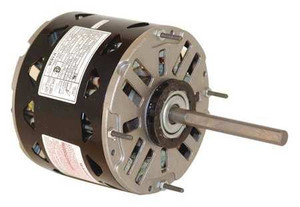

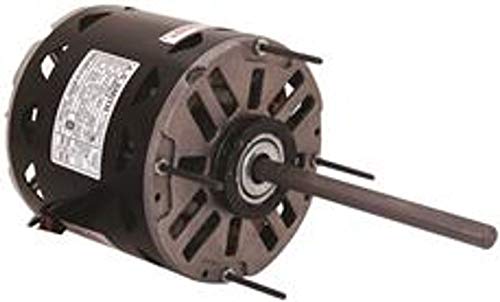

Regal Beloit DL003 Century Direct Drive Blower Psc Motor 1/4 hp, 7.5" Height, 7.6" Wide, 13.2" Length, 7.5 x 13.2 x 7.6

Brand: Century
PartNumber: DL003
Model: ITBD-504101
PackageQuantity: 1
Binding: Misc.
Manufacturer: Century
Label: Century

Attributes

Key	Value
Amps	4.9
Application	Blowers, Fans and Air C.
ASIN	B007R80LU2
Batteries Required?	No
Bearings	Sleeve
Best Sellers Rank	#1,797,766 in Tools & H.
Body Dia.	5 5/8 in, 5-5/8"
Bolt Circle Dia.	5 1/8 in, 5 1/8"
Capacitor	7.5MFD @ 370VAC Required
Capacitor Required	2MDV6, DMD2MDV6
Certification	CSA/UL
Country of Origin (subj.	Mexico
Date First Available	September 9, 2010
DL003 is listed in Cent.	Carrier/BDP P257-3385, .
Duty	Continuous
Duty Cycle	Continuous
Enclosure Type	OAO (Open Air Over)
Frame	48Y
Full Load Amps	4.9, 4.1
HP	1/3
Hz	60, 60 Hz
Includes	2-1/4" Rings with 2-1/2.
Ins. Class	B
Insulation Class	B
Item	Direct Drive Blower Mot.
Item model number	DL003
Item Package Quantity	1
Item Weight	13 pounds
Lead Length	26 in, 26"
Length Less Shaft	5-3/8", 5 3/8 in
Manufacturer	CENTURY
Max. Ambient Temp.	40 Degrees C, 40 Degre.
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Sleeve
Motor Design	Permanent Split Capacit.
Motor Diameter	5-5/8"
Motor Enclosure Design	Open Air-Over
Motor Frame Material	Steel
Motor Mounting Position	Horizontal, All Angle
Motor Mounting Type	Ring, Stud
Motor Service Factor	1, 1.00
Motor Shaft Design	Flat
Motor Shaft Rotation	CW/CCW
Motor Sub Application	Direct Drive Fan/Blower
Motor Thermal Protection	Auto
Mounting	Band/Ring/Stud
Mounting Holes	(4) #8-32
Mounting Stud Pattern	3 5/8 in x 3 5/8 in, 3-.
Nameplate RPM	1,075
No. of Speeds	2
Number of Shafts	1
Number of Speeds	2
Overall Length	9 3/8 in, 9 3/8"
Package Dimensions	21 x 18 x 18 inches
Part Number	DL003
Phase	1, Single
Product Type	PSC (Permanent Split Ca.
Product with faster shi.	true
Resilient Ring Dia.	2 1/4 in
Ring to Ring Center	4-15/16", 4 15/16 in
Rotation	Reversible
RPM	1075
RPM Range	1,001-1,100
Service Factor (SF)	1.00
Shaft Dia.	1/2", 1/2 in
Shaft Diameter	1/2"
Shaft Length	4-1/2", 4", 4 1/2 in
Ship Weight	12 lbs.
Shipping	undefined (Fixed Shippi.
Standards	CSA Certified, UL Recog.
Stud Size	#8-32, #8-32 x 5/8"
Thermal Protection	Automatic
UNSPSC Code	39120000
Usable @ 200V	No
Usable @ 208V	No
Voltage	115, 115V AC
Voltage Compatibility	115/208-230V AC, 115/23.
Volts	115
Weight	12 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G3115192	81.91	1	In Stock	26	Century	13.0	81.91 @ 1
ktool.net	DL003	107.53	1	In Stock		Century		107.53 @ 1
Amazon	B007R80LU2	110.76	1	In Stock		CENTURY		110.76 @ 1
AmazonTP	B007R80LU2	116.75	1	In Stock	5	CENTURY		116.75 @ 1
grainger.ca	AOSDL003	128.69266186	1	In Stock		CENTURY	13.0	128.69266186 @ 1
Voomi Supply	DL003	132.5	1	In Stock		Century Motors		132.5 @ 1
emotorpro.com	DL003	132.72	1	In Stock		Century	12.0	132.72 @ 1
sustainablesupply.com	C1560544	135.84	1	In Stock		Century	13.0	135.84 @ 1
industrialstores.com	DL003	144.69	1	In Stock	12	Century Motors by Regal Beloit		144.69 @ 1
homeessentialsdirect.com	DL003	148.55	1	In Stock		CENTURY	13.0	148.55 @ 1
National Supply Network	B245550	149.73	1	In Stock		AO SMITH		149.73 @ 1
Global Industrial	WBB245550	151.95	1	In Stock		Century		151.95 @ 1
hvacdiscountstore.com	CEN--DL003	166.97	1	In Stock		CENTURY MOTORS		166.97 @ 1
midwestapplianceparts.com	DL003-AO-P	171.41	1	In Stock		AO Smith		171.41 @ 1
