A. O. Smith DL007

B007ATNMEU

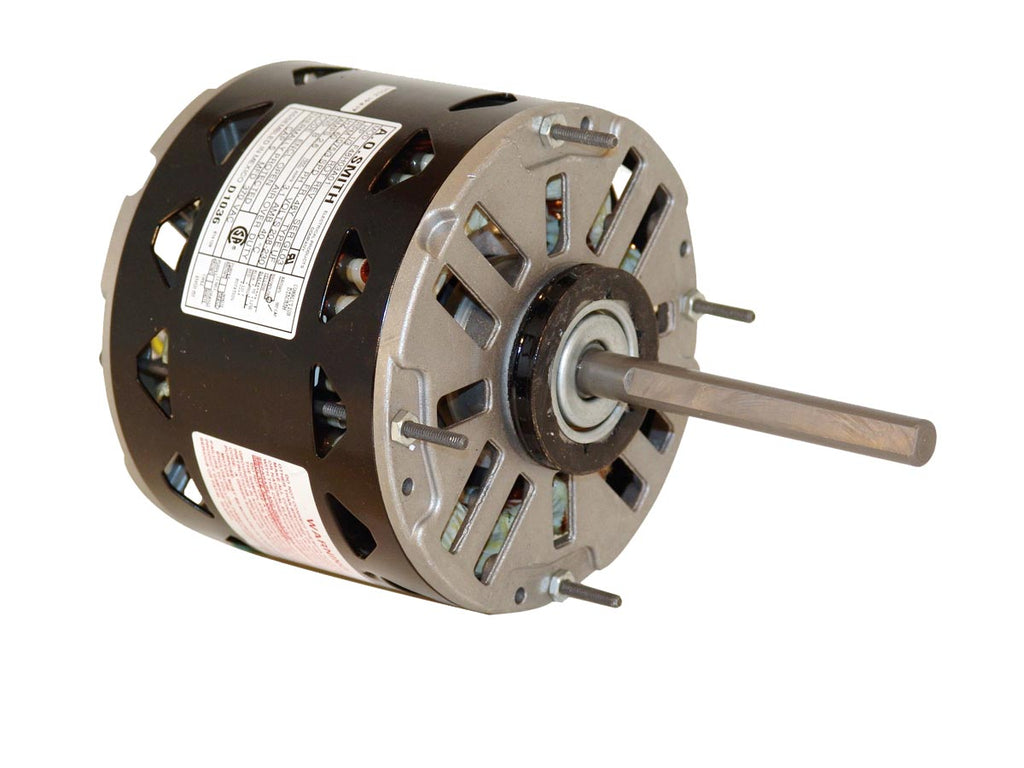

A.O. Smith DL007 3/4 HP, 1075 RPM, 2 Speed, 115 Volts8.9 Amps, 48 Frame, Sleeve Bearing Direct Drive Blower Motor

A.O. Smith DL007 3/4 HP, 1075 RPM, 2 Speed, 115 Volts8.9 Amps, 48 Frame, Sleeve Bearing Direct Drive Blower Motorzoom

Attributes

Key Value
Amps8.9
ApplicationBlowers, Fans and Air C.
BearingsSleeve
Body Dia.5 5/8 in, 5-5/8"
Bolt Circle Dia.5 1/8 in, 5 1/8"
Capacitor15MFD @ 370VAC Required
Capacitor RequiredWWG2MDV9, 2MDV9
CertificationCSA/UL
Country of Origin (subj.Mexico
Date First AvailableFebruary 16, 2020
DL007 is listed in Cent.Emerson 8895, Carrier/B.
DutyContinuous
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Frame48Y
Full Load Amps8.1, 8.9
HP3/4
Hz60, 60 Hz
IncludesResilient Mounting Ring.
Ins. ClassB
Insulation ClassB
ItemDirect Drive Blower Mot.
Item model numberDL007
Item Package Quantity1
Lead Length26 in, 26"
Length Less Shaft6 9/16 in, 6-5/8"
ManufacturerCENTURY
Max. Ambient Temp.50 Degrees C, 50 Degre.
Maximum Ambient Tempera.50? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignPermanent Split Capacit.
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Air-Over
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeRing, Stud
Motor Service Factor1, 1.00
Motor Shaft DesignFlat
Motor Shaft RotationCW/CCW
Motor Sub ApplicationDirect Drive Fan/Blower
Motor Thermal ProtectionAuto
MountingBand/Ring/Stud
Mounting Holes(4) #8-32
Mounting Stud Pattern3-5/8" x 3-5/8", 3-5/8 .
Nameplate RPM1,075, 1,075 RPM
No. of Speeds2
Number of Shafts1
Number of Speeds2
Overall Length10 5/8", 10 5/8 in
Part NumberDL007
Phase1, Single
Product TypePSC (Permanent Split Ca.
Product with faster shi.true
Resilient Ring Dia.2 1/4 in, 2-1/4"
Ring to Ring Center6-3/16", 6 3/16 in
RotationReversible
RPM1075
RPM Range1,001-1,100
Service Factor (SF)1.00
Shaft Dia.1/2", 1/2 in
Shaft Diameter1/2"
Shaft Length4-1/2", 4", 4 1/2 in
Ship Weight19 lbs.
Shippingundefined (Fixed Shippi.
StandardsCSA Certified, UL Recog.
Stud Size#8-32, #8-32 x 1-5/8"
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VNo
Voltage115, 115V AC
Voltage Compatibility115/208-230V AC, 115/23.
Volts115
Weight19 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0519434106.961In Stock10Century19.0106.96 @ 1
AmazonTPB007ATNMEU129.351In Stock2Century Electric/AO Smith Motors Co129.35 @ 1
thumbzoomktool.netDL007134.11In StockCentury134.1 @ 1
thumbzoomcshincorporated.comDL007141.081In StockAO Smith / Century19.0141.08 @ 1
hvacdiscountstore.comCEN--DL007156.731In StockCENTURY MOTORS156.73 @ 1
thumbzoomemotorpro.comDL007164.261In StockCentury19.0164.26 @ 1
grainger.caAOSDL007165.0408761In StockCENTURY19.0165.040876 @ 1
thumbzoomsustainablesupply.comC2090618168.111In StockCentury15.0168.11 @ 1
thumbzoomVoomi SupplyDL007176.131In StockCentury Motors176.13 @ 1
thumbzoomhomeessentialsdirect.comDL007181.581In StockCENTURY181.58 @ 1
thumbzoommidwestapplianceparts.comDL007-AO-P187.6811AO Smith187.68 @ 1
