- mpn20Q15R56
- brandname: Dodge
- manufacturername: Dodge

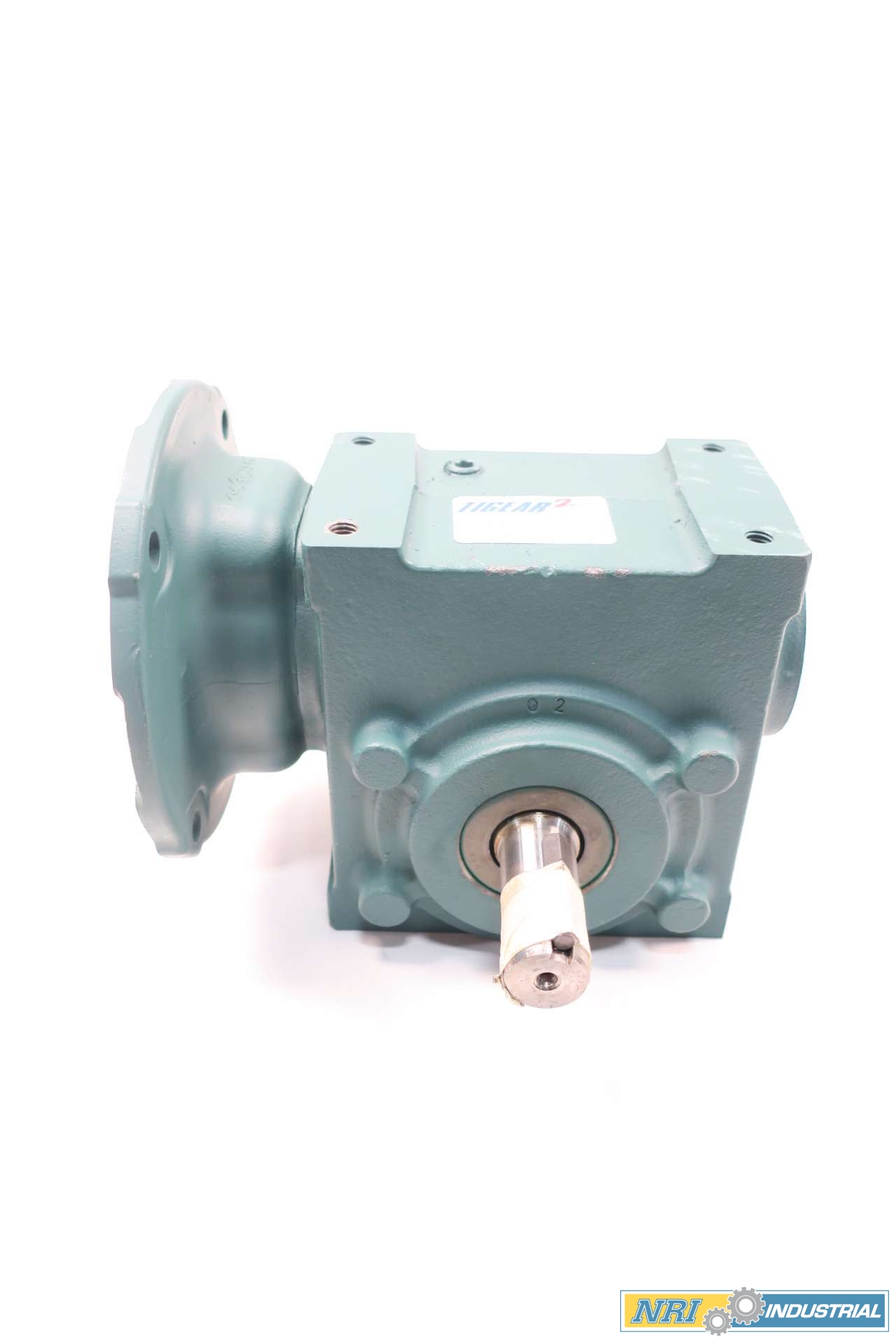

Dodge - 20Q15R56 TIGEAR-2 Reducer
- Brand: Dodge
- PartNumber: 20Q15R56
- PackageQuantity: 1
- Manufacturer: Dodge
- Label: Dodge
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.2400 in, 56.896 mm |
| Case size | 20 |
| Center distance (in) | 2 in, Center distance (. |
| center distance: | 2.00 in |
| Center to end of shaft . | 4.6900 in, 119.126 mm |
| Finish | Green |
| Horsepower rating input | 1.6900 hp, 1.26 kW |
| Horsepower rating output | 1.4600 hp, 1.089 kW |
| housing dimensions: | 8.6 x 5.01 x 7-1/2 in |
| housing height: | 7.50 in |
| housing length: | 8.6 in |
| Housing material | Cast iron |
| housing material: | Cast iron |
| housing width: | 5.01 in |
| Input | 56C flange |
| Input flange | 56C |
| Input HP | 1.69 |
| Input style | Quill |
| input type: | C-Face Quill |
| Lubrication type | PAG, standard temperatu. |
| manufacturer reducer si. | 20 |
| Material | Class 30 grey iron |
| Max RPM | 117 rpm |
| maximum input horsepowe. | 1.690 hp @ 1750 rpm |
| maximum output rpm: | 117.000 @ 1750 rpm input |
| maximum output torque: | 790 in-lbs @ 1750 rpm |
| Motor compatibility | NEMA motor, 56C frame |
| Mounting bolt pattern l. | 5.0000 in, 127.0 mm |
| Mounting bolt pattern w. | 2.8800 in, 73.152 mm |
| mounting type: | No Base |
| nema / iec frame size: | 56C |
| Nominal ratio | 15 |
| Output | Right side solid output. |
| Output bore/shaft diame. | 1 in |
| output direction: | Right Hand |
| Output horse power | 1.46 |
| Output shaft | Right (solid B) |
| Output shaft center to . | 5.0000 in, 127.0 mm |
| output size: | 1.0000 in |
| Output style | Right |
| output type: | Solid Shaft |
| Overhung load | 1560 lbf, 6939.226 N |
| overhung load capacity: | 1560 lb |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 790 in/lb, 790.0 in/lb |
| Ratio | 15 to 1 |
| ratio: | 15:1 |
| reduction: | Single |
| Seal type | Single-lip contact |
| Shaft diameter output | 1.0000 in, 25.4 mm |
| Shaft length output | 2.1100 in, 53.594 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 2.5200 hp, 1.879 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NRI Industrial | D532559 | 235.75 | 1 | In Stock | | DODGE | | 235.75 @ 1 |
 | Zoro | G808846180 | 633.99 | 1 | 1 | | Dodge | | 633.99 @ 1 |
 | Walker Industrial | 20Q15R56 | 671.16 | 1 | In Stock | | Dodge | | 671.16 @ 1 |
 | MRO Supply | 151372 | 760.4 | 1 | In Stock | | Dodge | | 760.4 @ 1 |
 | motionindustries.com | 02454848 | 796.02 | 1 | In Stock | | Dodge | | 796.02 @ 1 |
 | cbtcompany.com | 20Q15R56 | 846.0 | 1 | In Stock | | Dodge | | 846.0 @ 1 |
| kirbyrisk.com | 2049971 | 906.81 | 1 | In Stock | | Dodge | | 906.81 @ 1 |
| factorysupplyoutlet.com | 2040-295356 | 985.08 | 1 | In Stock | | DODGE | | 985.08 @ 1 |
