- mpnPDG23G0060TFFL
- brandname: EATON CUTLER HAMMER
- manufacturername: EATON CUTLER HAMMER

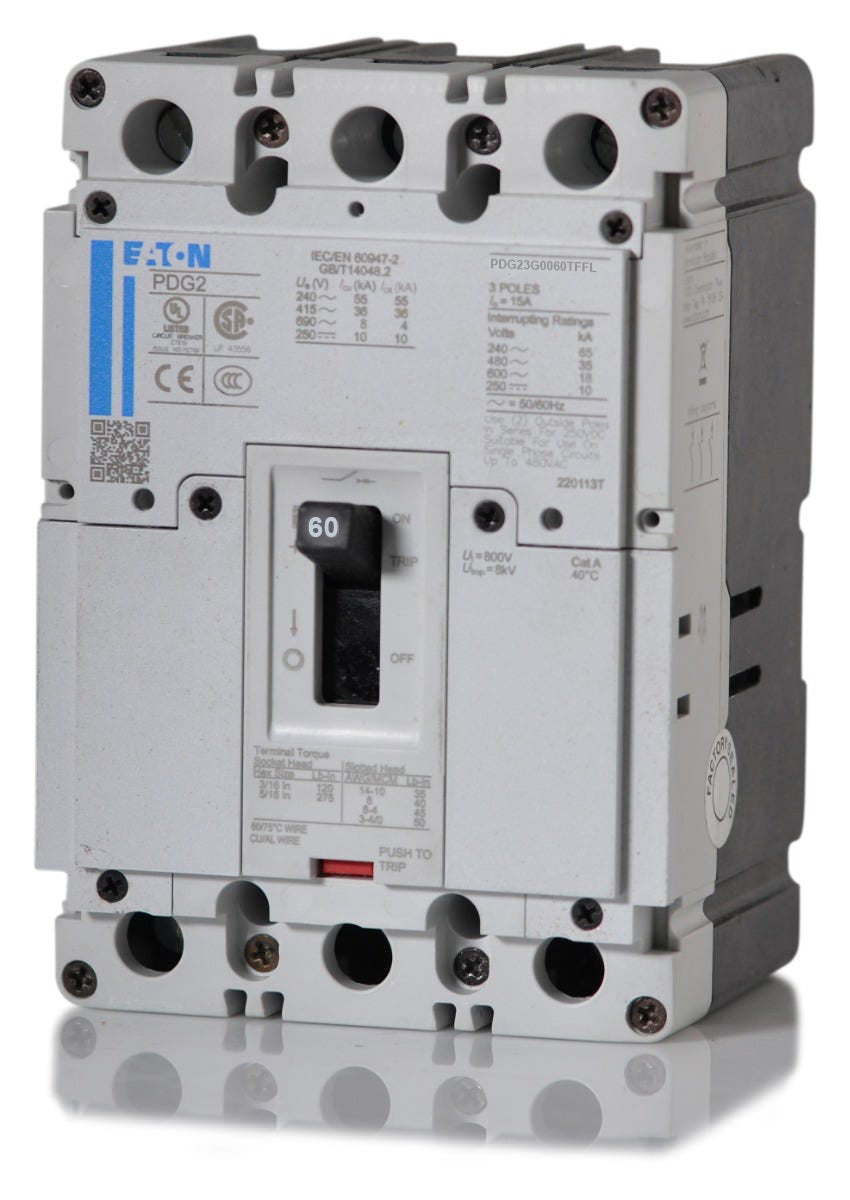

Eaton Electrical - PDG23G0060TFFL - PD Circuit Breaker 60A3P600 Vac Max35 kAIC at 480 Vac
- Brand: Eaton
- PartNumber: PDG23G0060TFFL
- PackageQuantity: 1
- Manufacturer: Eaton Electrical
- Label: Eaton Electrical
Attributes
| Key | Value |
|---|
| AC Voltage Rating | 600V AC |
| Alternate Mfr Part Numb. | PDG23G0060TFFL |
| Amperage | 60 |
| Amps | 60 A |
| Approval | CSA, CCC, IEC, UL |
| Brand | Eaton |
| Circuit Breaker Type | PD2 Global, Standard |
| Connection Type | Bolt-On |
| Curve Type | A |
| DC Voltage Rating | Not Rated |
| Depth | 3.5 in |
| For Use With | Motor Control Centers |
| Frame Size | 225A/Frame 2 |
| Frame Type | Complete Breaker |
| Functions | Long Time and Instantan. |
| Height | 6 in |
| Instantaneous Trip | Fixed |
| Interrupt Rating | 35 kA at 480V AC, 36 kA. |
| Interrupting Rating | 35kAIC at 480VAC |
| Item | Circuit Breaker |
| Manufacturer | Eaton Cutler Hammer |
| Max Wire Size | AWG 1/0 |
| Max. AIR Rating | 35 kA at 480V AC |
| Max. Operating Temp. | 158 Degrees F |
| Max. Wire Size | 1/0 AWG |
| Min Wire Size | AWG 14 |
| Min. Operating Temp. | -4 Degrees F |
| Min. Wire Size | 14 AWG |
| Mounting Type | Din Rail |
| Number of Poles | 3 |
| Part Number | PDG23G0060TFFL |
| Phase | 3, Three |
| Phase Connection | ABC |
| Poles | 3 |
| Protection | Thermal Magnetic |
| Series | Power Defense |
| Standards | RoHS, CCC, CSA, IEC 609. |
| Temperature Rating | -4 to 158 ?F |
| Terminal Connection | Standard Load Side Lug,. |
| Trip Type | Thermal Magnetic |
| Voltage | 600VAC, 250VDC |
| Width | 4.11 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cappusa.com | 4148530 | 463.42 | 1 | In Stock | | Eaton | | 463.42 @ 1 |
| Platt.com | 1823259 | 477.09 | 1 | In Stock | | Eaton | | 477.09 @ 1 |
 | motorsandcontrol.com | PDG23G0060TFFL | 507.54 | 1 | In Stock | | Eaton Cutler Hammer | | 507.54 @ 1 |
 | Zoro | G600901896 | 560.99 | 1 | In Stock | | Eaton | 4.0 | 560.99 @ 1 |
| us.rs-online.com | 72874862 | 581.5 | 1 | In Stock | | Eaton - Cutler Hammer | | 581.5 @ 1 |
 | Newark | 73AH7360 | 604.76 | 1 | In Stock | | EATON CUTLER HAMMER | | 604.76 @ 1 |
 | superbreakers.com | PDG23G0060TFFL | 745.3 | 1 | 1 | | Eaton | | 745.3 @ 1 |
