Hayward TC1400T

B009D81MYS

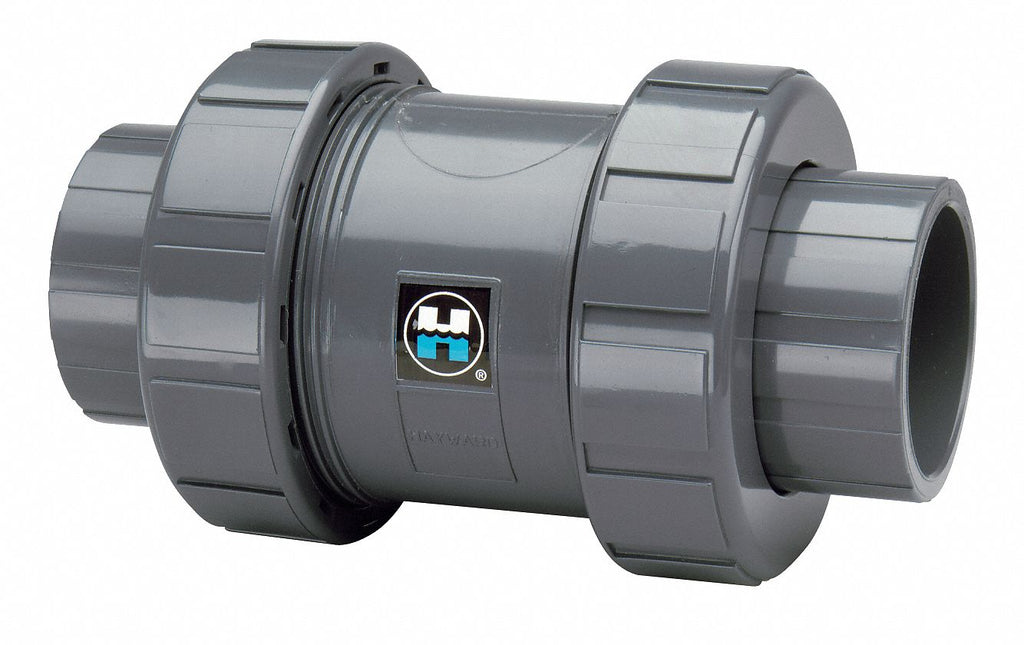

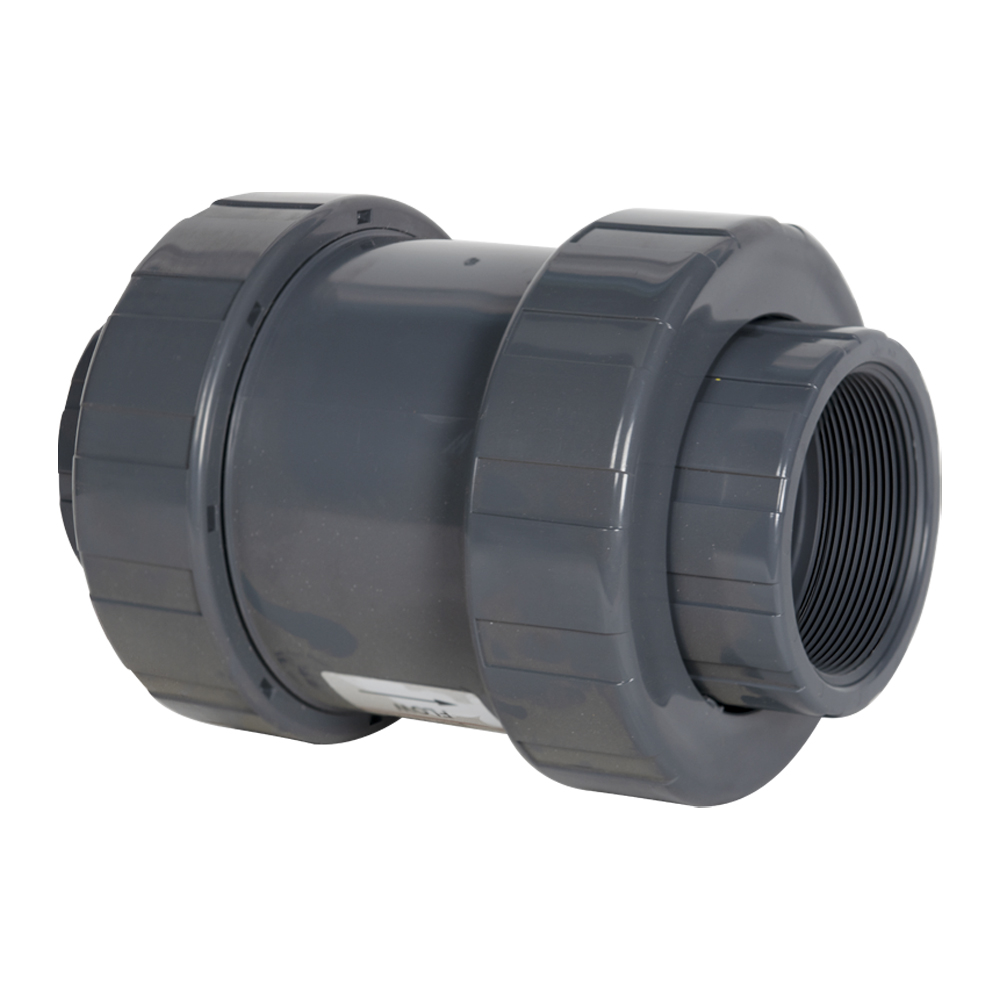

Hayward TC1400T Series TC True Union Ball Check Valve, Threaded End, PVC with FPM Seals, 4" Size

Hayward TC1400T Series TC True Union Ball Check Valve, Threaded End, PVC with FPM Seals, 4" Sizezoom

Attributes

Key Value
Application - ValvesProcess Piping
Ball MaterialPVC
Body MaterialPVC
Body Material - ValvesPVC
Catalog Page NumberP-462
ColorDark Gray
ConnectionThreaded x Threaded
Connection TypeFNPT x FNPT, Threaded
Connection Type - Check.FNPT x FNPT
Country of OriginUSA
Country of Origin (subj.United States
Cracking Pressure3 psi, 3.000 psi
Cracking Pressure - Che.3.0 psi
Description:4" PVC True Union Ball .
End StyleThread
Flow275 gpm
Flow - Valves275 gpm
Flow DesignSingle
Flow Rate275 gpm
Full Flow - ValvesYes
Inlet to Outlet Length12.94 in
ItemCheck Valve
Item - Check ValvesCheck Valve
Item Number18510
Length13 in, 13"
Length (Straight Wirewa.13 in
ManufacturerHAYWARD INDUSTRIAL PROD.
Manufacturer Part #TC1400T
MaterialPVC
Material of ConstructionPVC
Max. Pressure150 psi @ 70 Degrees F
Max. Steam Pressure - V.Not Rated
Max. Temp.140 Degrees F
Max. Temp. - Valves140 Degrees F, 140 Deg.
Max. Water Pressure - V.150 psi @ 70 Degrees F
Mechanism and Body Desi.Inline True Union
MFG Part #:TC1400T
Min. Temp. - Valves40 Degrees F, 40 Degre.
Mounting OrientationVertical
Mounting Orientation - .Vertical
Mounting PositionVertical (Flow Up)
Nominal Size4 in
Overall Height8-9/16", 8 9/16 in
Pipe or Tube Size4", 4 in
Pipe or Tube Size - Che.4 in
Pipe Size4"
Port TypeFull
Pressure Rating150 psi
SealFPM
Seal MaterialViton
Seal Material - Check V.Viton
Seat MaterialViton
Seat Material - Check V.Viton
SeriesTC Series
Size4"
Softgoods MaterialFKM
StandardsNSF 61
Sub-CategoryPVC
Supplier:HAYWARD INDUSTRIAL PROD.
Temperature Rating140 deg F
TypeTrue Union
UPC610377166683
UPC:610377166683
Weight15.7 lbs
Width8-9/16", 8 9/16 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caWWG5AAR5490.026747841In StockHAYWARD17.94490.02674784 @ 1
thumbzoomZoroG2283355578.991In Stock10Hayward17.94578.99 @ 1
thumbzoomsustainablesupply.comC2783605641.671In StockHayward17.94641.67 @ 1
thumbzoomblackhawksupply.comTC1400T798.91In StockHayward798.9 @ 1
thumbzoomRaptor SuppliesAE2ZGB802.0785241In StockHAYWARD802.078524 @ 1
thumbzoomusplastic.com18510861.281In StockHayward15.7861.28 @ 1
kscdirect.comHAY TC1400T1452.561In StockHAYWARD INDUSTRIAL PRODUCTS1452.56 @ 1
