Marathon Electric X090

mpnX090
brandname: Marathon Electric
manufacturername: Marathon Electric

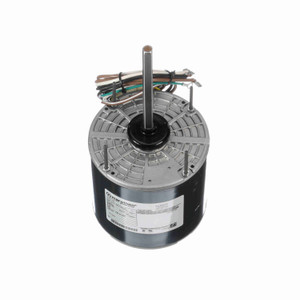

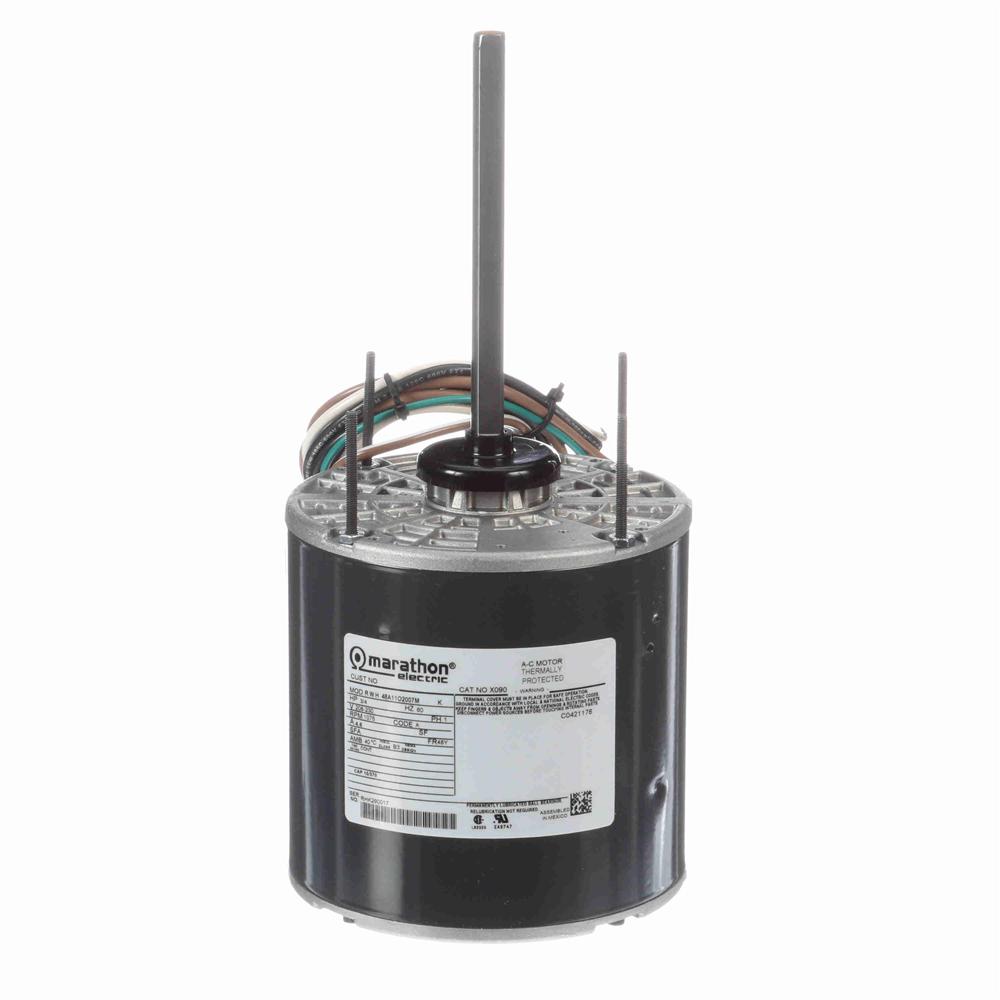

Marathon X090 HVAC Motor

Brand: Marathon Electric
PartNumber: X090
Manufacturer: Marathon
Label: Marathon

Attributes

Key	Value
Alternate Mfr Part Numb.	048A11O2007
Amps	4.6
Approvals	CSA, UR
Bearing Type	Ball
Bearings	Ball
Brand	Marathon
C-Dimension	12.44 (in.)
Capacitor	15MFD/370VAC Required
Catalog Number	X090
CE	N
Composition	Rolled Steel
CSA	Y
Current Rating	4.6 A
DE Bearing Type	Ball
DEM Reference	NOHP
Duty	Continous
Duty Cycle	Continuous
Efficiency	68, 0.68
Efficiency %	68 %
Electrical Type	Permanent Split Capacit.
Enclosure	OPAO, Open Air Over
Enclosure Material	Steel
Enclosure Type	OAO (Open Air Over), Op.
Family Series	Marathon Electric Motors
Frame	48Y
Frame Material	Rolled Steel
Frequency	60, 60 Hz
Gross Weight	0 lbs
Horsepower	3/4 hp
Horsepower Rating	0.75 HP
HP	3/4
Hz	60
Insulation Class	B
Insulation Type	Class B
IP Code	01
Item Number	X090
Kilowatts	0.56 kW
KVA Code	A
Manufacturer	Marathon Electric
Manufacturer Model #	048A11O2007
Manufacturer Part Number	048A11O2007
Max Ambient	40?C
Maximum Ambient Tempera.	40? C
Motor Diameter	5-5/8"
Motor Orientation	Horizontal
Motor Shell Length	5"
Mounting	Stud
Mounting Orientation	Horizontal
Mounting Type	Round - Extended Studs
Net Weight	17 lbs
Number of Poles	6
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	12.44 ", 12.44"
Phase	1, 1 Phase
Product Category	HVAC/R Motors > Conden.
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible, Selective C.
RPM	1075 RPM, 1075, 1,075 R.
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
Service Factor	1
Shaft Diameter	0.5 ", 1/2 (in.), 1/2"
Shaft Extension	6.06 (in.)
Shaft Length	6.06"
Shaft Type	Single Special Extension
Ship Weight	18 lbs.
Special Features	Service Factor - 1
Speeds	1
Standards	UL Recognized
Supply Voltage	208-230 VAC
Thermal Protection	Automatic
Type	Permanent Split Capacit.
Type of Overload Protec.	Automatic Lock Rotor On.
UL	Recognized
UPC Code	722856037589
Voltage	208-230
Voltage (AC)	208-230 VAC
Volts	208, 230, 208-230

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Galco	X090-MARA	66.83	75	In Stock	Marathon Electric	17.0	66.83 @ 75
us.rs-online.com	72237886	82.22	1	In Stock	Marathon Motors		82.22 @ 1
emotorpro.com	X090	195.46	1	In Stock	Marathon	18.0	195.46 @ 1
midwestapplianceparts.com	X090-MT-P	222.71	1	In Stock	Marathon		222.71 @ 1
Guardian	MARSX090	251.07	1	In Stock	Marathon		251.07 @ 1
Global Industrial	WBB871669	333.95	1	In Stock	Marathon Motors		333.95 @ 1
Dreisilker	MA-RBC-X090	359.46	1	In Stock	Marathon		359.46 @ 1
