- mpn5KCR46MN0094
- brandname: Marathon Motors
- manufacturername: Marathon Motors

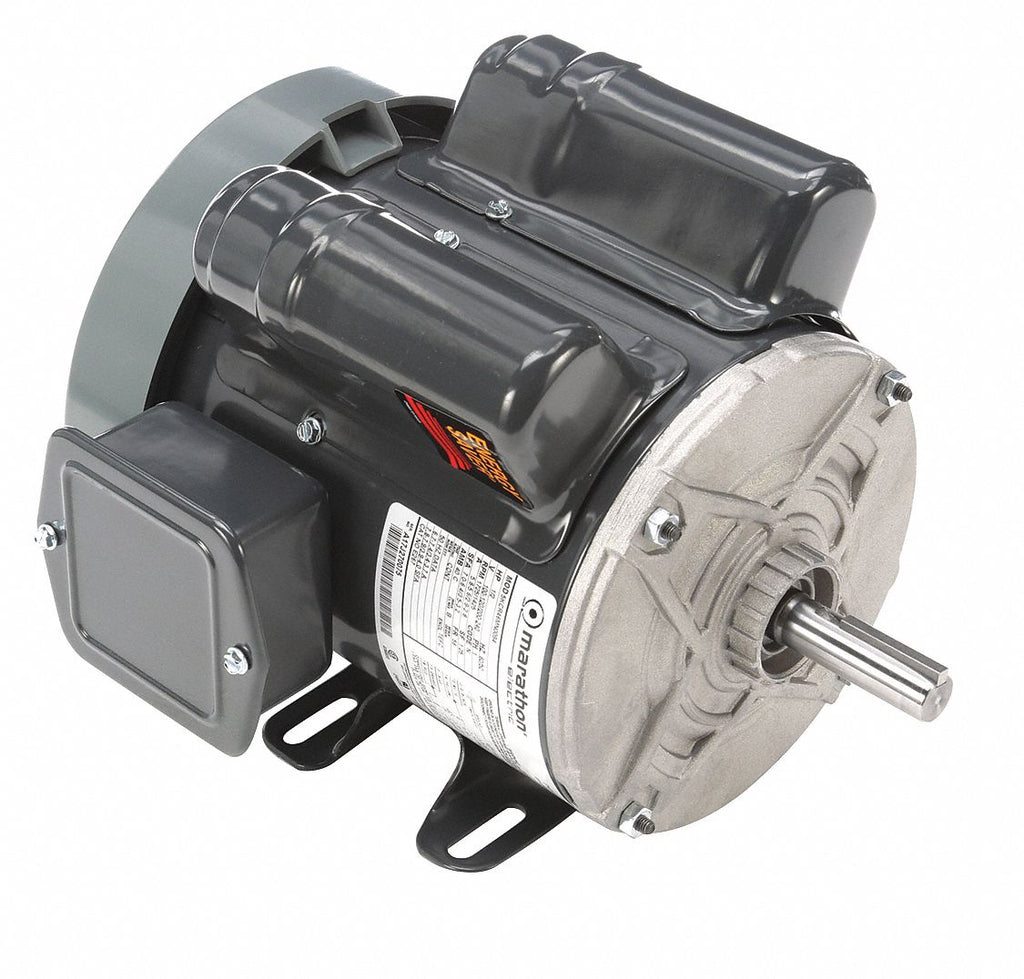

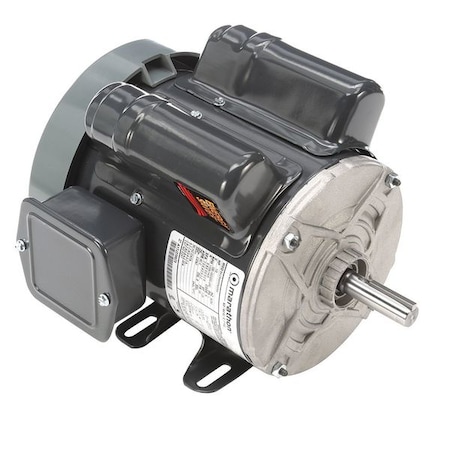

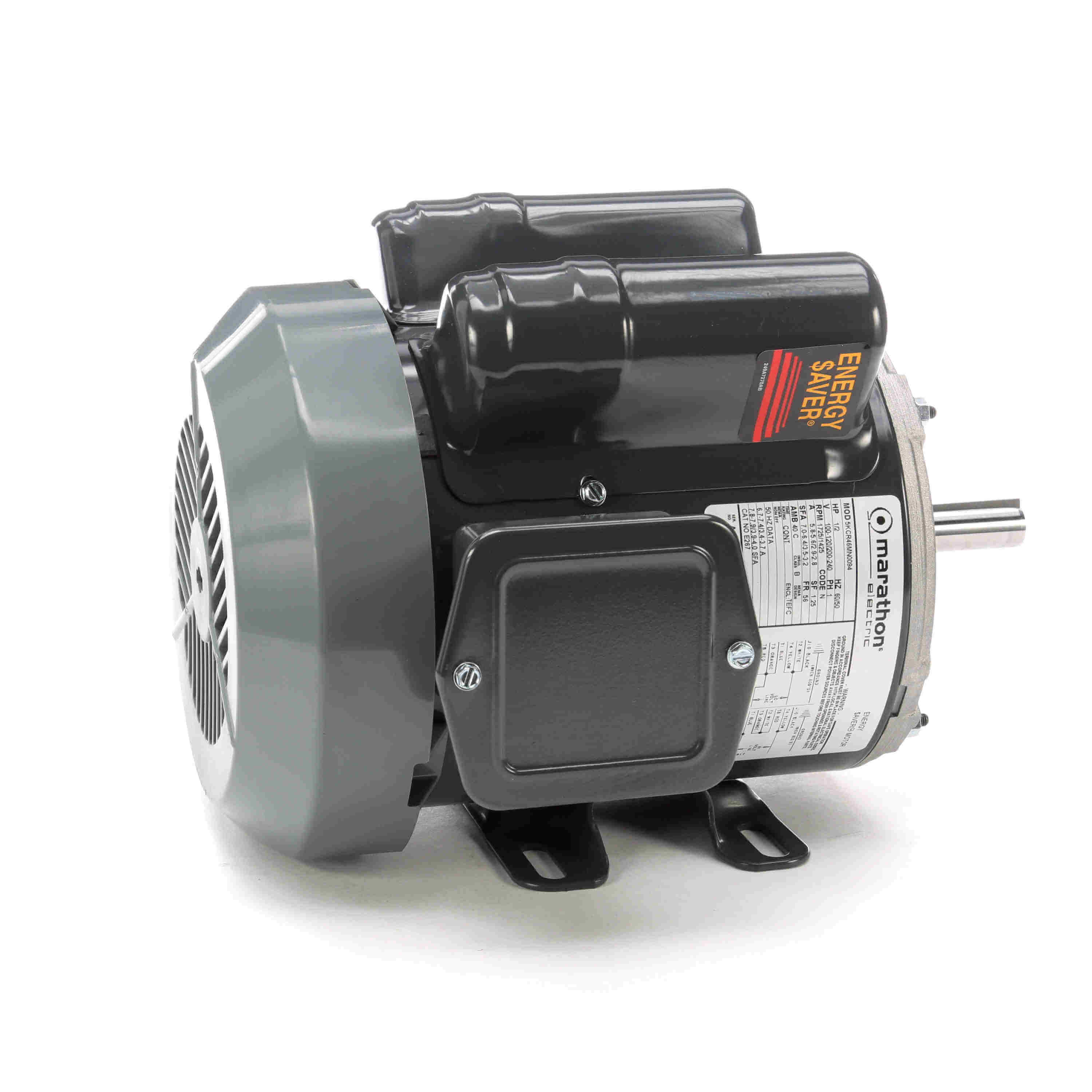

Marathon Motors 1/2 HP General Purpose Motor,Capacitor-Start/Run,1725 Nameplate RPM,Voltage 120/240,Frame 56
- Brand: CAI - MARATHON MOTORS
- PartNumber: 5KCR46MN0094
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Brand | Marathon Motors |
| Color | Black/Silver |
| Composition | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency % | 72 % |
| Enclosure | TEFC, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 56 |
| Frame Material | Steel |
| Full Load Amps | 5.8-5.6/2.9-2.8 |
| Gross Weight | 0 lbs |
| Horsepower | 1/2 hp |
| HP | 1/2, .50 |
| Hz | 60 |
| Ins. Class | B |
| International Shipping | No |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number | 5KCR46MN0094 |
| Kilowatts | 0.37 kW |
| Length Less Shaft | 9 15/16 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | E267 |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| mounting | Rigid Base |
| Mounting Type | Footed |
| Mpn | 5KCR46MN0094 |
| Nameplate RPM | 1,725 |
| NEMA Frame | 56 |
| Net Weight | 27 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 72 % |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Overall Length | 11 13/16 in |
| Phase | 1, Single |
| RPM | 1800, 1,725 RPM |
| RPM @ 50Hz | 1,425 |
| RPM Group | 1701-1800 |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| SKU | ZO-G1995095 |
| Standards | CSA Certified, UL Listed |
| SubCategory | Motors/Ac Motors |
| Usable @ 200V | Yes |
| Usable @ 208V | Yes |
| Voltage | 115/230V AC |
| Voltage (AC) | 110-120 VAC, 200 VAC, 3. |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 100-120/200-240 |
| Weight | 27 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 5KCR46MN0094-MARA | 97.96 | 1 | In Stock | | Marathon Electric | 27.0 | 97.96 @ 1 |
 | Zoro | G1995095 | 246.79 | 1 | In Stock | | Marathon Motors | 27.15 | 246.79 @ 1 |
 | simsupply.com | ZO-G1995095 | 290.5 | 1 | In Stock | | Marathon Motors | | 290.5 @ 1 |
 | Dealers Electric | 5KCR46MN0094 | 413.63 | 1 | In Stock | | Marathon Electric | 27.0 | 413.63 @ 1 |
 | sustainablesupply.com | C2792664 | 454.86 | 1 | In Stock | | Marathon | 27.15 | 454.86 @ 1 |
| motionindustries.com | 00536626 | 791.54 | 1 | In Stock | | Marathon Electric | | 791.54 @ 1 |
 | Raptor Supplies | AA9ZKH | 1020.9338685 | 1 | In Stock | | MARATHON MOTORS | | 1020.9338685 @ 1 |
