- mpnLCC2/0-38DW-X
- brandname: Panduit
- manufacturername: Panduit

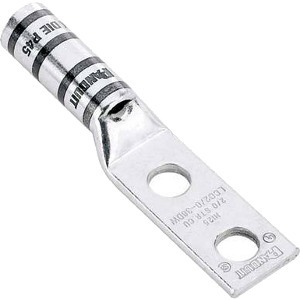

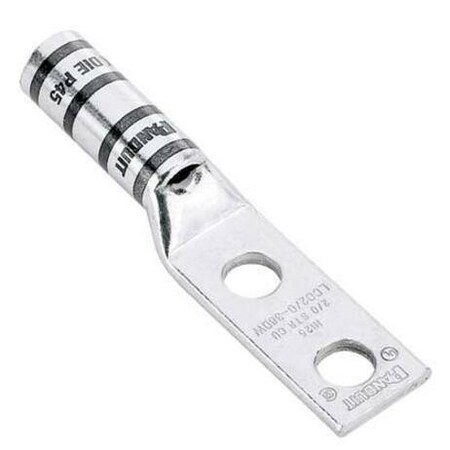

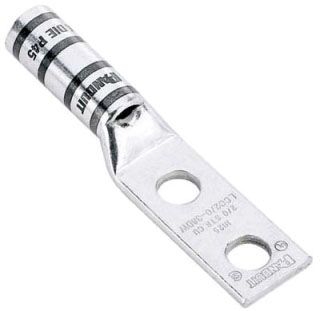

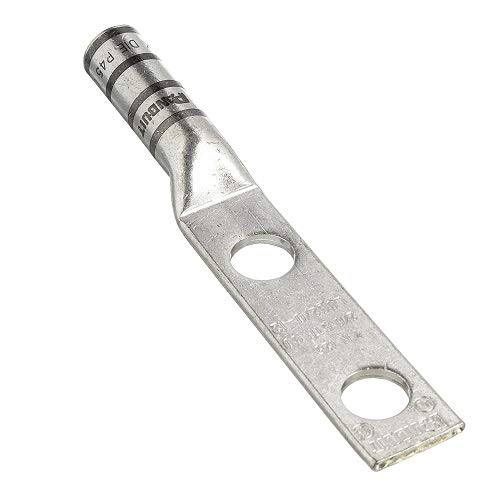

LCC2/0-38DW-X, Lug Terminal (2/0) AWG 93.2mm 21.6mm Tin (2 Items)
- Brand: Panduit
- PartNumber: LCC2/0-38DW-X
- Model: LCC2/0-38DW-X
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 2/0 |
| Approvals | CSA, UL |
| Base Product Number | LCC2 |
| Brand | Panduit, Pan-Lug? |
| Brand Name | Panduit |
| Cable Size | 2/0 AWG |
| Catalog Number | LCC2/0-38DW-X |
| Category | Connectors, Interconnec. |
| Color | Black |
| Color Code | Black |
| Color Family | Black |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Diameter - Barrel ID | 0.450" (11.43mm) |
| Diameter - Barrel OD | 0.580" (14.73mm) |
| Diameter - Ring ID | 0.410" (10.41mm) |
| Die Color | Black |
| ECCN | EAR99 |
| Environmental Certifica. | RoHS |
| Environmentally Friendly | Yes |
| Family Series | Panduit Terminals, Pan-. |
| Features | Corrosion Resistant, - |
| Finish | Tin-Plated |
| Gross Weight | 1.3 lbs |
| GTIN | 00074983798186 |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCC2/0-38DW-X |
| Item Type | Copper Compression Conn. |
| Length | 3.7, 3.67" |
| Length - Overall | 3.670" (93.22mm) |
| Lug Wire Size | 2/0 AWG |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | LCC2/0-38DW-X |
| Manufacturer Website Ad. | http://www.panduit.com |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 2/0 AWG |
| Mfr | Panduit Corp |
| Min Conductor Range | 2/0 AWG |
| Mounting | 2-Hole, 1.56 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 2 |
| Package | Bulk |
| Packaged Quantity | 10 |
| Part Status | Active |
| Product Name | Terminal Connector |
| Product Series | Pan-Lug Compression |
| Product Type | Terminal Connector |
| RoHS Compliant | Yes |
| Series | Pan-Lug? |
| Size | 2/0 AWG Code |
| Special Features | Consult cable manufactu. |
| Stud Hole Spacing | 1 |
| Stud Size | 3/8 in, 44628 |
| Stud/Tab Size | 3/8 Stud |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.130" (3.30mm) |
| Terminal Style | Two Stud Holes |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| UNSPSC | 39121405 |
| UPC | 074983798186 |
| Width | 0.85" |
| Width - Outer Edges | 0.850" (21.59mm) |
| Wire Gauge | 2/0 AWG |
