Samtec HTSW-101-08-G-T-RA

mpnHTSW-101-08-G-T-RA
brandname: SAMTEC
manufacturername: SAMTEC

SAMTEC HTSW-101-08-G-T-RA Header New Lot Quantity-100

SAMTEC HTSW-101-08-G-T-RA Header New Lot Quantity-100

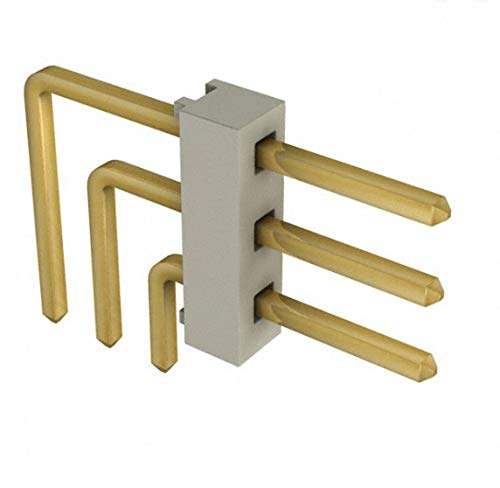

zoom

Brand: Samtec
PartNumber: HTSW-101-08-G-T-RA
Model: HTSW-101-08-G-T-RA
PackageQuantity: 1
Manufacturer: SAMTEC
Label: SAMTEC

Attributes

Key	Value
Applications	-
Base Product Number	HTSW-101
Category	Connectors, Interconnec.
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thicknes.	10.0?in (0.25?m)
Contact Finish Thicknes.	3.00?in (0.076?m)
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.090" (2.29mm)
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.320" (8.13mm)
Insulation Material	Liquid Crystal Polymer .
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Samtec Inc.
Mounting Type	Through Hole, Right Ang.
Number of Positions	3
Number of Positions Loa.	All
Number of Rows	3
Operating Temperature	-55?C ~ 125?C
Overall Contact Length	-
Package	Bulk
Part Status	Active
Pitch - Mating	-
Row Spacing - Mating	0.100" (2.54mm)
Series	HTSW
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Samtec	HTSW-101-08-G-T-RA	0.54	1	185		Samtec		0.54 @ 1
	Newark	84T4897	0.582	1	171		SAMTEC		0.582 @ 1
	Radwell	HTSW-101-08-G-T-RA	0.6	1	171		SAMTEC		0.6 @ 1
	Digi-Key	6691685	0.77	1	171		Samtec Inc.		0.77 @ 1
