Square D QO120L125G

mpnQO120L125G
brandname: Square D by Schneider Electric
manufacturername: Square D by Schneider Electric

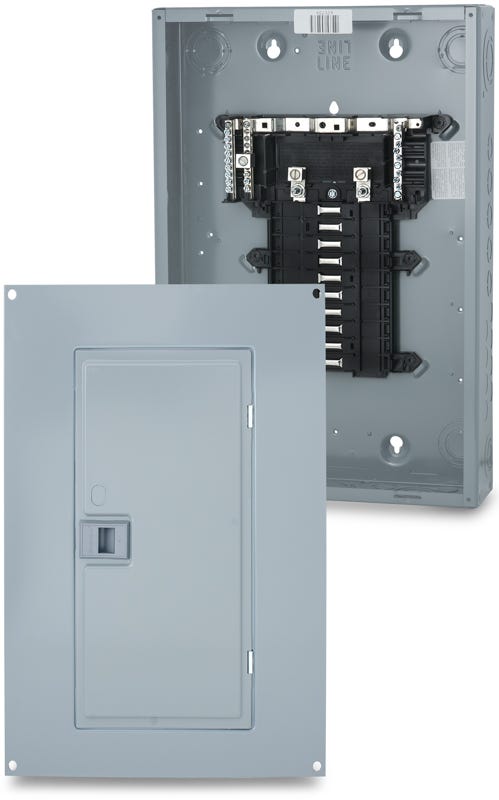

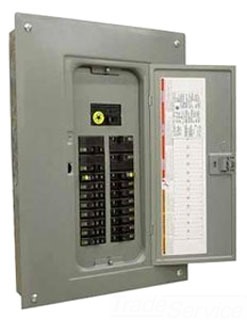

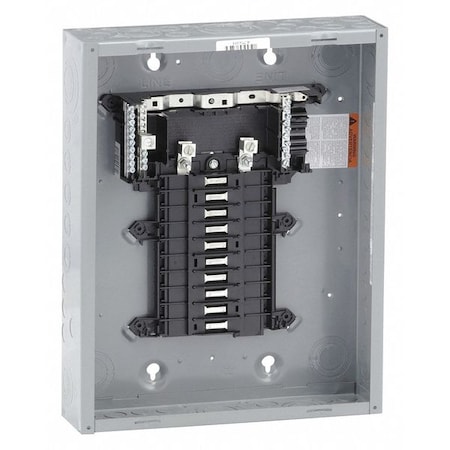

Load Center, Lug, 125A, 120/240VAC, 1Ph

Brand: Square D
PartNumber: QO120L125G
Model: QO120L125G
PackageQuantity: 1
Binding: Misc.
Manufacturer: Square D
Label: Square D

Attributes

Key	Value
Amps	125
AWG gauge	AWG 6...AWG 2/0 (alumin.
Brand	Square D
Breaker Feature	Main Breaker
Bus Material	Tin Plated Copper
Category	00001 - QO 1PH LC,12-42.
Circuit Breaker Type	QO
Color	Gray
Commercial Status	Commercialised
Configuration	Main Lug
Country of origin	US
Country of Origin (subj.	United States
Cover type	Order Separately
Depth	3-3/4"
Device composition	Grounding bar included .
Discount Schedule	DE3A
Electrical connection	Lugs
Enclosure Material	Steel
Enclosure NEMA Rating	1
Enclosure Surface Finish	Enamel
Feed Location	Top/Bottom
For Use With	Square D QO Circuit Bre.
GTIN	00785901847854
Gtin	785901847854
Height	17-29/32"
Included Enclosure Cover	Order Separately
Item	Load Center
Line Rated Current	125 A
Load centre type	Main lugs
Location	Indoor
Main Circuit Breaker or.	Main Lug, Convertible
Material	Tin plated copper busbar
Max. No. of Tandem Brea.	0
Max. Operating Temp.	104 Degrees F
Min. Operating Temp.	23 Degrees F
Mpn	QO120L125G
Nbr. of units in pkg.	1
NEMA degree of protecti.	NEMA 1 indoor
Nema Rating	Indoor
Number of circuits	20
Number of Spaces	20
Number of spaces	20
Number of tandem circui.	0
Phase	1, 1 phase
Product availability	Stock - Normally stocke.
Product certifications	UL listed
Product end of life ins.	Need no specific recycl.
Product or component ty.	Load Centre
Range of product	QO
REACh	Reference not containin.
Recommended Flush Cover	1D429
Recommended Ground Bar .	Included
Recommended Surface Cov.	1D434
Returnability	Y
RoHS (date code: YYWW)	Compliant - since 1248 .
Series	QO Series, QO
Short Circuit Current R.	65kA
Short-circuit current	65 kA
Special Features	Mercury Free
Standards	UL Listed, RoHS Complia.
Sustainable offer status	Not Green Premium produ.
System Voltage	120/240 V AC
Upc	785901847854
UPC Code	785901847854
Voltage	120/240VAC
Warranty period	18 months
Width	14-1/4"
Wiring configuration	3-wire

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
suppliesdepot.com	QO120L125G	78.0	1	20		SQUARE D	78.0 @ 20
Zoro	G0358416	79.59	1	20	10	Square D	79.59 @ 20
superbreakers.com	QO120L125G	82.17	1	20		Square D	82.17 @ 20
United Electric	102645	101.03	1	20		Schneider Electric	101.03 @ 20
us.rs-online.com	70523453	104.2	1	20		Square D	104.2 @ 20
mayerelectric.com	SQDQO120L125G	121.68	1	20		SQUARE D	121.68 @ 20
mostelectric.com	QO120L125G	274.48	1	20		SQUARE D/TELEMECANIQUE	274.48 @ 20
