TE Connectivity 5745071-1

mpn5745071-1
brandname: TE Connectivity
manufacturername: TE Connectivity

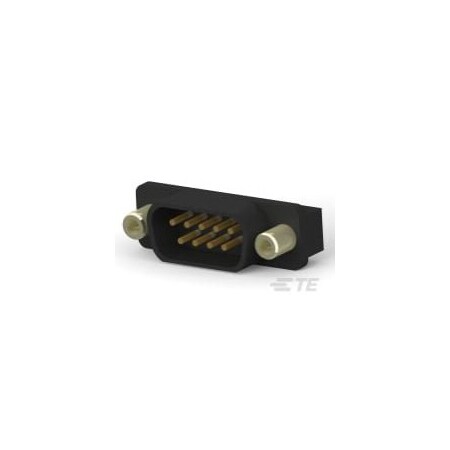

T-E Connectivity 5745071-1 (1 pc) HD-20 PLUG 9P VERT FFSCRLK

Brand: TE Connectivity
PartNumber: 5745071-1
Model: 5745071-1
PackageQuantity: 1
Manufacturer: T-E Connectivity
Label: T-E Connectivity

Attributes

Key	Value
Agency Approvals	UL Recognized ; CSA Cer.
Alternate Mfr Part Numb.	5745071-1
Angle	Straight
Application	Commercial
Backset Spacing	-
Base Product Number	5745071
Category	Connectors, Interconnec.
Centerline (Pitch)	2.74?mm?[?.108?in?]
Circuit Application	Signal
Color	Black
Connector	Printed Circuit Board
Connector Mounting Type	Board Mount
Connector Style	Plug, D-Sub
Connector System	Board-to-Board
Connector Type	Plug, Male Pins
Contact Base Material	Brass
Contact Current Rating .	6
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	-
Contact Material	Brass
Contact Plating	Gold Flash
Contact Shape	Round
Contact Type	Signal
Contact Underplating Ma.	Nickel
Current Rating (Amps)	6A
Description	CONN D-SUB PLUG 9POS VE.
Detailed Description	9 Position D-Sub Plug, .
Dielectric Material	Polyester
Digi-Key Part Number	A34023-ND
Features	-
Flange Feature	Mating Side, Female Scr.
Gender	Male
Housing Material	Thermoplastic
Ingress Protection	-
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	5745071-1
Manufacturer Standard L.	4 Weeks
Material Flammability R.	UL94 V-0
Mating Connector Lock	With
Mating Connector Lock T.	Female Screwlocks, Fixed
Mating Hardware	Fixed Female Screwlocks
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Contacts	9
Number of Positions	9
Number of Rows	2
Operating Temperature	-55?C ~ 105?C
Operating Temperature R.	-55 ? 105??C?[?-67 ? 22.
Package	Tube
Panel Mount Feature	Without
PCB Contact Termination.	Tin
PCB Mount Orientation	Vertical
PCB Mount Retention	With
PCB Mount Retention Type	Mounting Hole
PCB Mounting Style	Through Hole
Primary Type	D-Sub
Product Status	Active
Profile	Standard
Row-to-Row Spacing	.112 in, 2.84 mm
Sealable	No
Series	HD-20 Series, AMPLIMITE.
Shell Material	All Plastic Shell
Shell Material, Finish	-
Shell Size	1
Shell Size, Connector L.	1 (DE, E)
Shell Type	All Plastic
Standards	UL94 V-0
Termination	Solder, Through Hole
Type	PCB Plug
Voltage Rating	125V, 250 V
Wire Gauge	-
Wire Size	20 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
RS Delivers	192-0048	3.6	1	1173		TE Connectivity	3.6 @ 10
Onlinecomponents.com	5745071-1	4.76	1	2307		TE Connectivity / AMP Brand	4.76 @ 10
Newark	42K7367	5.43	34	10		AMP - TE CONNECTIVITY	5.43 @ 34
Arrow	5745071-1	5.602	1	529		TE Connectivity	5.602 @ 10
TE Connectivity	5745071-1	5.60964	1	844		TE Connectivity (TE)	5.60964 @ 10
us.rs-online.com	70041717	6.59	1071	10		TE Connectivity	6.59 @ 1071
Digi-Key	1123799	6.815	1	5999		TE Connectivity AMP Connectors	6.815 @ 10
Zoro	G905908514	7.86	272	10		Te Connectivity	7.86 @ 272
AmazonTP	B00DJUIIDY	11.58	1	10	2	T-E Connectivity	11.58 @ 10
