Amp - Te Connectivity 5745076-3

B00DEDIN1S

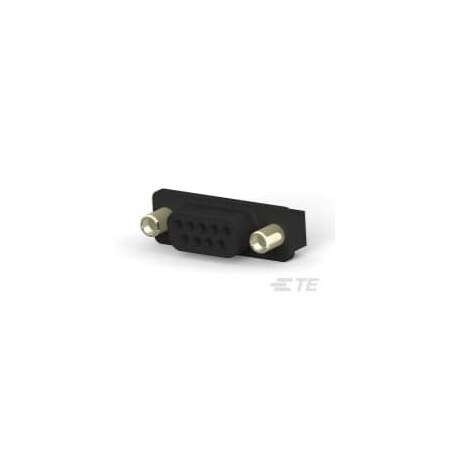

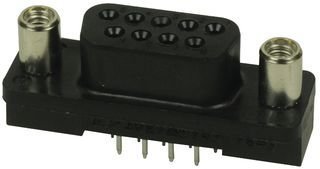

Amp - Te Connectivity D Sub Connector, Standard, 9 Position, Receptacle - 5745076-3

Amp - Te Connectivity D Sub Connector, Standard, 9 Position, Receptacle - 5745076-3zoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; CSA Cer.
Alternate Mfr Part Numb.5745076-3
AngleStraight
ApplicationCommercial
Backset Spacing-
Base Product Number5745076
CategoryConnectors, Interconnec.
Centerline (Pitch)2.74?mm?[?.108?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleD-Sub, Receptacle
Connector SystemBoard-to-Board
Connector TypeReceptacle, Female Sock.
Contact Base MaterialPhosphor Bronze
Contact Current Rating .6
Contact FinishGold
Contact Finish ThicknessFlash
Contact Form-
Contact MaterialPhosphor Bronze
Contact PlatingGold Flash
Contact ShapeRound
Contact TypeSignal
Contact Underplating Ma.Nickel
Current Rating (Amps)6A
DescriptionCONN D-SUB RCPT 9POS VE.
Detailed Description9 Position D-Sub Recept.
Dielectric MaterialPolyester
Digi-Key Part NumberA34024-ND
Features-
Flange FeatureMating Side, Female Scr.
Housing MaterialThermoplastic
Ingress Protection-
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5745076-3
Manufacturer Standard L.4 Weeks
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Female Screwlocks, Fixed
Mating HardwareScrewlocks
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts9
Number of Positions9
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageTube
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeMounting Hole
PCB Mounting StyleThrough Hole
Primary TypeD-Sub
Product StatusActive
ProfileStandard
Row-to-Row Spacing.112 in, 2.84 mm
SealableNo
SeriesHD-20 Series, AMPLIMITE.
Shell MaterialAll Plastic Shell
Shell Material, Finish-
Shell Size1
Shell Size, Connector L.1 (DE, E)
Shell TypeAll Plastic
StandardsUL94 V-0
TerminationSolder, Through Hole
TypePCB Socket
Voltage Rating125V, 250 V
Wire Gauge-
Wire Size20 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5745076-33.19343638TE CONNECTIVITY/AMP BRAND3.19 @ 17
Onlinecomponents.com5745076-33.7412935TE Connectivity / AMP Brand3.74 @ 10
thumbzoomDigi-Key11238003.85813895TE Connectivity AMP Connectors3.858 @ 10
Newark76AC91304.053410AMP - TE CONNECTIVITY4.05 @ 25
TE Connectivity5745076-34.3719611203TE Connectivity (TE)4.37196 @ 10
Future Electronics38298014.861703TE Connectivity4.86 @ 10
thumbzoomZoroG8059084785.151710Te Connectivity5.15 @ 17
us.rs-online.com700417675.5511040TE Connectivity5.55 @ 10
RS Delivers782-96907.2110TE Connectivity7.2 @ 10
