TE Connectivity 5745077-4

B00FRBUW96

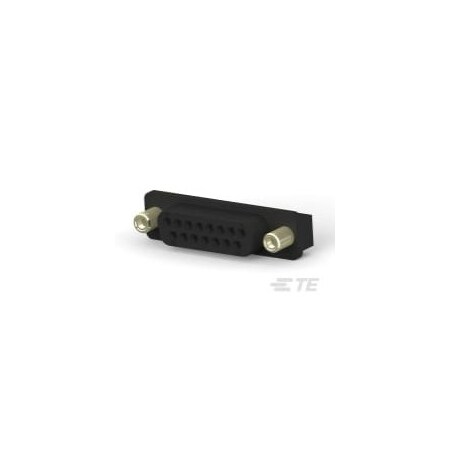

T-E Connectivity 5745077-4 (1 pc) HD-20 RCPT 15P VERT FFSCRLK

T-E Connectivity 5745077-4 (1 pc) HD-20 RCPT 15P VERT FFSCRLKzoom

Attributes

Key Value
Backset Spacing-
Base Product Number5745077
CategoryConnectors, Interconnec.
Centerline (Pitch)2.74?mm?[?.108?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleD-Sub, Receptacle
Connector SystemBoard-to-Board
Connector TypeReceptacle, Female Sock.
Contact Base MaterialPhosphor Bronze
Contact Current Rating .6
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact Form-
Contact MaterialPhosphor Bronze
Contact ShapeRound
Contact TypeSignal
Contact Underplating Ma.Nickel
Country of Origin (subj.Mexico
Current Rating (Amps)6A
DescriptionCONN D-SUB RCPT 15POS V.
Detailed Description15 Position D-Sub Recep.
Dielectric MaterialPolyester
Digi-Key Part NumberA34026-ND
Features-
Flange FeatureMating Side, Female Scr.
Ingress Protection-
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5745077-4
Manufacturer Standard L.38 Weeks
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Female Screwlocks, Fixed
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions15
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageTube
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeMounting Hole
PCB Mounting StyleThrough Hole
Product StatusActive
ProfileStandard
Row-to-Row Spacing.112 in, 2.84 mm
SealableNo
SeriesAMPLIMITE HD-20
Shell Material, Finish-
Shell Size2
Shell Size, Connector L.2 (DA, A)
Shell TypeAll Plastic
TerminationSolder
Voltage Rating125V
Wire Gauge-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark99X66852.361501AMP - TE CONNECTIVITY2.36 @ 10
Sager Electronics5745077-46.07819193TE Connectivity6.07 @ 819
WaldomTE CONNECTIVITY AMP BRAND 5745077-46.96100134TE CONNECTIVITY/AMP BRAND6.96 @ 1001
Onlinecomponents.com5745077-47.411892TE Connectivity / AMP Brand7.41 @ 10
thumbzoomZoroG2010431248.081910Te Connectivity8.0 @ 819
TE Connectivity5745077-49.723651706TE Connectivity (TE)9.72365 @ 10
thumbzoomDigi-Key112380211.751321TE Connectivity AMP Connectors11.75 @ 10
AmazonTPB00HKZKSQY14.431102TE CONNECTIVITY / AMP14.43 @ 10
