CLEVELAND C40320

mpnC40320
brandname: CLEVELAND
manufacturername: CLEVELAND

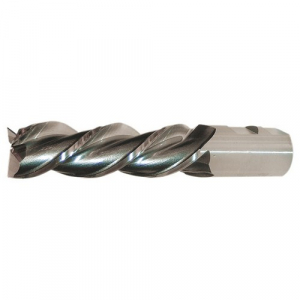

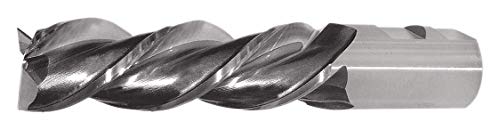

Square End Mill, List PM-539L, 4

Square End Mill, List PM-539L, 4

zoom

Brand: CLEVELAND
PartNumber: C40320
PackageQuantity: 1
Manufacturer: CLEVELAND
Label: CLEVELAND

Attributes

Key	Value
Cast Iron (K) Compatibi.	No
Center Cutting	Yes
Construction	High Performance Finish.
Corner Radius	0.000 in
Cutter Diameter	1 in
Cutting Direction	Left Hand
Decimal Equivalent	1.0000" / 25.40mm
Diameter Fractional	1"
Dimension Type	Fractional Inch
Double Ended	No
End Mill Cutting Type	Center Cutting
End Mill Material	Powdered Metal
End Mill Style	Square
End Style	Square
Finish	Bright, Bright (Uncoate.
Flute Type	Spiral
Grade	High Performance
Hand of Spiral Cut	LHS / LHC
Helix Angle	42 deg, 42 Degrees
Item	Square End Mill
Length of Cut	4 in, 4.0000" / 101.60mm
List Number	PM-539L
List Style	PM-539L
Material	HSS-E (PM), PM HSS-E, P.
Milling Dia.	1 in
Milling Diameter	1"
Neck Dia.	Not Applicable
Neck Length	Not Applicable
Non Ferrous (N) Compati.	Yes
Number of Flutes	3
Overall Length	6-1/2 in, 6 1/2 in, 6.5.
Series	PM-539L
Shank	Straight with Weldon Fl.
Shank Dia.	1 in
Shank Diameter	1 in, 1.0000" / 25.40mm
Shank Type	Straight/Weldon Flat, W.
Single End/Double End	Single End
Stainless (M) Compatibi.	No
Style	PM-539L
Surface Condition	Bright
Tool Size	1" x 1" x 4" x 6-1/2"
Type	Center Cutting High Hel.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6116481	141.49	1	In Stock		Cleveland		141.49 @ 1
	Zoro	G2974568	141.99	1	1		Cleveland	1.01	141.99 @ 1
	Megadepot	C40320	165.5	1	In Stock		Cleveland		165.5 @ 1
	usmegastore.com	C40320	166.3	1	In Stock		Cleveland		166.3 @ 1
	bscsource.com	C40320	375.59	1	In Stock		Cleveland		375.59 @ 1
	National Supply Network	48639363	395.79	1	In Stock		Cleveland		395.79 @ 1
