- mpnC40348
- brandname: CLEVELAND
- manufacturername: CLEVELAND

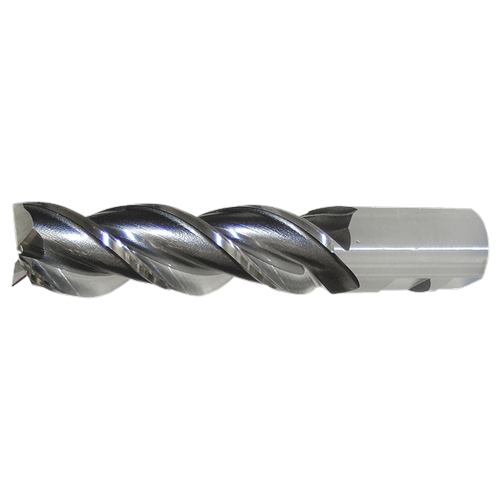

Cleveland C40348 3/4x3/4x1-5/8 W/.090r Ctd Ticn Pm Plus 3f Cc Em
- Brand: Cleveland Twist Drill
- PartNumber: C40348
- Manufacturer: Cleveland
- Label: Cleveland
Attributes
| Key | Value |
|---|
| # of Flutes | 3 |
| Cast Iron (K) Compatibi. | No |
| Corner Radius | 0.090", 0.09 in, 0.09" |
| Cutter Diameter | 3/4 in |
| Cutting Direction | Right Hand |
| Diameter (in) | 0.7500 |
| Diameter (mm) | 19.05 |
| Dimension Type | Fractional Inch |
| Drilling Tool Configura. | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Material | Powdered Metal |
| End Mill Style | Corner Radius |
| Finish | TiCN Coated, TiCN |
| Finish - Machining | TiCN |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | 42 deg, 42 deg. |
| Item | End Mill |
| Length of Cut | 1-5/8 in, 1 5/8 in, 1.6. |
| Length of Cut (in) | 1.6250 |
| Length of Cut (mm) | 41.27 |
| List Number | PM-539R, PM-539R-TC |
| Material | HSS-E (PM), PM HSS-E |
| Material - Machining | Powdered Metal |
| Material Grade - Machin. | High Performance |
| Measurement System | Fractional Inch |
| Milling Dia. | 3/4", 3/4 in |
| Milling Diameter | 3/4" |
| Miniature End Mill | No |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Non Ferrous (N) Compati. | Yes |
| Number of Flutes | 3 |
| Overall Length | 3-7/8", 3 7/8 in, 3-7/8. |
| Overall Length (in) | 3.8750 |
| Overall Length (mm) | 98.42 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N |
| Series | PM-Plus? PM-539R |
| Shank Dia. | 3/4", 3/4 in |
| Shank Diameter | 3/4 in |
| Shank Diameter (in) | 0.7500 |
| Shank Diameter (mm) | 19.05 |
| Shank Type | Straight/Weldon Flat |
| Shank Type - Machining | Weldon Flat |
| Single End/Double End | Single End |
| Size | 3/4" |
| Stainless (M) Compatibi. | No |
| Steel (P) Compatibility | No |
| Style | PM-539R-TC |
| Super Alloy (S) Compati. | No |
| Surface Condition | TiCN |
| Tool Size | 3/4" x 3/4" x 1-5/8" x . |
| Type | Center Cutting High Hel. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6116486 | 75.65 | 1 | In Stock | | Cleveland | | 75.65 @ 1 |
 | Zoro | G2974559 | 80.89 | 1 | 1 | | Cleveland | 0.7 | 80.89 @ 1 |
| Grainger | 438L21 | 86.2 | 1 | In Stock | 8 | CLEVELAND | | 86.2 @ 1 |
 | Megadepot | C40348 | 87.97 | 1 | In Stock | | Cleveland | | 87.97 @ 1 |
 | usmegastore.com | C40348 | 88.36 | 1 | In Stock | | Cleveland | | 88.36 @ 1 |
 | bscsource.com | C40348 | 103.49 | 1 | In Stock | | Cleveland | | 103.49 @ 1 |
| grainger.ca | GNFC40348 | 166.31118684 | 1 | In Stock | | CLEVELAND | 0.7 | 166.31118684 @ 1 |
 | National Supply Network | 394742 | 219.17 | 1 | In Stock | | Cleveland | | 219.17 @ 1 |
