- mpnC40349
- brandname: CLEVELAND
- manufacturername: CLEVELAND

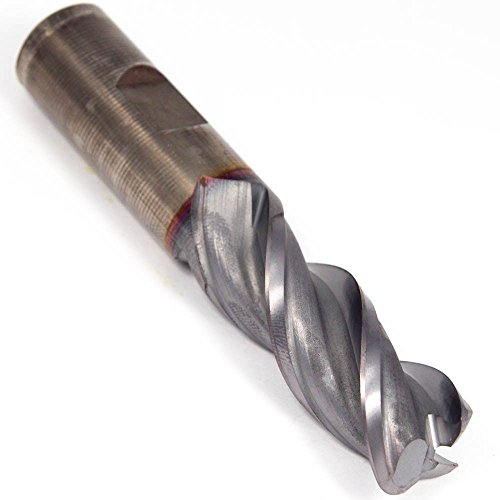

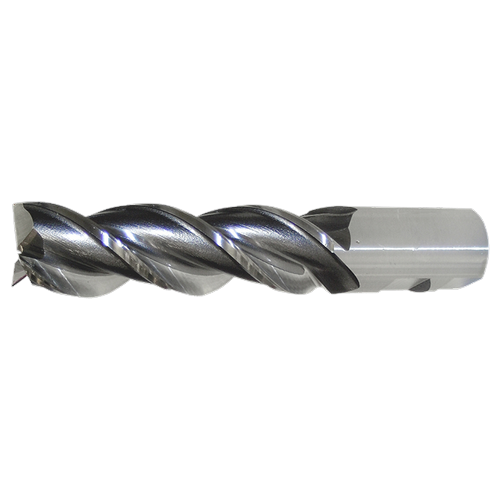

CLEVELAND CR End Mill,3/4",PWD Met,0.1200" rad C40349
- Brand: CLEVELAND
- PartNumber: C40349
- Model: C40349
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLEVELAND
- Label: CLEVELAND
Attributes
| Key | Value |
|---|
| # of Flutes | 3 |
| Cast Iron (K) Compatibi. | No |
| Corner Radius | 0.120", 0.12 in |
| Country of Origin (subj. | United States |
| Cutter Diameter | 3/4 in |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Diameter (in) | 0.7500 |
| Diameter (mm) | 19.05 |
| Dimension Type | Fractional Inch |
| Drilling Tool Configura. | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Material | Powdered Metal |
| End Mill Style | Corner Radius |
| Finish | TiCN Coated, TiCN |
| Finish - Machining | TiCN |
| Flute Type | Spiral |
| Grade | High Performance |
| Hardened (H) Compatibil. | No |
| Helix Angle | 42 deg, 42 Degrees |
| Item | Corner Radius End Mill |
| Length of Cut | 1-5/8 in, 1 5/8 in |
| Length of Cut (in) | 1.6250 |
| Length of Cut (mm) | 41.27 |
| List Number | PM-539R, PM-539R-TC |
| Material | HSS-E (PM), PM HSS-E |
| Material - Machining | Powdered Metal |
| Material Grade - Machin. | High Performance |
| Measurement System | Fractional Inch |
| Milling Dia. | 3/4 in |
| Milling Diameter | 3/4" |
| Miniature End Mill | No |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Non Ferrous (N) Compati. | Yes |
| Number of Flutes | 3 |
| Overall Length | 3 7/8 in, 3-7/8 in |
| Overall Length (in) | 3.8750 |
| Overall Length (mm) | 98.42 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N |
| Series | PM-Plus? PM-539R |
| Shank Dia. | 3/4 in |
| Shank Diameter | 3/4 in |
| Shank Diameter (in) | 0.7500 |
| Shank Diameter (mm) | 19.05 |
| Shank Type | Straight/Weldon Flat, W. |
| Shank Type - Machining | Weldon Flat |
| Single End/Double End | Single End |
| Size | 3/4" |
| Stainless (M) Compatibi. | No |
| Steel (P) Compatibility | No |
| Style | PM-539R-TC |
| Super Alloy (S) Compati. | No |
| Surface Condition | TiCN |
| Tool Size | 3/4" x 3/4" x 1-5/8" x . |
| Type | Center Cutting High Hel. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6116487 | 74.86 | 1 | In Stock | | Cleveland | | 74.86 @ 1 |
 | Megadepot | C40349 | 77.49 | 1 | In Stock | | Cleveland | | 77.49 @ 1 |
 | Zoro | G2974522 | 86.29 | 1 | 1 | | Cleveland | 0.7 | 86.29 @ 1 |
 | usmegastore.com | C40349 | 87.54 | 1 | In Stock | | Cleveland | | 87.54 @ 1 |
 | bscsource.com | C40349 | 110.79 | 1 | In Stock | | Cleveland | | 110.79 @ 1 |
| grainger.ca | GNFC40349 | 163.56764016 | 1 | In Stock | | CLEVELAND | 0.7 | 163.56764016 @ 1 |
 | Guardian | 60778107 | 205.12 | 1 | In Stock | | Cleveland | | 205.12 @ 1 |
 | National Supply Network | 60778107 | 219.17 | 1 | In Stock | | Cleveland | | 219.17 @ 1 |
