- mpn40Q07R25WP
- brandname: Dodge
- manufacturername: Dodge

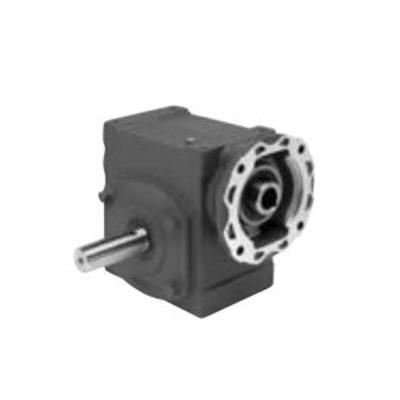

Dodge 40Q07R25WP CENTER DISTANCE: 4 RATIO: 7:1 OUTPUT RPM: 250
- Brand: Dodge
- PartNumber: 40Q07R25WP
Attributes
| Key | Value |
|---|
| Base to output center h. | 4.4400 in, 112.776 mm |
| Case size | 40 |
| Center distance (in) | 4 in, Center distance (. |
| Center to end of shaft . | 8.1200 in, 206.248 mm |
| Finish | White epoxy |
| Gearbox component type | Gearbox |
| Horsepower rating input | 16.3800 hp, 12.215 kW |
| Horsepower rating output | 15.2700 hp, 11.387 kW |
| Housing material | Cast iron |
| Input | 250TC Flange |
| Input flange | 250TC |
| Input HP | 16.38 |
| Input style | Quill |
| Lubrication type | PAG, standard temperatu. |
| Material | Class 30 grey iron |
| Max RPM | 233 RPM |
| Motor compatibility | NEMA motor, 250TC frame |
| Mounting bolt pattern l. | 8.5000 in, 215.9 mm |
| Mounting bolt pattern w. | 5.0000 in, 127.0 mm |
| Nominal ratio | 7 |
| Output | Right side solid output. |
| Output bore/shaft diame. | 1.875 in |
| Output horse power | 15.27 |
| Output shaft center to . | 10.1300 in, 257.302 mm |
| Output style | Right |
| Overhung load | 3280 lbf, 14590.167 N |
| Paint type | White epoxy |
| Paint/coating | White |
| Rated torque output | 4071 in/lb, 4071.0 in/lb |
| Ratio | 7 to 1 |
| Seal type | Single-lip contact |
| Shaft diameter output | 1.8750 in, 47.625 mm |
| Shaft length output | 3.7600 in, 95.504 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 17.5600 hp, 13.094 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | 40Q07R25WP | 3235.11 | 1 | 250 | 17 | Dodge | | 3235.11 @ 250 |
 | MRO Supply | 148893 | 3666.43 | 1 | 250 | | Dodge | | 3666.43 @ 250 |
 | Purvis | 40Q07R25WP | 3969.32 | 1 | 250 | | Dodge | | 3969.32 @ 250 |
| factorysupplyoutlet.com | XM73DB | 4587.54 | 1 | 250 | 25 | DODGE | | 4587.54 @ 250 |
