- mpnPU50-AR PU12-AR
- brandname: GRAINGER APPROVED
- manufacturername: GRAINGER APPROVED

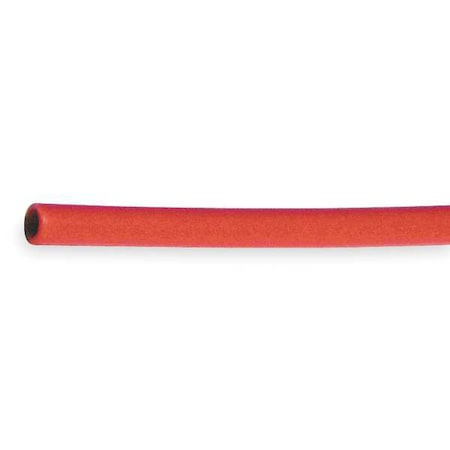

Tubing, Poly, 1/2 In, 150 PSI, 100 Ft, Red
- Brand: GRAINGER APPROVED
- PartNumber: PU50-AR PU12-AR
- PackageQuantity: 1
- Manufacturer: GRAINGER APPROVED
- Label: GRAINGER APPROVED
Attributes
| Key | Value |
|---|
| Application | Air, Lubricants, Water |
| Autoclavable | No |
| Bend Radius | 1 51/500 in |
| Burst Pressure | 600 psi |
| Clarity | Opaque |
| Colour | Red |
| Does Not Contain | Not Applicable |
| Features | Flexibility Over a Broa. |
| Fitting Compatibility | Compression, Barbed, Pu. |
| Flexibility | Flexible |
| Flow Application | Air and Water Lines, Ro. |
| For Environment | Broad Temperature |
| For Fluid Type | Gas, Oil |
| Hardness | Shore A 98 |
| Inside Dia. | 21/64 in |
| Inside Diameter | 5/16 in |
| Item | Tubing |
| Jacket Material | No Jacket |
| Material | Polyurethane |
| Material Trade Name | Surethane |
| Max. Pressure | 150 psi |
| Maximum Operating Press. | 150 psi |
| Maximum Operating Tempe. | 160 Degrees F |
| Maximum Vacuum Pressure | 28 in Hg |
| Minimum Operating Tempe. | -40 Degrees F |
| Outside Dia. | 1/2 in |
| Outside Diameter | 1/2 in |
| Outside Diameter Tolera. | +/-0.005 in |
| Overall Length | 100 ft |
| Peristaltic Pump Compat. | No |
| Petroleum Product Compa. | Lubricants, Mineral Oil. |
| PEX Type | Not Applicable |
| Reinforcement | Not Reinforced |
| Resistance Properties | Abrasion Resistant, Hyd. |
| Standards | NSF 51, NSF 61, RoHS Co. |
| Stripe Colour | No Stripe |
| System of Measurement | Inch |
| Temp. Range | -68 Degrees to 140 De. |
| Tolerance | +/-0.004 in |
| Tradename Material | Surethane |
| Tube Color | Red |
| Tube Form | Coil |
| Tube Hardness | Shore A: 98 |
| Tube Length | 100 ft |
| Tube Material | Polyurethane |
| Tubing Length | 100 ft |
| Type | Standard |
| Vacuum Rated | Vacuum Rated |
| Vacuum Rating | 28 in Hg |
| Wall Thickness | 3/32 in, 0.086 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3116145 | 116.99 | 1 | 46 | | Zoro Select | 6.0 | 116.99 @ 1 |
| grainger.ca | WWG1CTG2 | 194.24745978 | 1 | In Stock | | GRAINGER APPROVED | 6.0 | 194.24745978 @ 1 |
