Hammond Manufacturing EN4SD241210GY

B00HKITYU2

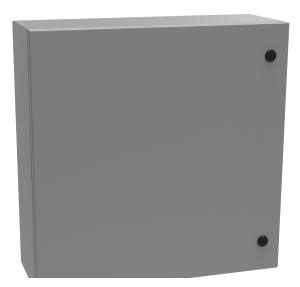

Hammond Manufacturing EN4SD241210GY Type 4 24X12X10 Less Panel

Hammond Manufacturing EN4SD241210GY Type 4 24X12X10 Less Panelzoom

Attributes

Key Value
ApprovalsCE, CSA, UL
Approximate Depth10" (254mm)
Approximate Height24" (610mm)
Approximate Width12" (305mm)
Area (L x W)288in? (1858cm?)
Back Panel NumberEP2412
Base Product NumberEN4SD
Capacity2880 cu-in, 2880, 2880 .
CategoryBoxes, Enclosures, Racks
ColorGray
CompositionMetallic
ConfigurationSmooth Wall
Container TypeBox
Cover DesignHinged
Cover LockingQuarter-Turn Latch
Cover MountingHinged
Cover TypeHinged
Depth10, 10 in, 10 in
Depth (In)10.00
DescriptionBOX STEEL GRAY 24"L X 1.
Description:N4,12 Eclipse encl. - 2.
DesignHinged Door, Lid
Detailed DescriptionBox Metal, Steel Gray H.
Digi-Key Part NumberEN4SD241210GY-ND
Dimensions24 x 12 x 6 . ; 610 x 3.
Dimensions (H x W x D)24 x 12 x 10"
Door DesignHinged (Single Door)
Enclosure MountingWall Mount
Enclosure SeriesEclipse
Estimated Weight28
Family NameEclipse Enclosure Family
Family SeriesHammond Manufacturing E.
FeaturesStainless Steel Hinges
FinishPowder Coated/Smooth, A.
Gross Weight26 lbs
Height24 in, 10.000" (254.00m.
Height (In)24.00
IEC RatingIP66
Inner PanelSold Separately
IP RatingIP66
Item NumberEN4SD241210GY
Latching MechanismQuarter-Turn Latch
Length24
Lock3-Point Handle/Quarter-.
Locking FeatureQuarter Turn
ManufacturerHammond Manufacturing C.
Manufacturer Part NumberEN4SD241210GY
Manufacturer Product Nu.EN4SD241210GY
Manufacturer Standard L.4 Weeks
MaterialSteel, Metal, Mild Stee.
Material Flammability R.-
MFG Part #:EN4SD241210GY
MfrHammond Manufacturing
MountingFeet
Mounting typeWall
Mounting TypeWall
Nema Rating3R, 4
NEMA RatingNEMA 3R ; NEMA 4 ; NEMA.
NEMA Type3R, 4, and 12
Net Weight26 lbs
Nominal Depth10 "
Nominal Height24 "
Nominal Width12 "
Number of Doors1
Options IncludedGasketed Cover, Ground .
PackageBox
Panel IncludedNo
Panel Size10.2 in W x 22.2 in H, .
Part NumberEN4SD241210GY
Product SeriesEclipse
Product StatusActive
RatingsIP66, NEMA 3R,4,12, UL-.
RoHSYes
SeriesEclipse, Eclipse?, Ecli.
Shipping InfoShipped from Digi-Key
Size / Dimension24.000" L x 12.000" W (.
StandardsUL, CSA, IEC, RoHS
Supplier:Hammond Manufacturing
Thickness16 Gauge
TypeJunction Box, 1-Door, W.
UPC062398001487
UPC Code623980014876
UPC:623980014876
Weight26 lbs (11.8 kg)
Width12 in, 12, 12 in
Width (In)12.00
Window/Clear CoverNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomCarlton Bates Company62398001487275.91In StockHAMMOND MANUFACTURING275.9 @ 1
thumbzoomturtle.comHMC EN4SD241210GY306.681In StockHammond Manufacturing306.68 @ 1
thumbzoomGalcoEN4SD241210GY-HMND310.8213Hammond Manufacturing26.0310.82 @ 1
thumbzoomSolutions DirectEN4SD241210GY317.251In StockHammond Manufacturing317.25 @ 1
thumbzoomDigi-Key2568795320.841In StockHammond Manufacturing26.0320.84 @ 1
AmazonTPB00HKITYU2324.141In Stock5Hammond Manufacturing324.14 @ 1
Hawk ElectronicsEN4SD241210GY324.21In StockHammond Mfg.324.2 @ 1
thumbzoomWalker IndustrialEN4SD241210GY325.051In Stock17Hammond Manufacturing325.05 @ 1
Newark60K9478333.67127HAMMOND333.67 @ 1
thumbzoomstandardelectricsupply.com2301730337.711In StockHammond Manufacturing337.71 @ 1
us.rs-online.com70320175347.021In StockHammond Manufacturing347.02 @ 1
thumbzoomAutomation DirectEN4SD241210GY359.0124Hammond28.0359.0 @ 1
Dale-ElectricEN4SD241210GY360.141In StockHammond Manufacturing Co., Inc.360.14 @ 1
thumbzoommotorsandcontrol.comEN4SD241210GY371.491In StockHammond Manufacturing28.0371.49 @ 1
thumbzoomgordonelectricsupply.comEN4SD241210GY375.01In StockHAMMOND MFG375.0 @ 1
kscdirect.comHAM EN4SD241210GY390.031In StockHammond Manufacturing390.03 @ 1
GuardianHAMM-EN4SD241210GY520.321In StockHammond Mfg520.32 @ 1
