Leeson 825086.00

B00EP3MRMM

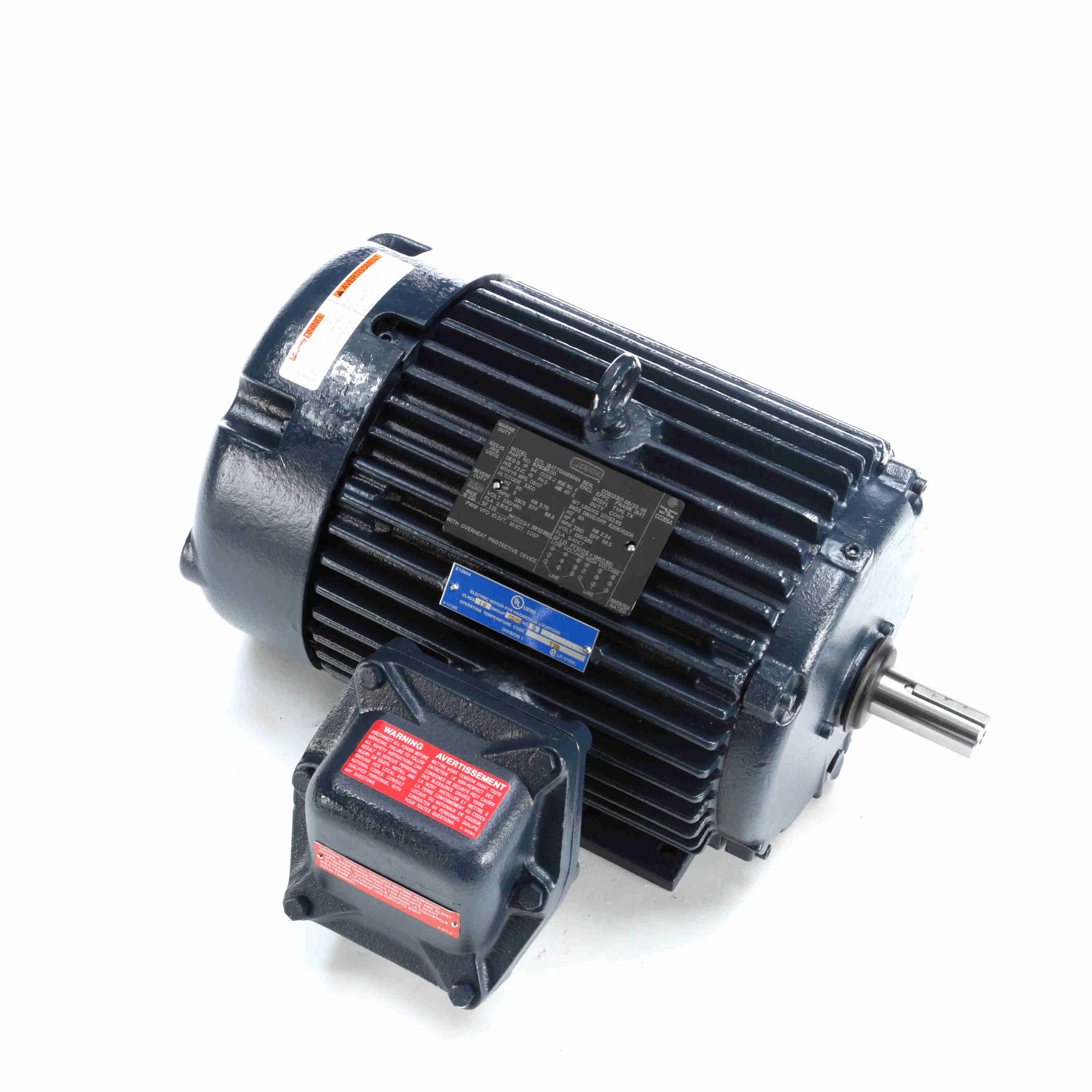

Leeson 825086.00 Explosion-Proof Motor, 3 Phase, 184T Frame, Rigid Mounting, 5HP, 3600 RPM, 230/460V Voltage, 60Hz Fequency

Leeson 825086.00 Explosion-Proof Motor, 3 Phase, 184T Frame, Rigid Mounting, 5HP, 3600 RPM, 230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating11.8/5.9 A
ApprovalsCSA, UL
Bearing TypeBall
Class/Group184TTGN16504
CompositionCast Iron
Country of Origin (subj.United States
Description:OBSOLETE REPLACED BY 18.
Dimensions17.87 in L x 15.16 in W.
EnclosureEXPLOSION PROOF
Enclosure TypeEPFC
Family SeriesLeeson Motors, Explosio.
Frame184T
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower5 hp
Insulation ClassClass F
Item Number825086.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number825086.00
MaterialCast Iron
MFG Part #:825086.00
Model Number184TTGN16504
Motor TypeCapacitor Start
Mounting TypeRigid Base, C-Face Foot.
NEMA Frame184T
Net Weight117 lbs
Nominal Voltage240 VAC, 480 VAC
Overall Length17.62 "
Phase3, 3 ph
Product SeriesEXPLOSION PROOF
RotationReversible
RPM3,600 RPM
Service Factor1.15
Shaft DiameterUL;CSA
Shaft Size1.13 in Dia x 2.75 in L
Special FeaturesExplosion Proof AC Moto.
Speed3505 rpm
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720092811

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco825086.00-LEES1408.851In StockLeeson117.01408.85 @ 1
thumbzoomZoroG24838321460.01In Stock10Leeson1460.0 @ 1
AmazonTPB0773TY2YB1507.061In Stock10Leeson Electric1507.06 @ 1
thumbzoomWalker Industrial825086-001644.131In Stock10Leeson1644.13 @ 1
kscdirect.comLEE 825086.001781.411In StockLEESON ELECTRIC CORPORATION1781.41 @ 1
thumbzoomRaptor SuppliesAJ2UMH2068.11428851In StockLEESON2068.1142885 @ 1
