Meziere WPX752

mpnWPX752
brandname: Meziere
manufacturername: Meziere

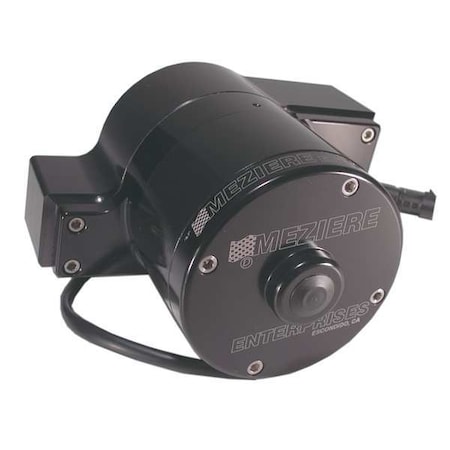

Aluminum 5/16 HP Centrifugal Pump 12V

Brand: Meziere
PartNumber: WPX752
PackageQuantity: 1
Manufacturer: Meziere
Label: Meziere

Attributes

Key	Value
Amps	4/12
Bearing Type	Ball
Best Efficiency GPM @ H.	25 gpm @ 5.8 ft
Best Efficiency Head	6 ft
Best Efficiency Range G.	17.50 to 30 gpm @ 6.90 .
Compatible Discharge Pi.	1 in
Compatible Intake Pipe .	1 1/2 in
Discharge Type	NPT
Duty	Continuous
Duty Cycle	Continuous
Features	Double-Lip Seal, Preset.
Flow Rate @ 1 ft of Hea.	42 gpm
Flow Rate @ 10 ft of He.	1 gpm
Flow Rate @ 100 ft of H.	Not Applicable
Flow Rate @ 140 ft of H.	Not Applicable
Flow Rate @ 15 ft of He.	Not Applicable
Flow Rate @ 160 ft of H.	Not Applicable
Flow Rate @ 180 ft of H.	Not Applicable
Flow Rate @ 20 ft of He.	Not Applicable
Flow Rate @ 200 ft of H.	Not Applicable
Flow Rate @ 240 ft of H.	Not Applicable
Flow Rate @ 280 ft of H.	Not Applicable
Flow Rate @ 30 ft of He.	Not Applicable
Flow Rate @ 300 ft of H.	Not Applicable
Flow Rate @ 5 ft of Hea.	28.5 gpm
Flow Rate @ 50 ft of He.	Not Applicable
Flow Rate @ 60 ft of He.	Not Applicable
Flow Rate @ 70 ft of He.	Not Applicable
Flow Rate @ 80 ft of He.	Not Applicable
Flow Rate @ 90 ft of He.	Not Applicable
For Use With Potable Sy.	No
GPH of Water @ 5 Ft. of.	29
GPM @ 1 Ft. of Head	42
GPM @ 7 Feet of Head	17
GPM of Water @ 0 Ft. of.	44
GPM of Water @ 10 Ft. o.	1
GPM of Water @ 15 Ft. o.	0
GPM of Water @ 20 Ft. o.	0
GPM of Water @ 25 Ft. o.	0
GPM of Water @ 30 Ft. o.	0
GPM of Water @ 40 Ft. o.	0
GPM of Water @ 5 Ft. of.	28.5
GPM of Water @ 50 Ft. o.	0
GPM of Water @ 60 Ft. o.	0
GPM of Water @ 70 Ft. o.	0
GPM of Water @ 80 Ft. o.	0
Height	5 13/16 in
Horsepower	5/16 hp
Housing Material	Aluminum
Housing Material - Pumps	Aluminum
HP	5/16
HP - Pumps	5/16 hp
Impeller Design	Open
Impeller Material	Aluminum
Impeller Type	Open
Inlet	1-1/2"
Inlet Pressure	30 psi
Inlet Size - Pumps	1-1/2 in NPT
Intake and Discharge Si.	1 1/2 in , 1 in
Item	Vehicle Pump
Item - Straight Centrif.	Straight Centrifugal Hi.
Length	6 11/16 in
Length (Straight Wirewa.	6 11/16 in
Manufacturer Warranty L.	1 yr
Manufacturers Warranty .	1 yr
Max. Case Pressure	35 psi
Max. GPM @ Head	40 @ 2.3 ft
Max. Head	10 1/10 ft
Max. Liquid Temp.	250 Degrees F
Max. Pressure	35 psi
Max. Pressure - Pumps	35 psi
Max. Specific Gravity	1.16
Maximum Feet of Head	10.1 ft
Maximum RPM	2,200 RPM
Min. GPM @ Head	10 @ 8.2 ft
Motor Enclosure	Open Dripproof
Motor Enclosure - Pumps	Open Dripproof
Motor RPM	2200
Motor Type	Brushed
Nameplate Voltage	12V DC
NPSHr	30 psi
Outlet	1"
Outlet Size - Pumps	1 in NPT
Overall Length	6.6 in
Overall Width	4 in
Phase	Single
Phase - Pumps	1
Priming	Manual
Pump Housing Material	Aluminum
Pump Housing Material a.	Aluminum , Open Drippro.
Seal Material	Carbon, Ceramic
Seal Type	Double Lip
Shaft Material	Stainless Steel
Specific Gravity (Maxim.	1.16
Voltage	12VDC
Voltage - Pumps	12V DC
Wetted Material	Aluminum, Carbon, Ceram.
Wetted Materials	Aluminum, Anodized Alum.
Width	4 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G4546832	521.0	1	In Stock	26	Meziere	7.05	521.0 @ 1
	sustainablesupply.com	C1740933	779.04	1	In Stock		Meziere	7.05	779.04 @ 1
