Molex 43045-1200

B005T8U3P0

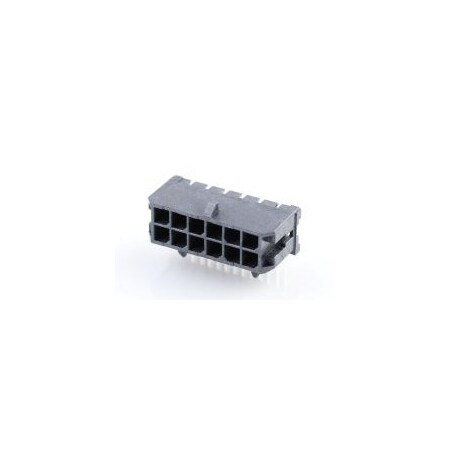

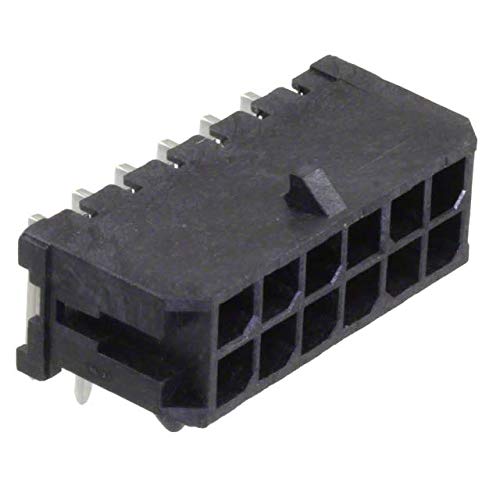

MOLEX 43045-1200 PLUG & SOCKET CONNECTOR, HEADER, 12POS, 3MM

MOLEX 43045-1200 PLUG & SOCKET CONNECTOR, HEADER, 12POS, 3MMzoom

Attributes

Key Value
Agency ApprovalsCSA ; UL ; TUV
Alternate Mfr Part Numb.43045-1200
Alternate Part No.538-43045-1200
AngleRight Angle
ApplicationWire-to-Board
BrandMolex
ColorBlack
Contact FinishTin Plated
Contact MaterialBrass
Contact PlatingTin
Contact Plating Thickne.0.254 ?m
Current Rating8.5 A, 5 A
Family NameMicro-Fit 3.0
FeaturesGlow-Wire Capable; Surf.
Flammability RatingUL 94V-0
For Use WithPCB Right-Angle Header
GenderMale
Hole Center to Center3 mm
Housing MaterialPolyester, Thermoplastic
ManufacturerMolex
Manufacturer Part No.43045-1200
MaterialHigh Temperature Thermo.
Max. Temp.260?C
Max. Voltage600V
Mounting AngleRight
Number of Circuits12
Number of Contacts12
Number of Positions12
Number of Rows2
Operating Temperature-40 to +105 ?C
OrientationRight Angle
Overall Length0.551 "
Package Quantity1
PackagingTray
Part # Aliases0430451200
Pin Spacing0.118 "
Pitch3.00 mm (0.118"), 3 mm
Plating MaterialTin
Primary TypeSoft Shell
Product CategoryHeaders & Wire Housings
Product HeaderMicro-Fit 3.0? Wire-to-.
Product TypeHeader Assemblies
Row Spacing3 mm
Series43045, 43045 Series
Special FeaturesLow-Halogen
StandardsCSA Certified; UL E2917.
Temperature Range-40 to 105 C
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationThrough Hole
Termination StyleThrough Hole
TradenameMicro-Fit 3.0
TypeRight Angle Header, Pin.
Voltage Rating600 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Sager Electronics04304512000.91512250Molex0.915 @ 25
Power and Signal Group04304512001.1082100825Molex1.1082 @ 1008
WaldomMOLEX 43045-12001.1750384MOLEX1.17 @ 50
Onlinecomponents.com43045-12001.351363MOLEX / WALDOM1.35 @ 25
thumbzoomNEP Electronics43045-12001.4853502692Molex1.4853 @ 50
thumbzoomjensentools.com101893191.56125Molex1.56 @ 25
Arrow43045-12002.32615251Molex2.326 @ 25
thumbzoomNewark98K93252.5118656MOLEX2.5 @ 25
thumbzoomTMEMX-43045-12002.621780MOLEX2.62 @ 25
thumbzoomDigi-KeyWM1818-ND2.622125Molex2.622 @ 25
us.rs-online.com700909293.38128Molex Incorporated3.38 @ 25
RS Delivers233-29993.92761550Molex3.9276 @ 25
thumbzoomswatee.com43045-12004.111920Molex4.1 @ 25
thumbzoomRadwell43045-12005.01025MOLEX5.0 @ 25
thumbzoomZoroG2748484107.55025Molex107.5 @ 50
