Woodhead / Molex 53258-0929

mpn53258-0929
brandname: MOLEX
manufacturername: MOLEX

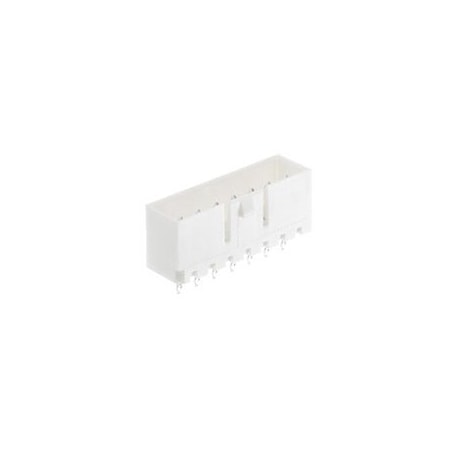

53258-0929,Conn Shrouded Header (4 Sides) HDR 9 POS 3.5mm Press Fit ST Thru-Hole Tray (100 Items)

Brand: Woodhead / Molex
PartNumber: 53258-0929
Model: 53258-0929
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Allowable Current(A)	5.5
Applications	-
Base Product Number	053258
Category	Connectors, Interconnec.
Circuits (Loaded)	9
Circuits (maximum)	9
Connector Shape	Square
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	39.4?in (1.00?m)
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	0.138"" (3.50mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current - Maximum per C.	5.5A
Current Rating	5.5 A
Current Rating (Amps)	-
Durability (mating cycl.	30
Fastening Type	Locking Ramp
Features	-
Flammability	94V-0
Guide to Mating Part	Yes
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.413"" (10.49mm)
Insulation Material	Polybutylene Terephthal.
Lock to Mating Part	Yes
Mated Stacking Heights	-
Material - Metal	Brass
Material - Plating Mati.	Tin
Material - Plating Term.	Tin
Material Flammability R.	UL94 V-0
Mating partner	51067
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	9
Number of Positions	9
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	-
Package	Tray
Package Quantity	1
Part Status	Active
PC Tail Length	3.50mm
PCB Thickness - Recomme.	1.60mm
Pitch - Mating	0.138"" (3.50mm)
Pitch - Mating Interface	3.50mm
Plating Material	Tin
Plating min - Mating	1.016?m
Plating min - Terminati.	1.016?m
Row Spacing - Mating	-
Series	53258, 53258 Series
Shrouded	Fully
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Temperature Range - Ope.	-40? to +105?C
Termination	Press-Fit, Solder
Termination Interface: .	Through Hole
UL	E29179
Voltage - Maximum	250V
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	MOLEX 53258-0929	0.83	65	51479	MOLEX	0.83 @ 100
Newark	59J0199	1.08	5600	100	MOLEX	1.08 @ 5600
jensentools.com	10193707	1.11	1	52779	Molex	1.11 @ 100
Digi-Key	3263121	1.1286	1	5598	Molex	1.1286 @ 100
Misumi USA	53258-0929	1.29	1	100	Molex	1.29 @ 100
us.rs-online.com	71464292	1.47757	1	100	Molex Incorporated	1.47757 @ 100
Radwell	53258-0929	5.0	1	100	MOLEX	5.0 @ 100
Zoro	G2091963	100.75	65	100	Molex	100.75 @ 100
