Molex / Waldom 46114-2201

B00GQQUHWI

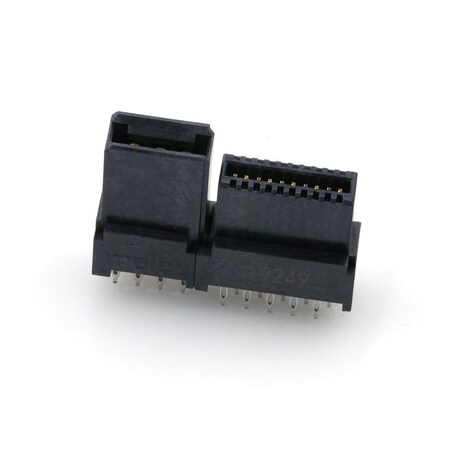

Molex / Waldom 46114-2201 Connector Power

Molex / Waldom 46114-2201 Connector Powerzoom

Attributes

Key Value
ApplicationBoard-to-Board, Power
Base Product Number046114
CategoryConnectors, Interconnec.
ColorBlack
Connector StyleLPHPower
Connector TypeReceptacle, Outer Shrou.
Connector Usage-
Contact FinishGold Plated, Gold
Contact Finish Thickness30.0?in (0.76?m)
Contact Layout, Typical20 Signal, 2 Power
Contact Plating Thickne.0.762 ?m
Current Rating30 A
Current Rating (Amps)-
DescriptionCONN RCPT LPHPOWER 22PO.
Detailed Description22 Connector Receptacle.
Digi-Key Part Number0461142201-ND
FeaturesSurface Mount Compatibl.
Flammability RatingUL 94V-0
Hole Center to Center1.27 mm, 12 mm (Mating .
ItemPower Connector
ManufacturerMolex
Manufacturer Product Nu.0461142201
Manufacturer Standard L.15 Weeks
MaterialHigh Temperature Thermo.
Material Flammability R.UL94 V-0
Max. Temp.105?C
Max. Voltage250V AC/DC
MfrMolex
Mounting TypeThrough Hole
Number of Columns-
Number of Contacts22
Number of Positions22
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
PackageTray
Package Quantity1
Pitch-
Product StatusActive
SeriesEXTreme LPHPower 46114,.
StandardsCSA Certified; UL E29179
Sub-CategoryPCB Receptacles
Terminal FinishTin Plated
Terminal TypeThrough Hole - Complian.
TerminationPress-Fit
Voltage Rating250V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com46114-22014.9168MOLEX / WALDOM4.9 @ 25
WaldomMOLEX 46114-22015.21567MOLEX5.2 @ 25
thumbzoomjensentools.com101902676.7617987Molex6.76 @ 25
Newark56R03577.2649525MOLEX7.26 @ 495
thumbzoomDigi-Key33114828.84851249525Molex8.848512 @ 495
AmazonSCB07QMYJBDN82.28125Molex / Waldom82.28 @ 25
thumbzoomZoroG005964618110.851525Molex110.85 @ 25
