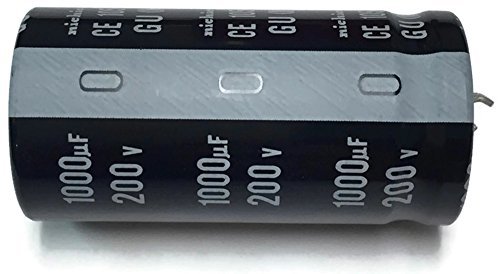

Nichicon LGU2D102MELA Capacitor Aluminum Electrolytic Cap 1000uF 200V 20% Temp.105 Snap-In 25X50mm

mpnLGU2D102MELA
brandname: Nichicon
manufacturername: Nichicon

Nichicon LGU2D102MELA Capacitor Aluminum Electrolytic Cap 1000uF 200V 20% Temp.105 Snap-In 25X50mm

Nichicon LGU2D102MELA Capacitor Aluminum Electrolytic Cap 1000uF 200V 20% Temp.105 Snap-In 25X50mm

zoom

Manufacturer: NICHICON
Label: NICHICON

Attributes

Key	Value
Applications	General Purpose
Capacitance	1000 uF, 1000 ?F
Capacitance Range	1000 to 9999 uF
Case Size	Dia. 0.984 x L 1.969 in.
Category	Capacitors
Configuration	Radial ; Can
Description	CAP ALUM 1000UF 20% 200.
Detailed Description	1000 ?F 200 V Aluminum .
Digi-Key Part Number	493-2710-ND
Element Material	Aluminum Electrolytic
ESR (Equivalent Series .	-
Height - Seated (Max)	1.969" (50.00mm)
Lead Spacing	0.394 In. (10.00 mm), 0.
Lifetime @ Temp.	3000 Hrs @ 105?C
Manufacturer	Nichicon
Manufacturer Product Nu.	LGU2D102MELA
Manufacturer Standard L.	35 Weeks
Mfr	Nichicon
Minimum Operating Tempe.	-40 C
Mounting Type	Through Hole, PCB Mount
Operating Temperature	-40?C ~ 105?C
Package	Bulk
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Product Status	Active
Ratings	-
Ripple Current @ High F.	3.45 A @ 50 kHz
Ripple Current @ Low Fr.	2.3 A @ 120 Hz
Series	LGU Series, LGU
Size / Dimension	0.984" Dia (25.00mm)
Surface Mount Land Size	-
Termination	Snap-In
Tolerance	?20%, 20% %
Voltage - Rated	200 V
Voltage Rating	200 VDC

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	LGU2D102MELA	3.82	50	6		NICHICON		3.82 @ 50
	Newark	54K5914	3.96	1	498		NICHICON		3.96 @ 6
	Digi-Key	1004371	4.48	1	6		Nichicon		4.48 @ 6
	Mouser	647-LGU2D102MELA	4.49	1	533		Nichicon		4.49 @ 6
	Hotenda	H243482	4.84	1	6		Nichicon		4.84 @ 6
	us.rs-online.com	70188168	5.3	250	6		Nichicon		5.3 @ 250
	RS Delivers	844-2803	7.512	1	6		Nichicon		7.512 @ 6
