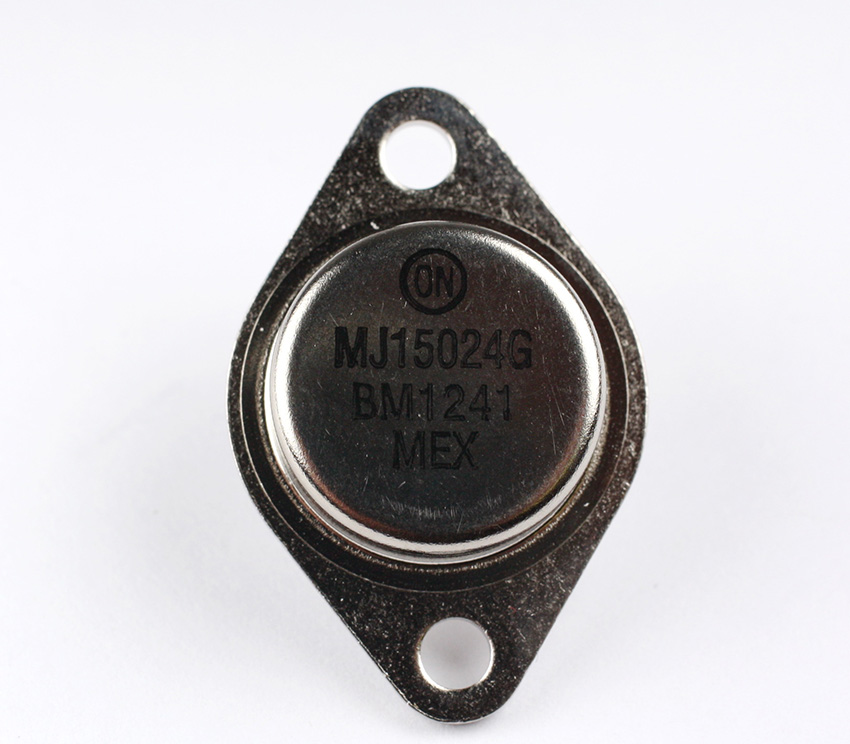

ON Semiconductor MJ15024G

mpnMJ15024G
brandname: ON Semiconductor
manufacturername: ON Semiconductor

Transistors Bipolar - BJT 16A 250V 250W NPN (1 piece)

Transistors Bipolar - BJT 16A 250V 250W NPN (1 piece)

zoom

Brand: ON Semiconductor
PartNumber: MJ15024G
Model: MJ15024G
Size: 1 Piece
PackageQuantity: 1
Manufacturer: ON SEMICONDUCTOR
Label: ON SEMICONDUCTOR

Attributes

Key	Value
Alternate Mfr Part Numb.	5449646
Base Product Number	MJ15024
Category	Discrete Semiconductor .
Collector Current	16 A
Collector to Base Volta.	350 V
Collector to Emitter Vo.	250 V
Configuration	Common Base
Current	16
Current - Collector (Ic.	16 A
Current - Collector Cut.	500?A
DC Current Gain (hFE) (.	15 @ 8A, 4V
Dimensions	39.37 x 8.51 x 26.67 mm
Emitter to Base Voltage	5 V
Frequency - Transition	4MHz
Height	1.05" (26.67mm)
Length	1.55 in
Material	Si
Maximum Operating Tempe.	+200 ?C
Mfr	onsemi
Minimum Operating Tempe.	-65 ?C
Mounting Type	Through Hole
Number of Elements per .	1
Number of Pins	2
Operating Frequency	4 MHz
Operating Temperature	-65?C ~ 200?C (TJ)
Package	Tray
Package / Case	TO-204AA, TO-3
Package Type	TO-204AA
Part Status	Active
Polarity	NPN
Power - Max	250 W
Power Dissipation	250 W
Primary Type	Si
Product Header	NPN Silicon Power Trans.
Resistance, Thermal, Ju.	0.7 ?C/W
Series	-, Transistor Series
Supplier Device Package	TO-204 (TO-3)
Temperature Operating R.	-65 to +200 ?C
Transistor Type	NPN
Type	Power
Vce Saturation (Max) @ .	4V @ 3.2A, 16A
Voltage - Collector Emi.	250 V
Voltage, Breakdown, Col.	250 V
Voltage, Collector to E.	4 V
Width	0 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MCM Electronics	123-MJ15024G	3.7	1	10		On-Semiconductor		3.7 @ 10
	Hotenda	H2049187	4.998	1	945		ON Semiconductor		4.998 @ 10
	AmazonSC	B00GRKUIY0	5.19	1	10		ON Semiconductor		5.19 @ 10
	Arrow	MJ15024G	5.534	100	200		ON Semiconductor		5.534 @ 100
	Newark	38K5641	6.97	1	139		ONSEMI		6.97 @ 10
	BD Enterprises	MJ15024G	7.25	1	10		On Semiconductor		7.25 @ 10
	RS Delivers	544-9646	8.316	1	257		onsemi		8.316 @ 10
	Digi-Key	919456	8.609	500	10		onsemi		8.609 @ 10
	us.rs-online.com	70099514	10.83	1	10		ON Semiconductor		10.83 @ 10
	AmazonTP	B00LPN8XRI	41.62	1	10	2	ON SEMICONDUCTOR		41.62 @ 10
