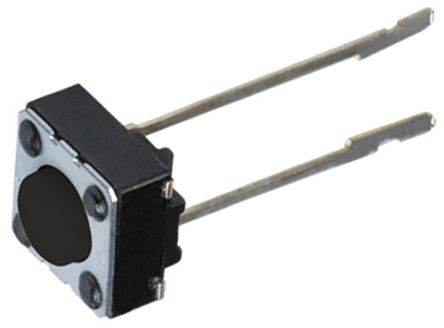

PANASONIC EVQ-21509K SWITCH, TACTILE, SPST-NO, 20mA, 15VDC (1 piece)

mpnEVQ-21509K
brandname: Panasonic
manufacturername: Panasonic

PANASONIC EVQ-21509K SWITCH, TACTILE, SPST-NO, 20mA, 15VDC (1 piece)

PANASONIC EVQ-21509K SWITCH, TACTILE, SPST-NO, 20mA, 15VDC (1 piece)

zoom

PackageQuantity: 1
Manufacturer: PANASONIC
Label: PANASONIC

Attributes

Key	Value
Actuator Colour	Black
Actuator Height off PCB.	9.50mm
Actuator Length	9.5mm
Actuator Orientation	Top Actuated
Actuator Type	Push Plate, Standard
Brand	Panasonic
Circuit	SPST-NO
Contact Configuration	SPST
Contact Current Rating	20 mA
Contact Rating @ Voltage	0.02A @ 15VDC
Height	9.5mm
Illumination	Non-Illuminated
Lead Free Status / RoHS.	RoHS Compliant
Manufacturer Part Number	EVQ-21509K
Maximum Operating Tempe.	+70?C
Mechanical Life	100000Cycles, 100,000 C.
Minimum Operating Tempe.	-20?C
Mounting Type	Through Hole
Operating Force	1.6 N, 160gf
Operating Temperature	-20
Operating Temperature R.	-20 ? +70?C
Outline	6.00mm x 6.00mm
Packaging	Reel
Series	EVQ2
Standard Package	1,000
Switch Function	Off-Mom
Switch Travel	0.25mm
Terminal Type	Solder
Termination Style	PC Pin

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	iodParts	EVQ-21509K	0.0813	4000	4000		Panasonic		0.0813 @ 4000
	Verical	EVQ-21509K	0.136	1000	4000		Panasonic		0.136 @ 1000
	Future Electronics	3028185	0.16704	1000	500		Panasonic		0.16704 @ 1000
	RS Delivers	815-6546	875.184	1	500		Panasonic		875.184 @ 500
