Ultradex E12S MWLNL3

B018KKQTXS

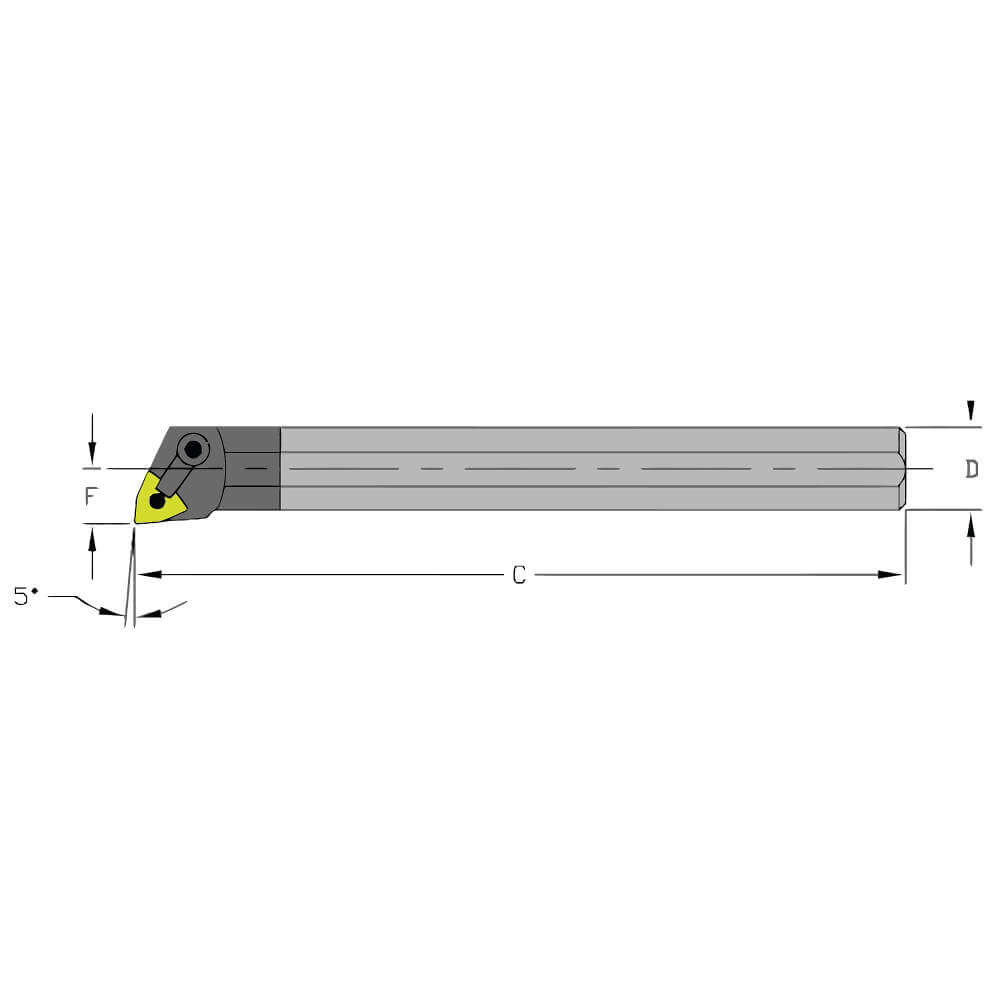

Ultra-Dex E12S MWLNL3 Carbide Boring Bar to Hold a Negative WNMG 332 at -5 Degree Lead, Left Hand, Coolant Thru, 0.750" x 10", 0.920" Minimum Bore

Ultra-Dex E12S MWLNL3 Carbide Boring Bar to Hold a Negative WNMG 332 at -5 Degree Lead, Left Hand, Coolant Thru, 0.750" x 10", 0.920" Minimum Borezoom

Attributes

Key Value
ANSI CodeE12S MWLNL3
ANSI NumberE12S MWLNL3
Bar Dia.0.750"
Cutting DirectionLeft Hand
Cutting Edge Type-5 Degrees
For Use WithWNMG 332
Inscribed Circle3/8"
Insert Holding TypeClamp And Lock Pin
Insert ShapeTrigon
Insert Size332
Insert Thickness0.1875"
ItemIndexable Boring Bar
Lead Angle-5 Degrees
Left/Right HandLeft Hand
Min. Bore0.920"
Min. Bore Dia.0.9200 in
Mounting StyleClamp And Lock Pin
Number of Coolant Holes1
Overall Length10 in
RakeNegative
Shank Dia.3/4 in
Shank MaterialCarbide
StyleCoolant-Thru
TypeTurning

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG9230593595.991In StockUltra-Dex Usa2.0595.99 @ 1
thumbzoomRaptor SuppliesAH3VGB847.6887511In StockULTRA-DEX USA847.688751 @ 1
