- mpn4JMW1
- brandname: Dayton
- manufacturername: Dayton

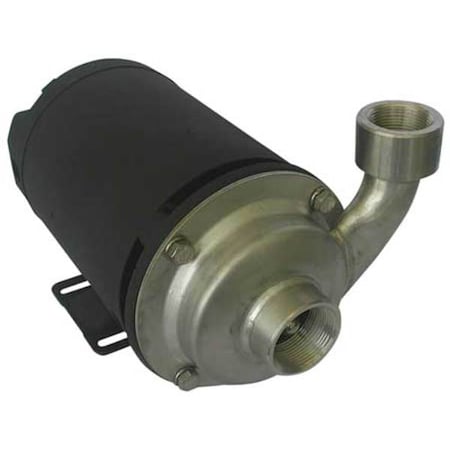

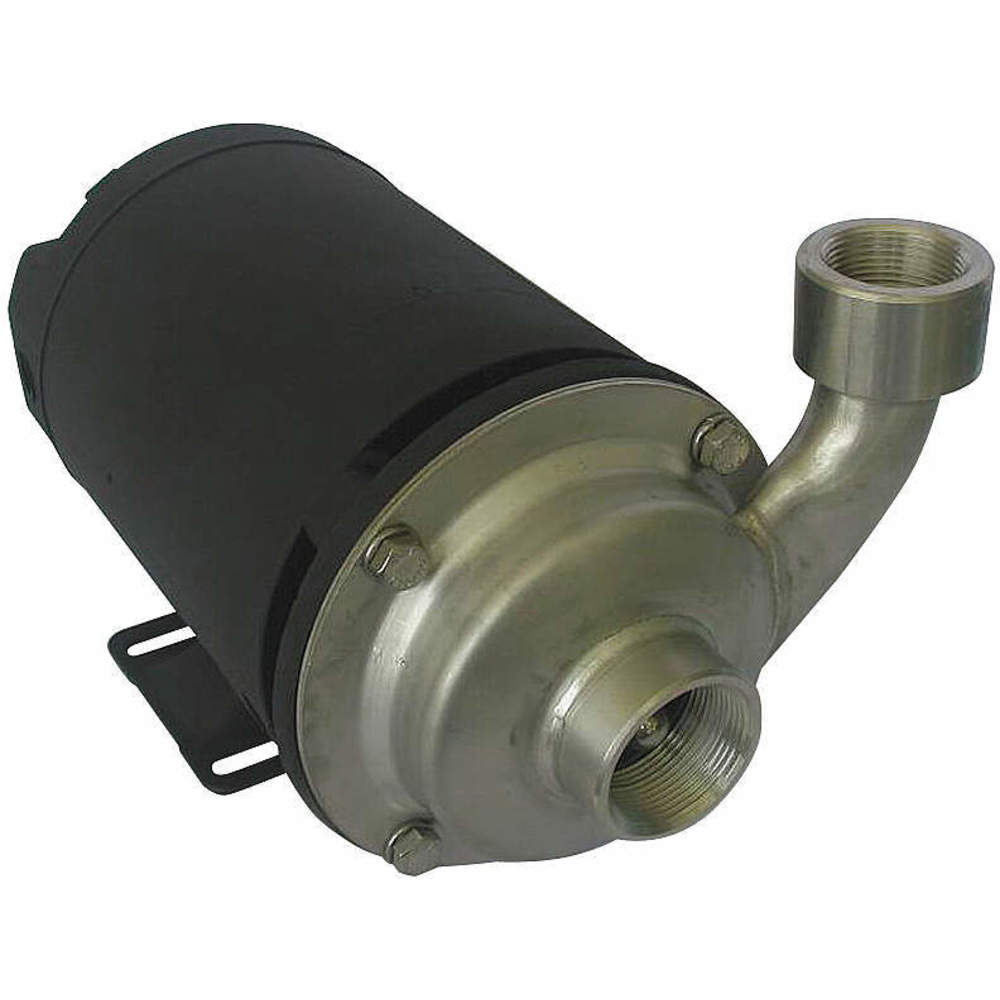

Pump, 1 1/2 HP, 230/460V, 5.8/2.9 Amp
- Brand: Dayton
- PartNumber: 4JMW1
- Color: Stainless steel
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Agency Compliance | CUS |
| Amps | 5.8/2.9 |
| Application | Liquids Transfer, Circu. |
| Bearing Type | Ball |
| Best Efficiency GPM @ H. | 50 gpm @ 48 ft., 50 gpm. |
| Best Efficiency Range G. | 16 to 97 gpm @ 60 to 23. |
| Brand | Dayton |
| Cord Length | Not Applicable |
| Current Stock | 7 |
| Discharge Pipe Size | 1 1/4 in |
| Drain Plug | No |
| Duty | Continuous |
| GPM of Water @ 10 Ft. o. | 108 |
| GPM of Water @ 15 Ft. o. | 105 |
| GPM of Water @ 20 Ft. o. | 100 |
| GPM of Water @ 25 Ft. o. | 95 |
| GPM of Water @ 30 Ft. o. | 81 |
| GPM of Water @ 40 Ft. o. | 70 |
| GPM of Water @ 5 Ft. of. | 116 |
| GPM of Water @ 50 Ft. o. | 44 |
| GPM of Water @ 60 Ft. o. | 13 |
| Height | 8", 8 in |
| Housing Material | 304 Stainless Steel |
| HP | 1 1/2 hp, 1-1/2 |
| Hz | 60 |
| Impeller Material | 304 SS |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet | 1-1/2" NPT, 1-1/2 in NPT |
| Inlet Pressure | 121 PSI |
| Intake Pipe Size | 1 1/2 in |
| International Shipping | No |
| Item | Centrifugal Pump, Chemi. |
| Length | 13-11/16", 13 11/16 in |
| Length (Straight Wirewa. | 13 11/16 in |
| Manufacturers Warranty . | 1 yr., 1 yr |
| Max. Case Pressure | 150 PSI |
| Max. Dia. Solids | 1/8", 1/8 in |
| Max. Fluid Viscosity | 31 SSU |
| Max. GPM @ Head | 116 gpm @ 5 ft, 116 gpm. |
| Max. Head | 65 ft, 65 ft. |
| Max. Liquid Temp. | 200 Degrees F |
| Max. Specific Gravity | 1.0 |
| Min. GPM @ Head | 13 gpm @ 60 ft. |
| Motor Enclosure | ODP |
| Motor RPM | 3,450 |
| Motor Type | 3-Phase |
| Mpn | 4JMW1 |
| NEMA/IEC Frame | 56J |
| Outlet | 1-1/4" NPT, 1-1/4 in NPT |
| Overall Height | 8 in |
| Overall Length | 13.7 in |
| Overall Width | 8.3 in |
| Phase | 3 |
| Port Rotation | 90 Degrees Increments |
| Screw Material | Stainless Steel |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shaft Outer Diameter | 7/16 in |
| SKU | ZO-G1376602 |
| Solid Diameter (Maximum) | 0.13 in |
| SubCategory | Pumps |
| UPC | 190735326657 |
| Voltage | 230/460 |
| Wetted Materials | Carbon, Ceramic, 304 St. |
| Width | 8 5/16 in, 8-5/16" |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1376602 | 808.44 | 1 | 11 | | Dayton | 44.75 | 808.44 @ 1 |
 | simsupply.com | ZO-G1376602 | 937.84 | 1 | 7 | | Dayton | | 937.84 @ 1 |
| grainger.ca | GGM4JMW1 | 1010.73566142 | 1 | In Stock | | DAYTON | 44.75 | 1010.73566142 @ 1 |
 | sustainablesupply.com | C1740248 | 1062.22 | 1 | In Stock | | Dayton | 44.75 | 1062.22 @ 1 |
| AmazonTP | B004KFI4U4 | 1104.88 | 1 | In Stock | 2 | Dayton | | 1104.88 @ 1 |
| AmazonUNK | B004KFI4U4 | 1104.88 | 1 | In Stock | | Dayton | | 1104.88 @ 1 |
 | Raptor Supplies | AD8EQQ | 1328.4062415 | 1 | In Stock | | DAYTON | | 1328.4062415 @ 1 |
