Dixon Valve & Coupling G500-D-AL

mpnG500-D-AL
brandname: DIXON VALVE
manufacturername: DIXON VALVE

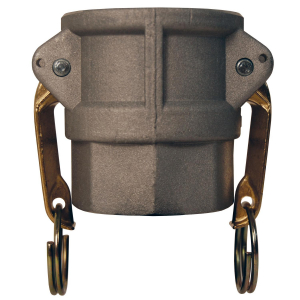

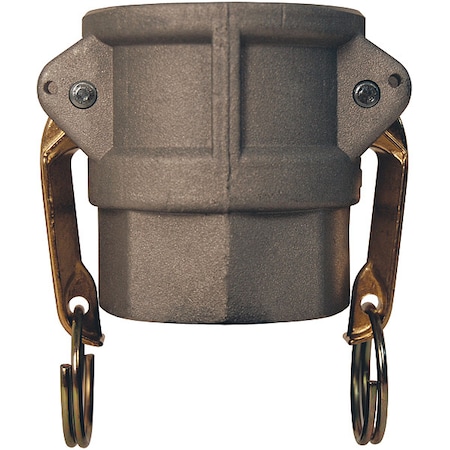

Dixon 5" Global Aluminum Female Coupler x Female NPT w/Brass Handles (G500-D-AL)

Brand: Dixon Valve & Coupling
PartNumber: G500-D-AL
Size: 5 Inch
PackageQuantity: 1
Binding: Office Product
Manufacturer: Dixon Valve & Coupling
Label: Dixon Valve & Coupling

Attributes

Key	Value
Application	Designed for use with l.
Basic Pipe Fitting Mate.	Metal
Body Material	Aluminum
Brand	Dixon Valve & Coupling
Brand Name	DIXON?
Catalog Page	N/A
Component	Brass Handle
Component Material	Brass Handle
Connection Type	NPT
Country of Origin	Taiwan
Country of Origin (subj.	Taiwan, Province of Chi.
Coupler Size	5"
Coupling Component	Socket
Coupling Size	5 in, 5"
Coupling Type	Type D
Description:	5" Global Alum Fem Coup.
End Style	Female Coupler x FNPT
Fitting Connection Type	NPT
Fitting Type	FNPT
Fitting/Connector Type	Coupling
Fittings Sub-Category	Couplers
For Hose I.D.	5"
Gasket Material	Nitrile
Hose Fitting Gender	Female
Hose Fitting Size	5 in, 5"
How it works	To make a connection, s.
Includes Locking Arm	Yes
Item	Cam and Groove Coupling
Item?	55MH23
Length	3-21/32 in
Length (in)	3.656
Manufacturer	Dixon Valve & Coupling,.
Manufacturer Part Number	G500-D-AL
Material	A380 Permanent Mold Alu.
Max. Working Pressure @.	75 PSI
Maximum Operating Press.	75 PSI
MFG Part #:	G500-D-AL
Mfr. Model?	G500-D-AL
MPN	G500-D-AL
Nominal Size	5 in
Note	Also available in stain.
Overall Length	3-27/32 in, 3-27/32"
Package Quantity	1/Each
Pipe Fitting Material	Aluminum
Pipe Size	5"
Pipe Size - Pipe Fitting	5"
Pressure Rating	75 PSI
Product	Type D Coupler
Product Type	Simple product
PSI	75 PSI
Safety Notes	Under no circumstances .
Seal	BUNA
Series	Global
Size	5"
SKU	G500-D-AL
Socket Inside Diameter	5 in
Socket"side Diameter	5"
Standard Approvals	A-A-59326D
Supplier:	Dixon Valve & Coupling .
Temperature Rating	70?F, 70 deg F
Thread Size	5 in -8
Type	Type D
UNSPSC	40141719
UPC	697464139713
UPC:	697464139713
WARNING!	This product contains a.
Weight	2.610000
Weight Lb	2.6100

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
toolfetch.com	DIX-G500-D-AL	63.81	1	3		DIXON VALVE		63.81 @ 3
andersonprocess.com	G500-D-AL	70.55	1	3		Dixon Valve & Coupling	2.61	70.55 @ 3
Megadepot	G500-D-AL	77.7	1	3		Dixon Valve	2.61	77.7 @ 3
usmegastore.com	G500-D-AL	77.7	1	3		Dixon Valve	2.61	77.7 @ 3
heavydutydepot.com	G500-D-AL	77.7	2	3		Dixon		77.7 @ 3
kscdirect.com	DIX G500-D-AL	79.62	1	3		Dixon Valve & Coupling Co		79.62 @ 3
MRO Supply	840663	86.22	1	3	14	Dixon		86.22 @ 3
Zoro	G1430808	86.29	1	3	15	Dixon Valve & Coupling	1.35	86.29 @ 3
industrialzone.com	G500-D-AL	88.32	3	3		Dixon	0.1	88.32 @ 3
Grainger	55MH23	113.59	1	3		DIXON VALVE & COUPLING		113.59 @ 3
hanessupply.com	G500-D-AL-10639	114.31	1	3		Dixon Valve & Coupling		114.31 @ 3
imsbolt.com	G500-D-AL	151.28	1	3		DIXON VALVE		151.28 @ 3
Wilson	G500-D-AL	280.62	1	3		Dixon		280.62 @ 3
