Eaton E57G-30UPN22-C2

B01M06P9Z9

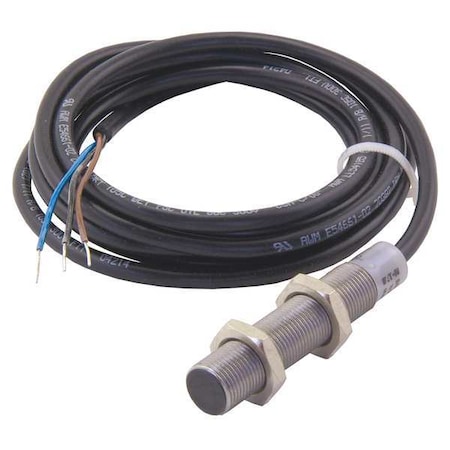

Eaton Electrical - E57G-30UPN22-C2-600 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 22.0 mm

Eaton Electrical - E57G-30UPN22-C2-600 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 22.0 mmzoom

Attributes

Key Value
ApprovalsCE;cULus
Basic Proximity Sensor .Metal
Body CompositionMetallic
Body materialstainless steel
Case Materialstainless steel
Connectionlead 2m
Connection TypeCable Connection
Depth6-1/4 in
Diameter30 MilliMeters
Family SeriesCutler Hammer, Div of E.
Gross Weight0.45 lbs
IP Rating67
IP ratingIP67
ItemCylindrical Proximity S.
Item NumberE57G-30UPN22-C2
Kind of foreheadnon-embedded
Length68 mm
Length (Straight Wirewa.68 mm
Length of Cables2 Meters
ManufacturerEATON ELECTRIC, Cutler .
Manufacturer Part NumberE57G-30UPN22-C2
Max Leakage Current0.1 MilliAmps
Max Load Current0.1 Amps
Max. Current Load100mA
Max. Detecting Distance22 mm
Max. operating current0.1A
NEMA Rating4X
Net Weight0 lbs
Nominal Voltage12 VDC;24 VDC
Number of Wires3
Operating temperature-25...70?C
Operating Voltage Range10~30 VDC
Output configurationPNP / NO
Output ModeNO
Output TypeNO PNP
Part NumberE57G-30UPN22-C2
Power TypeDC
Product Height2 in
Product Length/Depth6.25 in
Product SeriesE57G
Product Width5.25 in
Proximity Sensing Methodinductive
Proximity Sensor Diamet.30 mm
Proximity Sensor Electr.2m Cable
Proximity Sensor Operat.600 Hz
Proximity Sensor Output.3 Wire PNP
Proximity Sensor Power .10 to 30V DC
Proximity Sensor StyleCylindrical Proximity S.
Range0...22mm, 22 MilliMeters
RoHSYes
Sensing TypeEnd
Shielded / UnshieldedUnshielded
ShieldingUnshielded
Short Circuit ProtectionYes
StandardsCE Compliance, cUL List.
Status IndicatorYes
Switch housingM30
Switching frequency max0.2kHz
Type of sensorinductive
Weld Field ImmuneNO
Width5-1/4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEE57G-30UPN22-C257.0911EATON ELECTRIC57.09 @ 1
thumbzoomcappusa.com487294758.721In StockEaton58.72 @ 1
thumbzoomZoroG188201560.991In StockEaton0.3560.99 @ 1
GalcoE57G-30UPN22-C296.271In StockCutler Hammer, Div of Eaton Corp0.4596.27 @ 1
thumbzoomPlatt.com1287749109.111In StockEaton109.11 @ 1
thumbzoommotorsandcontrol.comE57G-30UPN22-C2130.931In StockEaton Cutler Hammer130.93 @ 1
thumbzoomturtle.comCUH E57G-30UPN22-C2136.211In StockEaton136.21 @ 1
