Hubbell 1222PWR

B00N3005AO

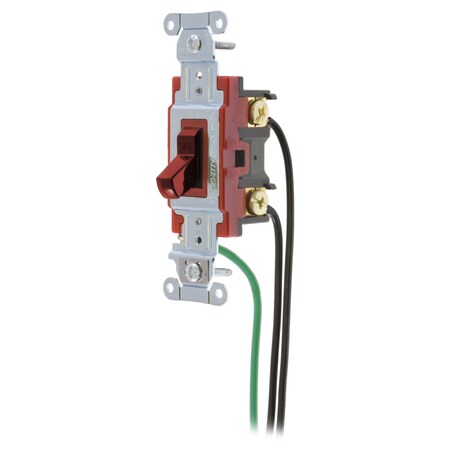

Hubbell 1222PWR Switch, Catalog #1222R with 8" Leads, Red (Pack of 50)

Hubbell 1222PWR Switch, Catalog #1222R with 8" Leads, Red (Pack of 50)zoom

Attributes

Key Value
Amperage20 A
Application8" #12 AWG THHN, 8 #12 .
ApprovalsCSA, UL
Auto Grounding Mounting.Zinc Plated Steel
Carton Quantity50
ColorRed
CommentsHeavy duty
ConnectivityPre-Wired
ContactsSilver Alloy
Current20 A
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
Dielectric StrengthWithstands 1500V AC min.
Dielectric strengthWithstands 1500V AC min.
Dimensions4.18 in x 1.3 in x 1.83.
Face ColorRed
Family SeriesHubbell Switches
FlammabilityUL 94V-2
GradeIndustrial
Gross Weight0.2 lbs
GroundingAutomatic
Height1.83 in
HP @ 120 VAC1 hp
HP @ 240 VAC2 hp
IlluminatedNo
Industry Standard(s)UL Listed
Item Number1222PWR
Length4.18 in
LockingNo
ManufacturerHubbell
Manufacturer Part Number1222PWR
Net Weight0 lbs
Number Of PolesDouble pole
Number of polesDouble pole
Operating temperatureMaximum continuous 75C .
OperatorToggle
Operator ColorRed
SeriesHeavy duty
StyleDouble pole
Switch ConfigurationDouble pole
Temp. Rise30?C maximum at rated c.
Temperature-40-167 ?F
Temperature Rise30?C maximum at rated c.
Temperature Rise - Max.30C maximum at rated cu.
Terminal Accommodations#14 AWG min. - #10 AWG .
Toggle MaterialNylon
TypeToggle
Voltage120-277 VAC, 120 VAC, 2.
Voltage Rating120-277 VAC
Voltage rating descript.120-277 VAC
Width1.3 in
Width (in)1.3
Wire Range#14 to #10 AWG Solid an.
Wire size#14 AWG to #10 AWG
Wire Size#14 AWG to #10 AWG
WiringBack and Side Wired, Pr.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply101364913.14350Hubbell Wiring13.14 @ 50
thumbzoomGalco1222PWR-HBBL13.535050Hubbell0.213.53 @ 50
Newark94Y461920.435050HUBBELL WIRING DEVICES20.43 @ 50
thumbzoomZoroG900489803614.55050Hubbell Wiring Device-Kellems614.5 @ 50
thumbzoomgordonelectricsupply.com1222PWR634.5150HUBBELL634.5 @ 50
