Leviton T5632-B

mpnT5632-B
brandname: Leviton
manufacturername: Leviton

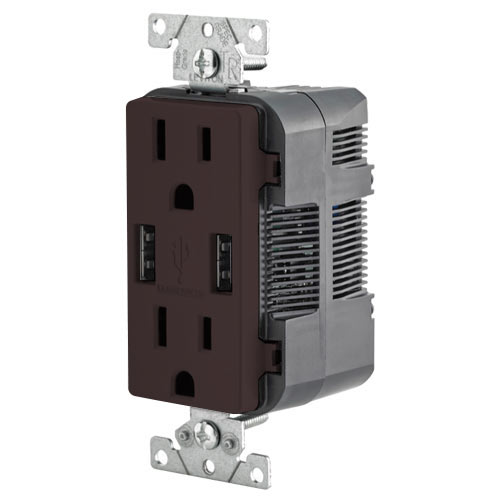

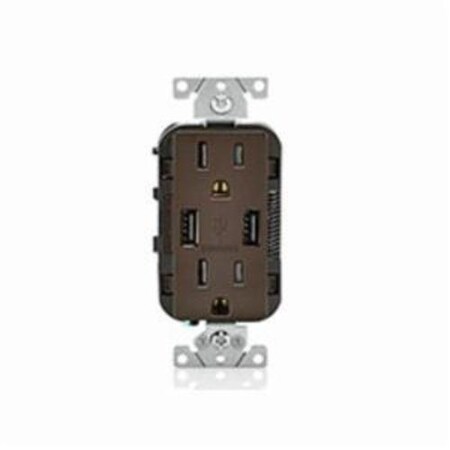

Leviton T5632-B T5632 15-Amp USB Charger/Tamper Resistant Duplex Receptacle, Brown, 1-Pack

Leviton T5632-B T5632 15-Amp USB Charger/Tamper Resistant Duplex Receptacle, Brown, 1-Pack

zoom

Brand: Leviton
PartNumber: T5632-B
Model: T5632-B
Color: Brown
Size: 1 Pack
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Leviton
Label: Leviton

Attributes

Key	Value
07847768390	UPC
1.68	Depth (in.)
1.73	Width (in)
125	Voltage (V)
15	Amperage
15A-1/2 HP	HP Rating:
15A-125V	Rating, Amp Rating
4.04	Height (in)
5 Year Limited	Warranty
Amperage Rating	15A
Amps	15
Brown	Color
Category	Combination Device Swit.
cCSAus	UL Listed
Color	Brown
Color Family	Brown
Condition:	New
Connection	Back/Side Wired
Country of Origin	CN - China, CN
Cover Material	Thermoplastic
Depth	1.7"
Description:	BR COMBI DUP REC/USB CH.
ECCN	EAR99
Electrical Ratings	15 A/125 VAC/0.5 hp
Environmental Conditions	-10 to 40 deg C Operati.
Features	Tamper Resistant
Flammability	Rated V-0 per UL 94
Grade	Specification, Resident.
Grounding	Grounding
Height	4"
Horsepower Rating	15A-1/2 HP
Leviton	Brand
Listed	cCSAus
Manufacturer	LEVITON, Leviton Manufa.
Material	Thermoplastic
MFG Part #:	T5632-B
Mounting	Wall
NEMA	5-15R
NEMA Configuration	5-15R
No. of Poles	2
No. of Wires	3
Number of Poles	2
Number of Wires	3
Operating Temperature	-10?C to 40?C
Product Type	Outlet/USB Combo
Ratings	15A-125V
Size	4.04 in H x 1.73 in W x.
Standard Pack:	Order QTY must be in mu.
Standard:	cCSAus
Strap Material	Steel
Supplier:	LEVITON
T5632-B	Stock Code
Terminal Accom.	14-12 AWG
Terminal ID	Brass-Hot Black-Hot Whi.
Termination	Back & Side
Torque Range	14 "- 18 in.-lbs
Type	Tamper-Resistant, USB, .
Type:	Combination Duplex Rece.
UL 1310	Yes
UL 498	Yes
UNSPSC	39122231
UPC	078477683903
UPC:	078477683903
USB Quantity	2
USB Rating	3.6 A at 5 VDC
USB Type	Type-A USB 2.0
Voltage	125, 125 VAC
Voltage Rating:	125 V
Volts AC	120
Volts DC	5
Wall Plate - Leviton 80.	Sold Separately:
Width	1.7"
Wire Size	14 to 12 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Life and Home	43031984	22.99	1	2		Leviton		22.99 @ 2
	emisupply.com	LEV-T5632-B	24.17	1	2		Leviton		24.17 @ 2
	unbeatablesale.com	RTL345471	26.4	1	2		LEVITON		26.4 @ 2
	Dale-Electric	T5632-B	28.7	1	2		Leviton Manufacturing		28.7 @ 2
	Lighting Supply	T5632-B	29.54	1	2		Leviton		29.54 @ 2
	kscdirect.com	LEV T5632-B	29.68	1	2		LEVITON		29.68 @ 2
	Zoro	G4068417	31.29	1	2		Leviton		31.29 @ 2
	Platt.com	0100980	33.43	1	72		Leviton		33.43 @ 2
	electricalparts.com	T5632-B	33.488	1	25		Leviton		33.488 @ 2
	alldataresource.com	772392	33.55	1	2		Leviton Manufacturing Co		33.55 @ 2
	bulbspro.com	T5632-B	35.54	1	2		Leviton		35.54 @ 2
	improvedepot.com	864238	39.0	1	2		Leviton		39.0 @ 2
	Graybar	25647659	39.984	1	2		Leviton		39.984 @ 2
	us.rs-online.com	72406656	46.71	48	2		Leviton		46.71 @ 48
