- mpnT5632-W
- brandname: Leviton
- manufacturername: Leviton

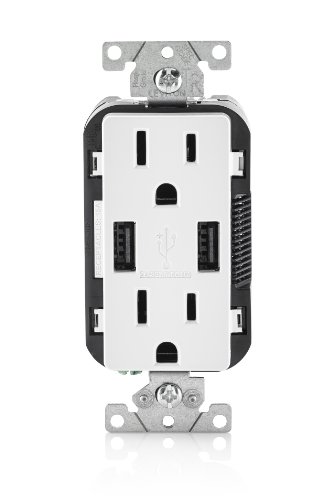

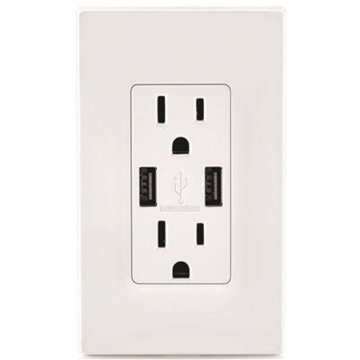

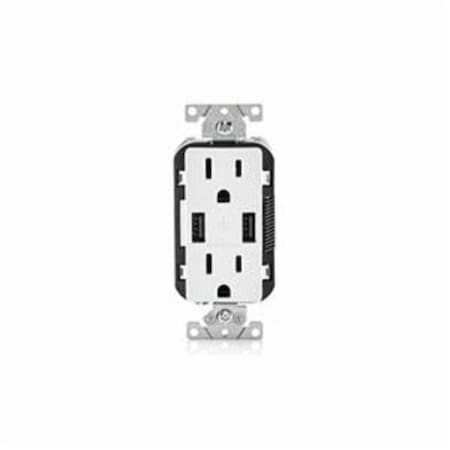

Leviton T5632-W USB Charger/Tamper-Resistant Duplex Receptacle, 15-Amp, 8-Pack, White
- Brand: Leviton
- PartNumber: T5632-W
- Model: T5632-W
- Color: White
- Size: 8 Pack
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: Leviton
- Label: Leviton
Attributes
| Key | Value |
|---|
| 07847768386 | UPC |
| 1.68 | Depth (in.) |
| 1.73 | Width (in) |
| 125 | Voltage (V) |
| 15 | Amperage |
| 15A-1/2 HP | HP Rating: |
| 15A-125V | Rating, Amp Rating |
| 4.04 | Height (in) |
| 5 Year Limited | Warranty |
| AMP | 15 |
| Amperage | 15 A |
| Amperage Rating | 15A, 15 Amp |
| Amperage Rating: | 15 A |
| Amps | 15 |
| Application | Residential, Commercial |
| Body Material | Thermoplastic |
| Brand | Leviton |
| Brand Name | Leviton |
| Category | Combination Device Swit. |
| Collection | Decora? |
| Color | White |
| Color Family | White |
| Color Finish Category | Whites |
| Color Finish Name | White |
| Condition: | New |
| Conductor Size | 14-12 AWG |
| Connection | Thread |
| Contact Type | Socket |
| Country of Origin | CN - China, China, CN |
| Country Of Origin | China |
| Cover Material | Thermoplastic |
| CSA Certified | Yes |
| CSA, CSAus Listed | UL Listed |
| Current Rating | 15 A |
| Degree of Protection | No |
| Depth | 1.7" |
| Description: | WH COMBI DUP REC/USB CH. |
| Dimensions | 1.73 Inch Width x 1.68 . |
| ECCN | EAR99 |
| Electrical Ratings | 15 A, 125 VAC |
| Energy Star Flag | No |
| Environmental Conditions | -10 to 40 deg C, V0 Fla. |
| Features | Tamper Resistant |
| Fiber Type | No |
| Finish | No |
| Flammability | Rated V-0 per UL 94 |
| Grade | Residential/Commercial . |
| Grounding | Grounding |
| GTIN | 00078477683866 |
| Height | 4", 4.400 |
| Horsepower Rating | 15A-1/2 HP |
| Item Name | Straight Blade Duplex R. |
| Jacket Material | No |
| Length | 2.300 |
| Leviton | Brand |
| Listed | cCSAus |
| Manufacturer | Leviton, Leviton Manufa. |
| Manufacturer Name | Leviton |
| Manufacturer Part Number | T5632-W |
| Material | Thermoplastic, Plastic |
| Material Type | Thermoplastic |
| Maximum Load Capacity | 1/2 hp |
| MFG Part #: | T5632-W |
| Mounting | Surface |
| Mounting Type | Tabs |
| NEMA | 5-15R |
| NEMA Configuration | NEMA 5-15R, 5-15R |
| NEMA Type | 5-15R |
| No. of Poles | 2 |
| No. of Wires | 3 |
| On Hand: | In Stock - Available fo. |
| Package Quantity | 1 |
| Phase | 1/2 Phase |
| Primary Type | Straight Blade |
| Product Type | Outlet/USB Combo, Recep. |
| Ratings | 15A-125V |
| RoHS Flag | Contact manufacturer |
| Series | Tamper-Resistant USB Se. |
| Size | 4.04 in H x 1.73 in W x. |
| Size Measure | IN |
| Standard: | cCSAus |
| Standards | cCSAus Certified, NOM 0. |
| Strap Material | Steel |
| Style | Duplex, Residential |
| Sub Brand | Decora? |
| Supplier: | Leviton |
| T5632-W | Stock Code |
| Temperature Rating | -10 to 40 deg C |
| Terminal Accom. | 14-12 AWG |
| Terminal Connection | Back and Side Wired |
| Termination | Screw, Back & Side |
| Torque Range | 14 "- 18 in.-lbs |
| Type | Duplex Receptacle, Tamp. |
| Type: | Combination Duplex Rece. |
| UL 1310 | Yes |
| UL 498 | Yes |
| UL Listed | Yes |
| UNSPSC | 39122231, 39121406 |
| UPC | 400654065675, 078477683. |
| UPC Code | 400654065675, 078477683. |
| UPC: | 078477683866 |
| USB Quantity | 2 |
| USB Rating | 3.6 A at 5 VDC |
| USB Type | Class A |
| Voltage | 125 V, 125, 125 VAC |
| Voltage Rating | 125 V, 125 Volt |
| Voltage Rating: | 125 V |
| Volts | 125VAC |
| Volts AC | 120 |
| Volts DC | 5 |
| Wall Plate - Leviton 80. | Sold Separately: |
| Weight | 0.350 |
| Weight Measure | LB |
| White | Color |
| Width | 3.000, 1.7" |
| Wire Gauge (AWG) | 12 ga |
| Wire Size | 14 to 12 AWG, 12-14 AWG |
| Wiring Method | Back/Side Wired |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | electricalparts.com | T5632-W | 21.8176 | 1 | 700 | | Leviton | | 21.8176 @ 1 |
 | turtle.com | LEV T5632-W | 22.72 | 1 | In Stock | | Leviton | | 22.72 @ 1 |
 | emisupply.com | LEV-T5632-W | 24.74 | 1 | In Stock | | Leviton | | 24.74 @ 1 |
 | americanelectrics.com | T5632-W | 25.33 | 1 | In Stock | | LEVITON | | 25.33 @ 1 |
 | Monarch Electric | 236356 | 25.91 | 1 | In Stock | | Leviton | | 25.91 @ 1 |
| Dale-Electric | T5632-W | 28.7 | 1 | 8 | | Leviton Manufacturing | | 28.7 @ 1 |
 | Lighting Supply | T5632-W | 29.54 | 1 | In Stock | | Leviton | | 29.54 @ 1 |
| kscdirect.com | LEV T5632-W | 29.68 | 1 | In Stock | | LEVITON | | 29.68 @ 1 |
| Onlinecomponents.com | T5632-W | 32.09 | 1 | 200 | | LEVITON | | 32.09 @ 1 |
 | Platt.com | 0104591 | 33.43 | 1 | 1360 | | Leviton | | 33.43 @ 1 |
| alldataresource.com | 736288 | 33.55 | 1 | In Stock | | Leviton Manufacturing Co | | 33.55 @ 1 |
 | Zoro | G4078786 | 33.95 | 1 | In Stock | | Leviton | | 33.95 @ 1 |
 | HD Supply | 245221 | 34.99 | 1 | In Stock | | Leviton | 0.35 | 34.99 @ 1 |
| Graybar | 25647654 | 35.3808 | 1 | 1 | | Leviton | | 35.3808 @ 1 |
 | bulbspro.com | T5632-W | 35.54 | 1 | In Stock | | Leviton | | 35.54 @ 1 |
| ferguson.com | 4851603 | 37.99 | 1 | In Stock | | LEVITON | | 37.99 @ 1 |
 | freertool.com | FTS-LV10T5632W | 37.99 | 1 | In Stock | | Leviton | | 37.99 @ 1 |
 | improvedepot.com | 864211 | 39.0 | 1 | In Stock | | Leviton | | 39.0 @ 1 |
| us.rs-online.com | 71147342 | 39.13 | 1 | 19 | | Leviton | | 39.13 @ 1 |
 | Radwell | T5632-W | 44.0 | 48 | In Stock | | LEVITON | | 44.0 @ 48 |
| Amazon | B018A3DHF8 | 160.4 | 1 | In Stock | | Leviton | | 160.4 @ 1 |
| AmazonTP | B018A3DHF8 | 187.4 | 1 | In Stock | 2 | Leviton | | 187.4 @ 1 |
