- mpn1835196
- brandname: Loctite
- manufacturername: Loctite

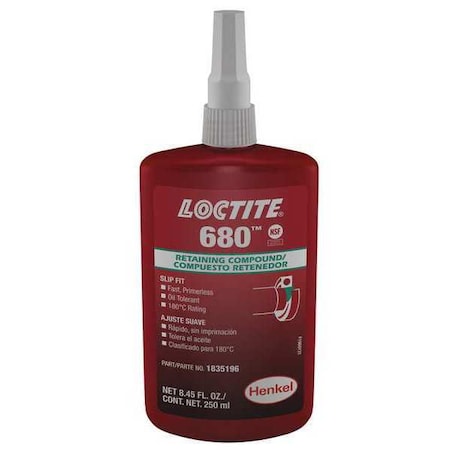

HENKEL LOCTITE 680 RETAIN CMPND 250ML (1835196)
- Brand: Loctite
- PartNumber: 1835196
- PackageQuantity: 10
- Manufacturer: Henkel
- Label: Henkel
Attributes
| Key | Value |
|---|
| Application | Bearing, Joint, Fan |
| Application Time | 10 min |
| Applications | Bearing; Joint; Fan |
| Availability | Call for Availability |
| Begins to Harden | 10 min |
| Brand | Loctite |
| Brand & Series | LOCTITE 680 |
| Brand Name | Loctite |
| Brand Part Number | 1835196 |
| Characteristics | Green |
| Chemical Base | Methacrylate Ester |
| Clean Up Method | Solvent, Wire Brush |
| Close-Fitting Parts Sub. | For Loose Fitting Parts. |
| Color | Green |
| Color Family | Green |
| Colour | Green |
| Compatible Materials | Steel |
| Compatible Primer Series | Excel 612 |
| Composition | Dimethacrylate Ester, M. |
| Compound Type | #680, High Strength, Hi. |
| Container Size | 8.5 fl oz, 250 mL |
| Container Size - Adhesi. | 8.45 oz |
| Container Type | Squeeze Bottle, Bottle |
| Container Type - Adhesi. | Bottle |
| Country of Origin (subj. | United States |
| Cure Type | Anaerobic |
| Curing Method | Anaerobic |
| Curing Time | 24 hr |
| Current Stock | 57 |
| Description: | LOCTITE 680 RETAIN CMPN. |
| Filling Gap Size | Up to 0.015" |
| Flash Point | 93.3 deg C, 200 Degree. |
| For Material Type | Steel |
| Form | Liquid |
| Full Cure | 24 hr |
| Full Cure Time | 1 day |
| Gap Fill Size | 0.015", 0.015 in |
| Gap Fill Size - Retaini. | 0.015 in |
| Glue/Adhesive Type | Retaining Compound |
| High-Temperature Subhead | For Loose Fitting Parts. |
| International Shipping | No |
| Item | Retaining Compound |
| Lead time | Typical lead time for L. |
| Loose-Fitting Parts Sub. | High Strength, Standard |
| Manufacturer | Loctite?, Henkel, LOCTI. |
| Max. Temp. (F) | 300 Degrees F |
| Maximum Gap Fill Size | 0.015 in |
| Maximum Operating Tempe. | 355 Degrees F |
| Maximum Temperature | 300? F |
| Maximum Viscosity | 1,850 cps |
| MFG Part #: | 1835196 |
| Mfr. Model # | 1835196 |
| Minimum Operating Tempe. | -65 Degrees F |
| Minimum Viscosity | 650 cps |
| Model | LOCTITE 680 |
| Mpn | 1835196 |
| MPN | 1835196 |
| Non-Toxic | No |
| Odor/Scent | Characteristic |
| Operating Temperature R. | -65 Degrees F to 355 . |
| Optimal Usage Temperatu. | -65 Degrees to 355 Deg. |
| Pack Quantity | 10 |
| Physical Form | Liquid |
| Primer | T |
| Primer Required | Yes |
| Product Form | Liquid |
| Product Type | Retaining Compound |
| Reaches Full Strength | 1 day |
| Retaining Compound Prop. | For Loose-Fitting Parts. |
| Retaining Compound Stre. | High |
| Retaining Compounds Pro. | For Loose Fitting Parts. |
| Series | 680?, 680 |
| Shear Strength | 4,030 psi, 4,000 psi, 4. |
| Shear Strength (PSI) | 4,000 |
| Ship Weight (lbs.) | 0.76 |
| Size | 250mL |
| SKU | 1835196, ZO-G0851067 |
| Sold As | 10-Pack |
| Specific Gravity | 1.1 |
| Standard Pack: | Order QTY must be in mu. |
| Standards | NSF/ANSI 61,ABS, ABS Ap. |
| Storage Requirements | 8 Degrees to 21 Degree. |
| Supplier: | LOCTITE CORPORATION |
| Temperature Range | -65 to 300 ?F |
| Temperature Rating | -65 to 300 deg F |
| Type | High Strength |
| Unit | EA |
| UPC | 00079340006850, 0793400. |
| UPC: | 079340006850 |
| Viscosity Rating | 4000 cPs |
| VOC Content | 4.74 g/L |
| Working Time | 4 min |
| Working Time Range | 5 min and Under |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | sustainablesupply.com | C1154390 | 73.29 | 1 | In Stock | | Loctite | 0.6 | 73.29 @ 1 |
 | Janel | LOC 1835196 | 143.78 | 10 | In Stock | | LOCTITE | | 143.78 @ 10 |
 | Zoro | G0851067 | 157.69 | 1 | 157 | | Loctite | 0.6 | 157.69 @ 1 |
 | Voomi Supply | 1835196 | 161.96 | 1 | In Stock | | Loctite | | 161.96 @ 1 |
 | grovesindustrial.com | LOC 1835196 | 185.93 | 1 | In Stock | | Loctite | 0.76 | 185.93 @ 1 |
 | simsupply.com | ZO-G0851067 | 187.07 | 1 | 57 | | Loctite | | 187.07 @ 1 |
| Newark | 18X3132 | 190.42 | 10 | In Stock | | LOCTITE | | 190.42 @ 10 |
 | All-Spec | 1835196-30769 | 211.33 | 1 | In Stock | | Loctite | | 211.33 @ 1 |
| kscdirect.com | LOC 1835196 | 214.48 | 1 | In Stock | | LOCTITE CORPORATION | | 214.48 @ 1 |
 | jensentools.com | LOC-68060 | 223.11 | 1 | In Stock | | Loctite | | 223.11 @ 1 |
| grainger.ca | LCT1835196 | 234.80549906 | 1 | In Stock | | LOCTITE | 0.72 | 234.80549906 @ 1 |
| motionindustries.com | 05799165 | 254.12 | 1 | In Stock | | Loctite | | 254.12 @ 1 |
 | bscsource.com | 1835196 | 286.39 | 1 | In Stock | | Loctite | | 286.39 @ 1 |
 | Guardian | 97979868 | 332.05 | 1 | In Stock | | Loctite | | 332.05 @ 1 |
 | Industrial Safety | LOCTITE-1835196 | 1694.99 | 1 | In Stock | | Loctite | | 1694.99 @ 1 |
| Advanced Tools | 442-1835196 | 1774.17 | 1 | In Stock | | Loctite | | 1774.17 @ 1 |
 | strobelssupply.com | 1835196 | 1828.43 | 1 | In Stock | | Loctite | | 1828.43 @ 1 |
 | fixsupply.com | 1835196 | 2003.47 | 1 | In Stock | | LOCTITE | | 2003.47 @ 1 |
 | weldingoutfitter.com | 442-1835196 | 2353.63 | 1 | In Stock | | Loctite | | 2353.63 @ 1 |
