Lovejoy 68514476284

mpn68514476284
brandname: LoveJoy
manufacturername: LoveJoy

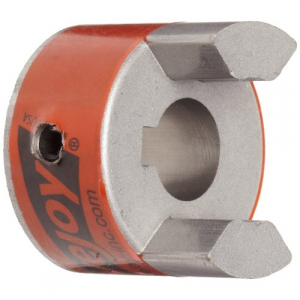

Lovejoy 76284 Size L070 Standard Jaw Coupling Hub, Sintered Iron, Inch, 0.563" Bore, 1.36" OD, 0.25" x 0.125" Keyway

Lovejoy 76284 Size L070 Standard Jaw Coupling Hub, Sintered Iron, Inch, 0.563" Bore, 1.36" OD, 0.25" x 0.125" Keyway

zoom

Brand: Lovejoy
PartNumber: 68514476284
Model: 68514476284
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
# of Jaws	2
Bore Size	9/16 in
Color	Metallic
Coupling Size	L070
Coupling Type	Jaw
Cubic inches	2.27501 in3
Dimension G	0.480 in (12.19 mm)
Dimension SL	0.380 in (9.65 mm)
Dimension T	1/4-20
Elastomeric Member	SOX (NBR) Rubber
Hub Length	1.230 in (31.24 mm)
Hub Style	1
Keyway Size (W x D)	1/4 x 1/8 in
Length thru Bore	0.750 in (19.05 mm)
Material	Sintered Iron
Max. Bore (Dimensions I.	0.750 in (19.00 mm)
Max. Speed	14000.00 rpm
Min. Bore (Dimensions I.	0.250 in (6.00 mm)
Nominal Torque	43.20 in-lb
Outside Diameter	1.36 in (34.54 mm)
Overall Length	1.980 in (50.29 mm)
Rated HP at 1,200 rpm	0.84 hp
Rated HP at 1,800 rpm	1.23 hp
Rated HP at 100 rpm	0.07 hp
Rated HP at 3,600 rpm	2.52 hp
Weight	0.23 lb
Weight (Complete Coupli.	0.60 lb
Weight (Complete Coupli.	0.40 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	68514476284	44.12	1	In Stock		Lovejoy	0.23	44.12 @ 1
	heavydutydepot.com	68514476284	44.12	3	In Stock		Lovejoy		44.12 @ 3
