Lovejoy 68514476325

mpn68514476325
brandname: LoveJoy
manufacturername: LoveJoy

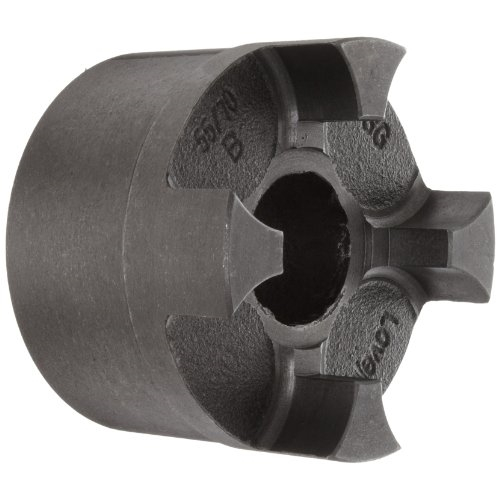

Lovejoy 76325 Size CJ 55A Curved Jaw Coupling Hub, Cast Iron, Inch, 1.125'' Bore, 4.72'' OD, 6.3'' Overall Coupling Length, 1/4" x 1/8" Keyway

Lovejoy 76325 Size CJ 55A Curved Jaw Coupling Hub, Cast Iron, Inch, 1.125

zoom

Brand: Lovejoy
PartNumber: 68514476325
Model: 68514476325
Size: 4.72'' OD, 1.125'' Bore
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
Angular Displacement	0.090 in
Bore Size	1 1/8 in
Color	Gray
Coupling Size	55
Coupling Type	Jaw
Cubic inches	38.14298 in3
Hub Material	Cast Iron
Hub Style	A
Keyway Size	1/4 x 1/8 in
Max Torque (with 92 Sho.	7250.00 in-lb
Max. Angular Displaceme.	1.10 ?
Max. Axial Displacement.	0.8700 in
Max. Radial Displacemen.	0.0140 in
Max. Speed	4750 rpm
Max. Temperature Range .	-50 to 248 ?F
Nominal Torque (with 92.	3625.00 in-lb
Normal Temperature Rang.	-40 to 212 ?F
Set Screw Style Couplin.	3/8-16
Style	Bored
Type	Curved Jaw Coupling Hubs
Weight	8.00 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	68514476325	168.3	1	In Stock		Lovejoy	8.0	168.3 @ 1
	Megadepot	68514476325	184.6	1	In Stock		Lovejoy	8.0	184.6 @ 1
	heavydutydepot.com	68514476325	184.6	1	In Stock		Lovejoy		184.6 @ 1
