Lovejoy 68514476847

mpn68514476847
brandname: LoveJoy
manufacturername: LoveJoy

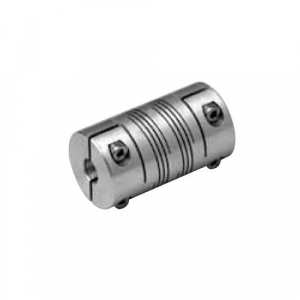

Lovejoy ADB6 68514476847 Double Beam Coupling, Aluminum, Inch, 3/8" Bore A Diameter, 5/8" Bore B Diameter, 1.252" OD, 2.252" Overall Coupling Length, 38 lb-in Nominal Torque, No Keyway, 10000 Max RPM

Lovejoy ADB6 68514476847 Double Beam Coupling, Aluminum, Inch, 3/8" Bore A Diameter, 5/8" Bore B Diameter, 1.252" OD, 2.252" Overall Coupling Length, 38 lb-in Nominal Torque, No Keyway, 10000 Max RPM

zoom

Brand: Lovejoy
PartNumber: 68514476847
Size: 5/8 inches
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
# of Jaws	3
Color	Silver
Coupling Size	AL075
Coupling Type	Jaw
Cubic inches	4.01188 in
Description:	ADB6-BEAM CP-3/8X5/8;
Dimension G	0.5 in 12.7 mm
Dimension SL	.31 in 7.87 mm
Elastomeric Member	SOX (NBR) Rubber
Hub Length	1.310 in 33.27 mm
Hub Style	2
Keyway Size (W x D)	5 x 2.3
Length thru Bore	0.810 in 20.57 mm
Manufacturer	LOVEJOY INC
Material	Aluminum
Max. Bore (Dimensions I.	0.875 in 22.00 mm
Max. Speed	11000.00 rpm
MFG Part #:	68514476847
Min. Bore (Dimensions I.	0.250 in 6 mm
Moment of Inertia (Soli.	0.121 lb in
Nominal Torque	90.00 in lb, 10.17 Nm
Outside Diameter	1.530 in 38.86 mm
Overall Length	2.12 in 53.85 mm
Rated HP at 1,200 rpm	1.68 hp
Rated HP at 1,800 rpm	2.57 hp
Rated HP at 100 rpm	.14 hp
Rated HP at 3,600 rpm	5.04 hp
Supplier:	LOVEJOY INC
UPC:	685144768476
Weight	0.16 lb
Weight (Complete Coupli.	0.40 lb
Weight - Solid	0.30 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	heavydutydepot.com	68514476847	208.0	1	In Stock		Lovejoy		208.0 @ 1
	usmegastore.com	68514476847	217.5	1	In Stock		Lovejoy	0.16	217.5 @ 1
	kscdirect.com	LOV 68514476847	277.18	1	In Stock		LOVEJOY INC		277.18 @ 1
	Raptor Supplies	AM7DWJ	309.8746755	1	In Stock		LOVEJOY		309.8746755 @ 1
	bscsource.com	68514476847	326.09	1	In Stock		Lovejoy		326.09 @ 1
	midwestapplianceparts.com	68514476847-LJ-P	326.61	1	In Stock		Lovejoy		326.61 @ 1
	National Supply Network	87792628	388.69	1	In Stock		Lovejoy		388.69 @ 1
	Airline Hydraulics	LOVEJOY 68514476847	403.62	1	In Stock		LOVEJOY		403.62 @ 1
