Marathon Electric X500

B007ZQM74E

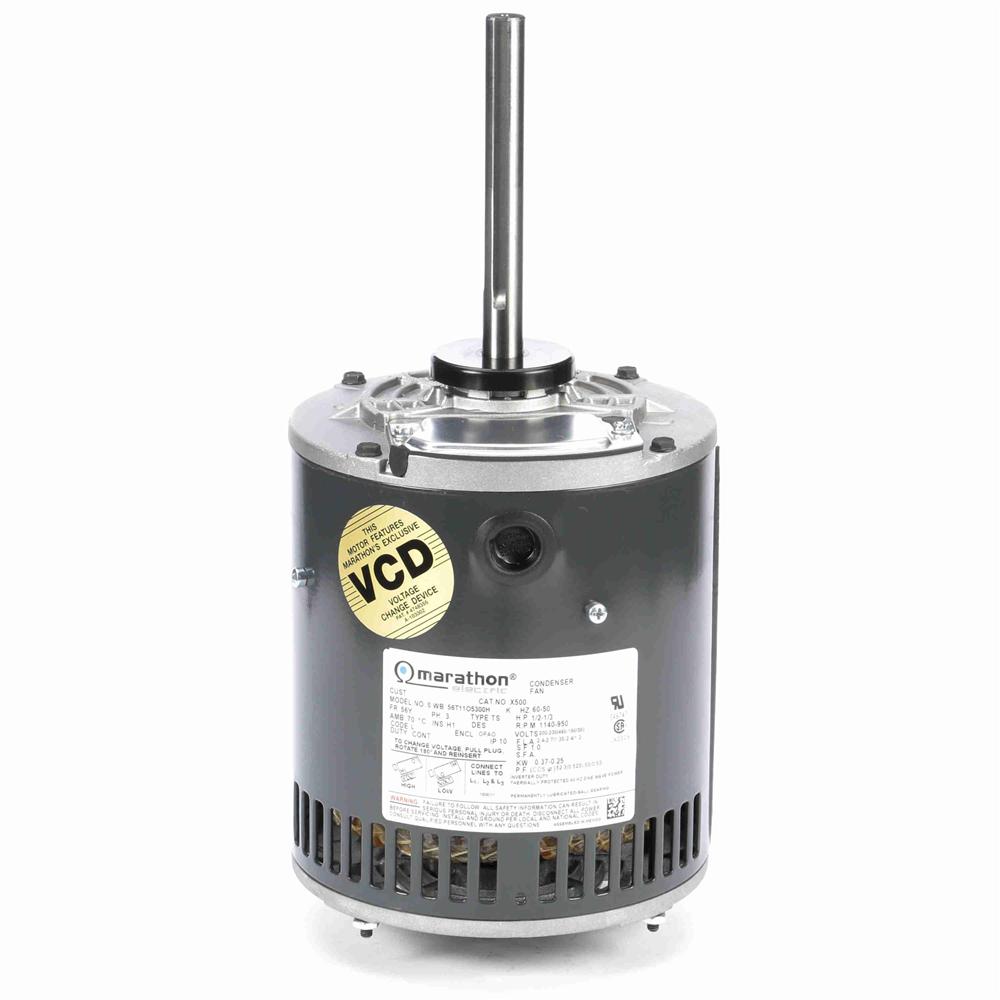

Marathon X500 56Y Frame Open Air Over 56T11O5300 Condenser Fan Motor, 1/2 hp, 1140 RPM, 200-230/460 VAC, 3 Phase, 1 Speed, Ball Bearing, Belly Band Mount

Marathon X500 56Y Frame Open Air Over 56T11O5300 Condenser Fan Motor, 1/2 hp, 1140 RPM, 200-230/460 VAC, 3 Phase, 1 Speed, Ball Bearing, Belly Band Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.056T11O5300
Amps2.4-2.7/1.4, 2.4-2.7/1..
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension14.06 (in.)
Catalog NumberX500
CEN
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.68
Efficiency %68 %
Electrical TypeSquirrel Cage Induction.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over)
Family SeriesMarathon Electric Motors
Frame56Y
Frame MaterialRolled Steel
Frequency50 Hz, 60 Hz, 60/50
Gross Weight0 lbs
Horsepower1/2 hp
HP1/2
Hz60
Insulation ClassH
IP Code10
ItemMotor,1/2Hp,208-230/460.
Item NumberX500
Kilowatts0.37 kW
KVA CodeL
ManufacturerMarathon Electric
Manufacturer Model #056T11O5300
Manufacturer Part Number056T11O5300
Max Ambient70?C
Maximum Ambient Tempera.70? C
Motor OrientationHorizontal
Motor Shell Length6.56"
MountingBand
Mounting OrientationHorizontal
Mounting TypeRound Belly Band
NEMA Frame56Y
Net Weight20 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles6
Number of Speeds1
ODE Bearing TypeBall
Overall Length14.06 ", 14.06"
Phase3
Product CategoryHVAC/R Motors > Conden.
Product TypeThree Phase
RotationReversible
RPM1140, 1100 - 1200, 1,14.
RPM (Nameplate)1140
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
Shaft Extension5.06 (in.)
Shaft Length5.06"
Shaft TypeSingle Special Extension
Ship Weight21 lbs.
Speeds1
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage200/230/460
Voltage (AC)200-230 VAC, 460 VAC
Volts200, 230, 460, 200-230/.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomasapelectricmotors.comMARX500309.291In StockMARATHON309.29 @ 1
thumbzoomapexindustrialautomation.comX500330.44136Marathon330.44 @ 1
thumbzoomGalcoX500-MARA339.131In StockMarathon Electric20.0339.13 @ 1
thumbzoomelectricmotorwholesale.comX500353.01In StockMARATHON353.0 @ 1
thumbzoomemotorpro.comX500363.911In StockMarathon21.0363.91 @ 1
us.rs-online.com72650004382.01In StockMarathon Motors382.0 @ 1
thumbzoomNational Supply NetworkB871723382.941In StockMARATHON MOTORS382.94 @ 1
thumbzoommidwestapplianceparts.comX500-MT-P389.1511Marathon389.15 @ 1
thumbzoomDreisilkerMA-RBC-X500416.351In StockMarathon416.35 @ 1
thumbzoomindustrialstores.comX500420.3811Marathon Motors420.38 @ 1
northstock.comX500466.671In StockMarathon466.67 @ 1
thumbzoomGuardianMARSX500497.671In StockMarathon497.67 @ 1
thumbzoomZoroG6460647531.371In Stock20Marathon22.2531.37 @ 1
thumbzoomMRO Supply2269416539.091In StockMarathon Electric539.09 @ 1
