Marathon GT5106

B084TK9V25

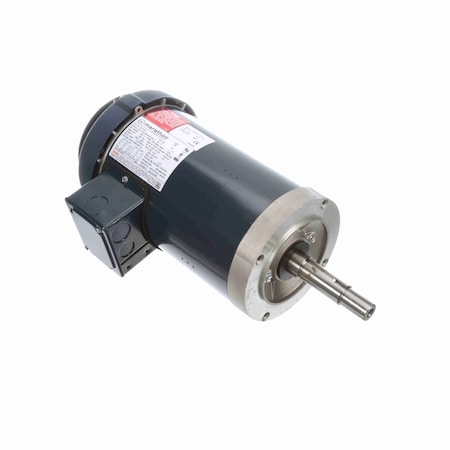

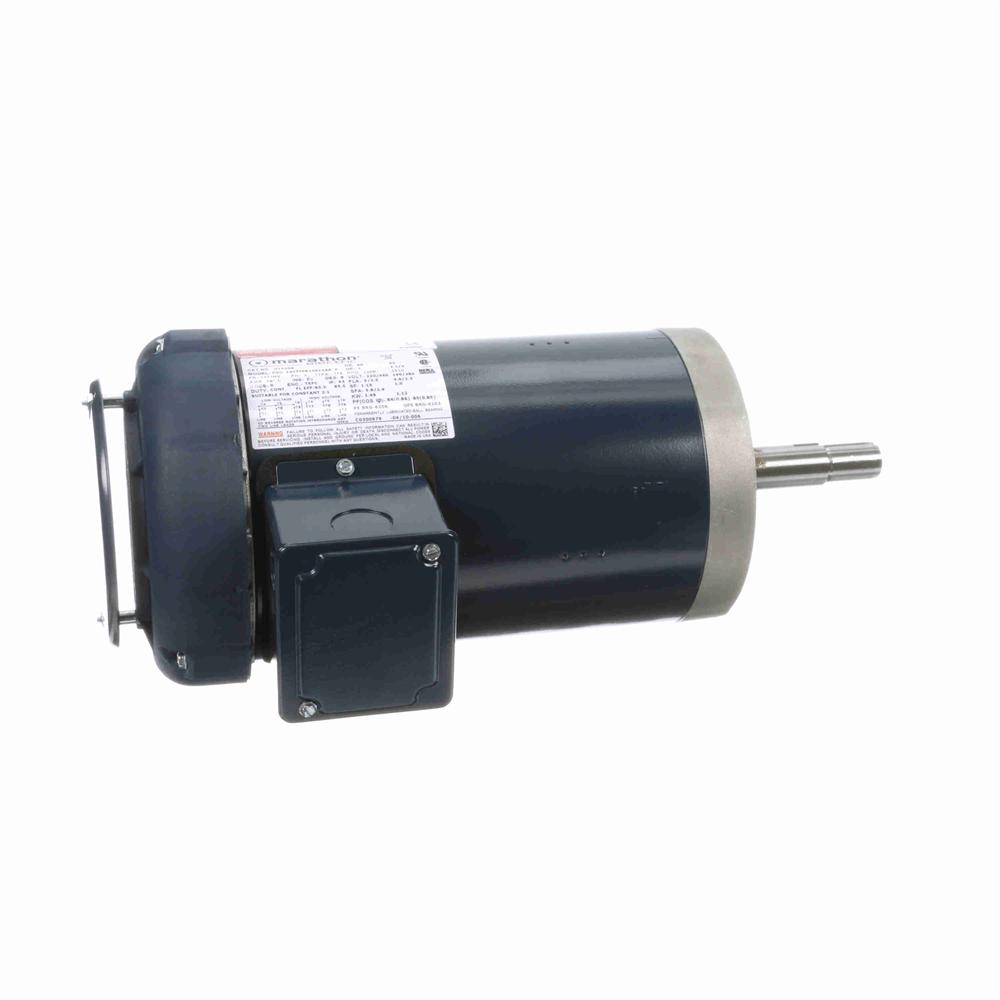

2 hp 3600 RPM 145JMV Frame 230/460V TEFC Marathon Close Coupled Pump Motor # GT5106

2 hp 3600 RPM 145JMV Frame 230/460V TEFC Marathon Close Coupled Pump Motor # GT5106zoom

Attributes

Key Value
Amps5/2.5
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
CompositionRolled Steel
Country of Origin (subj.United States
Duty CycleContinuous
Efficiency0.855
Efficiency %85.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame145JMV
Frequency50 Hz, 60 Hz
Gross Weight0 lbs
Horsepower2 hp
HP2
Hz60
Insulation ClassF
Item NumberGT5106
Kilowatts1.5 kW
ManufacturerMarathon Electric
Manufacturer Model #145TTFR16012
Manufacturer Part Number145TTFR16012
Maximum Ambient Tempera.40? C
Motor Shell Length9.06"
MountingFace
Mounting OrientationHorizontal/Vertical Sha.
Mounting TypeRound
NEMA Frame145JMV
Net Weight0 lbs
Number of Poles2
Number of Speeds1
Overall Length17.29 ", 17.29"
Phase3
Product TypeThree Phase
RotationReversible
RPM3500, 3,500 RPM, 3400 -.
Service Factor1.15
Shaft Diameter0.88 ", 7/8"
Shaft Length4.25"
Ship Weight49 lbs.
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230, 460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoGT5106-MARA136.1112Marathon Electric136.11 @ 2
thumbzoomMRO Supply2271115136.8312Marathon Electric136.83 @ 2
thumbzoomapexindustrialautomation.comGT5106137.9215Marathon137.92 @ 2
thumbzoomemotorpro.comGT5106498.9912Marathon49.0498.99 @ 2
thumbzoomelectricmotorwholesale.comGT5106502.012MARATHON502.0 @ 2
thumbzoomZoroG7037647943.4912Marathon943.49 @ 2
